 Lamination Machine

Semi-auto Lamination Stacking Machine For Lithium ion Battery

  • Model Number:

    TMAX-DP-150
  • Input Power:

    4KW
  • Dimension(L*W*H):

    1250*1200*1850mm
  • Net Weight:

    800kg
  • Compliance:

    CE Certified
  • Warranty:

    Two Years limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20 day
Product Details

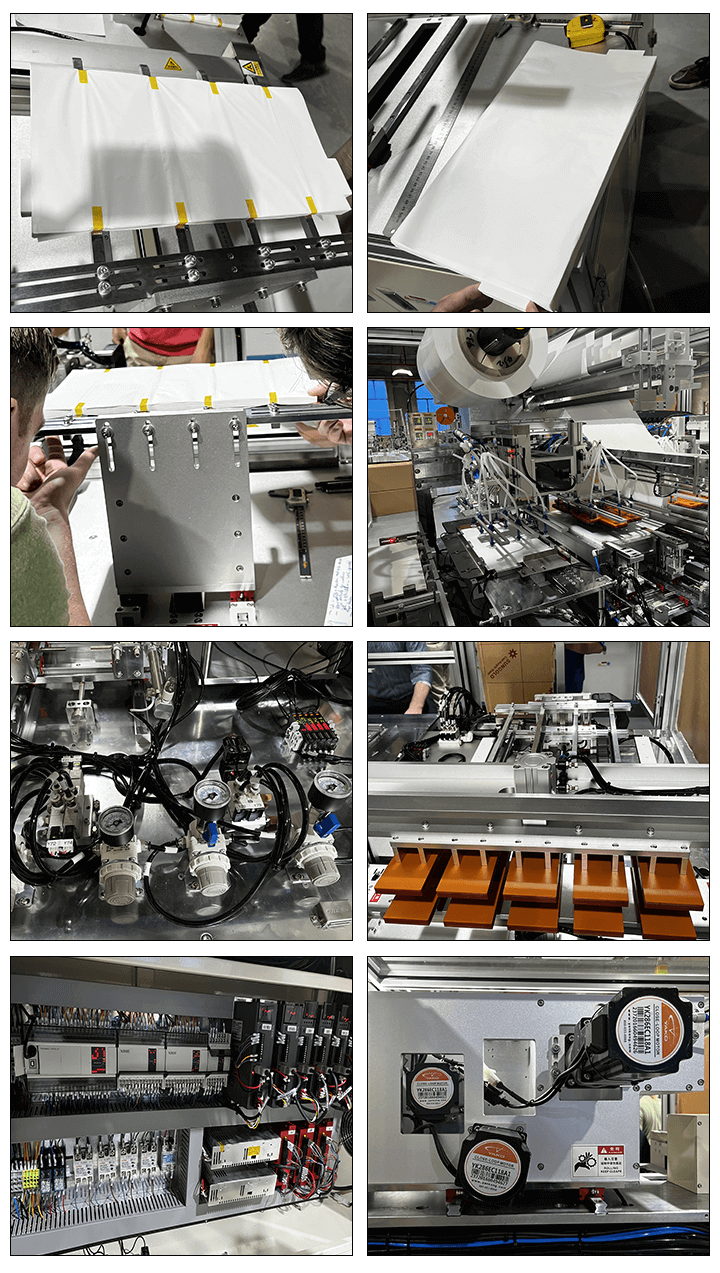

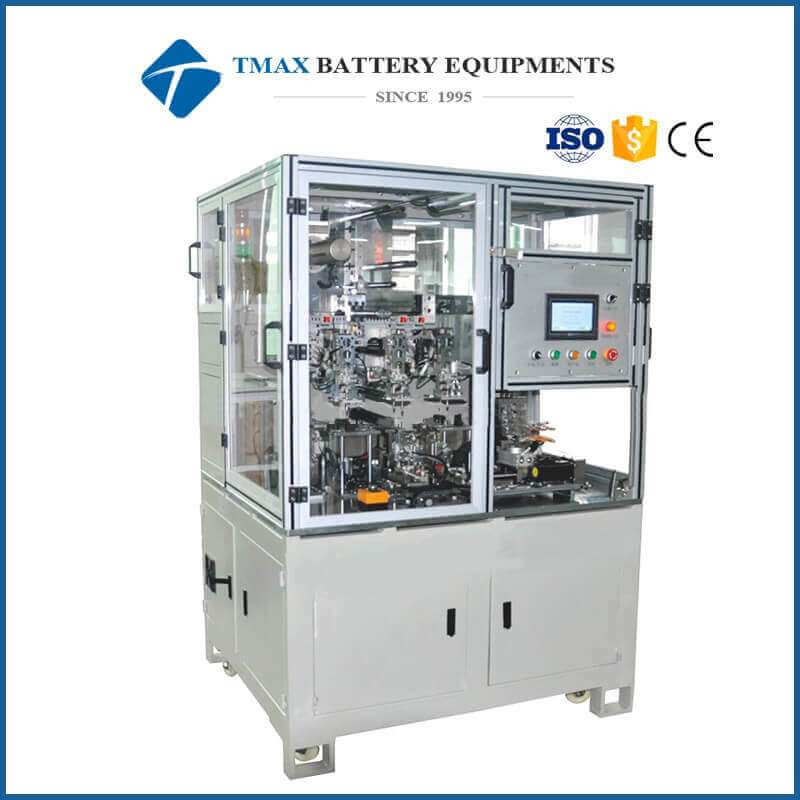

TMAX-DP-150 is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.

Advanced Features:

1 PLC Touch Screen Control with easy condition setting.

2 Continuous "Z" fashion stacking with a separator .

3 Auto electrode pick-up & stacking via vacuum suction manipulator.

4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on lamination platform, laminated with automatic clamping device on stage.

5 Unreeling rotors for separator film feeding.

6 Auto-tension control for separator film delivery.

Model

Semi auto stacking machine  TMAX-DP-150

Suitable battery size

Thickness H (mm)

5-20

Width W (mm)

30-90

Length L (mm)

80-150

Tab length Q (mm)

Q≤20

Tab width (mm)

≤20

Technology parameter

Stacking speed

1.3-1.5s/pcs

Registration accuracy

±0.5mm

Stacking quantity

Can be set

Percent of pass

≥98%

Power

4kw

Weight

800kg

Dimension (L*W*H)

1250*1200*1850mm

Materials size

Electrode

Length : 80-150mm

Width : 30-90mm

Thickness : 0.07-0.25mm

Tab

Length : ≤20mm

Width : 8-20mm

Separator

Length : in roll

Width : 90-150mm

Thickness : 0.02-0.04mm

Inner diameter : φ76.2mm

Max out diameter : φ300





                  Lamination Machine

 Pouch Cell Production Line






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Automatic stacking machine


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
