Planetary Ball Mill

4L Nano Scale Horizontal Planetary Ball Mill Machine

  • Model Number:

    TMAX-FCS-05
  • Input Power:

    0.75KW
  • Dimension(L*W*H):

    720*480*500mm
  • Max. Loading Capacity:

    4L It Can Be Customized
  • Net Weight:

    140KG
  • Compliance:

    CE Certified
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

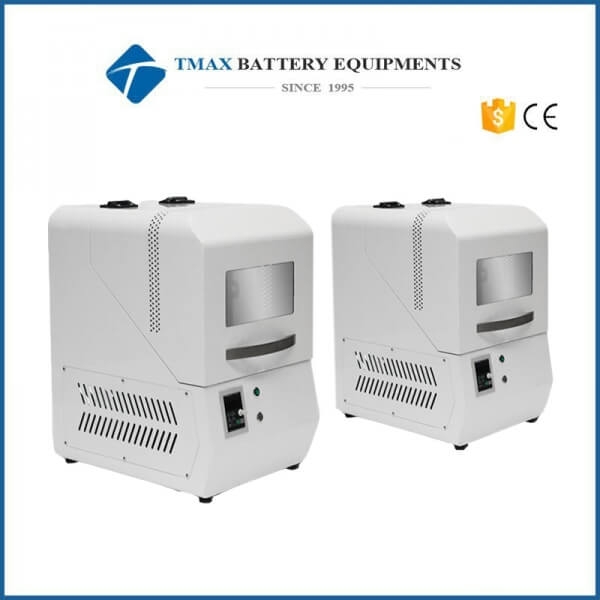

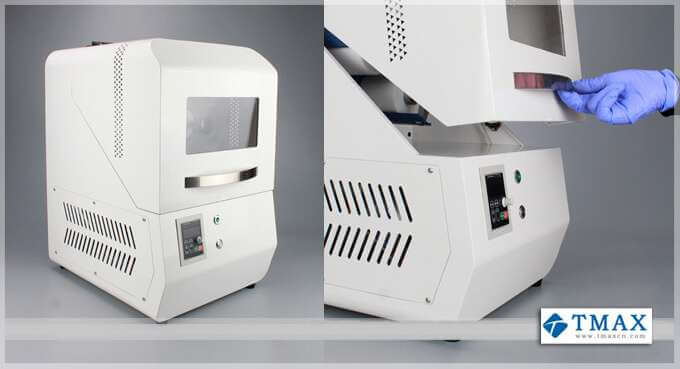

 4L Nano Scale Horizontal Planetary Ball Mill Machine


SPECIFICATIONS

Optimal for material type:

medium-hard, soft, brittle, tough, moist

Item No.:

TMAX-FCS-05

Max. feed size:

10mm

Final fineness:

<100nm

Min. sample quantity:

10ml

Max. sample quantity:

1800ml

Rotational speed (disk):

50-400r/min

Rotational speed (jars):

100-800r/min

Transmission ratio:

1:-2

Transmission standard:

CE

Grinding modes:

16 modes programmable

Grinding tools:

grinding jars and grinding balls

Bi-direction grinding:

yes

Continuously grinding

00:01:00 - 99:59:59

Paused interval:

00:01:00 - 99:59:59

Emergency stop:

yes

Power off memory:

yes

Overload protection

Yes

Milling chamber lighting:

No

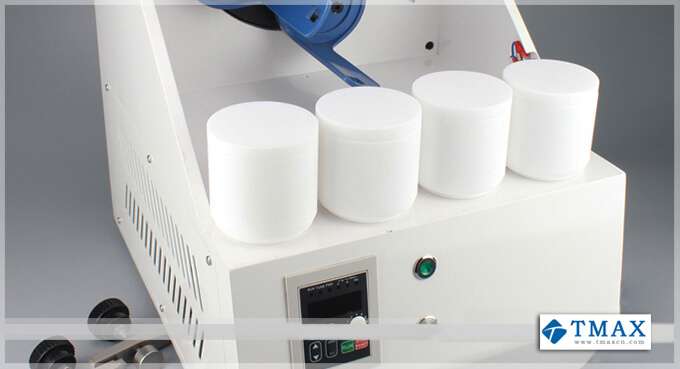

Number of milling samples:

4 simultaneously

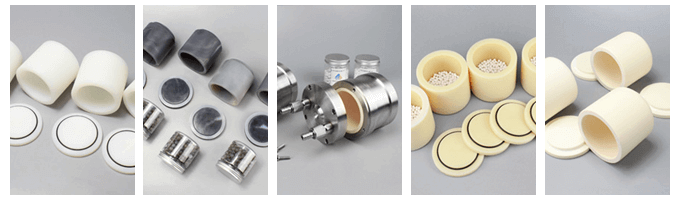

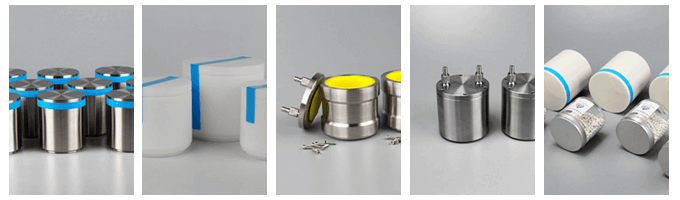

Materials of the grinding jars:

SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC

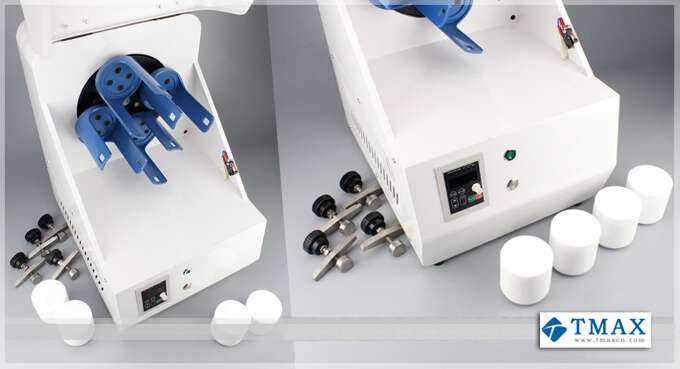

Number of working stations:

4

Ball mill type:

horizontal

Compatible grinding jars:

50ml / 100ml / 250ml / 500ml / 1000ml

Materials of milling balls:

SS, agate, zirconia, alumina, nylon, PTFE

Grinding ball diameter:

3/5/10/15/20mm

Compatibal ball weight

400-2000g

Grinding process:

dry /wet grinding

Vacuum grinding:

yes

Low temperature grinding:

yes

Grinding in inert gas:

yes

Temperature detection:

yes ( special accessories)

Pressure detection:

yes ( special accessories)

Electrical details:

100-120V/200-240V AC ,50-60Hz, 750W

Plug types:

GB/EU/US/UK standard

Net weight:

140kg

Dimensions (W x D x H):

720*480*500mm

Noise level:

60dB

IP rank:

IP60

Product standard:

CE

Patent:

design patent/ noise improve patent

Accessories:

user manual, warranty card


Material Data for Grinding Jars/Balls

Material

Main component

Density (g/cm3)

Abrasion resistance

Use for material to be ground

Agate

SiO2

2.65

Good

Soft to medium-hard samples

Sintered corundum

Al2O3

3.8

Fairly good

Medium-hard, fibrous samples

Silicon nitride

Si3N4

3.25

Excellent

Abrasive samples, iron-free milling

Zirconium oxide

ZrO2

5.7

Very good

Fibrous, abrasive samples

Stainless steel

Fe –Cr –Ni

7.8

Fairly good

Medium-hard, brittle samples

Tempered steel

Fe –Cr

7.65

Good

Hard, brittle samples

Tungsten carbide

WC

14.95

Very good

Hard, abrasive samples

Polypropylene disposable jar

MC/PA/PTFE/PU/HDPE/PP

**

Good

For homogenisation
