The TMAX-KJ05O is a fully automatic 5-station constant temperature dip coater, designed as a millimeter-level multi-station precision constant temperature lifting device for research institutions. It is primarily suitable for preparing multi-layer liquid-phase thin films of the same sample in different liquid phases. Compact in structure, easy to operate, and convenient to transport, it has been widely adopted in universities, research institutes, and industrial laboratories.

Features

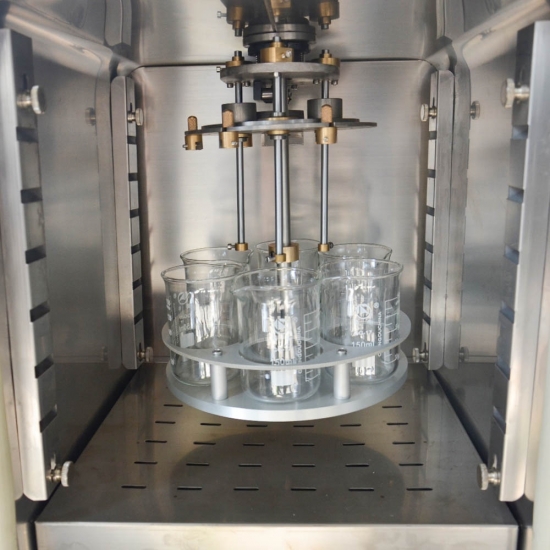

· Multi-Station Conversion: Equipped with 5 liquid material stations, supporting up to 2 samples for a maximum of 5 different liquid material dip coatings (multi-layer). The liquid material stations can be automatically switched.

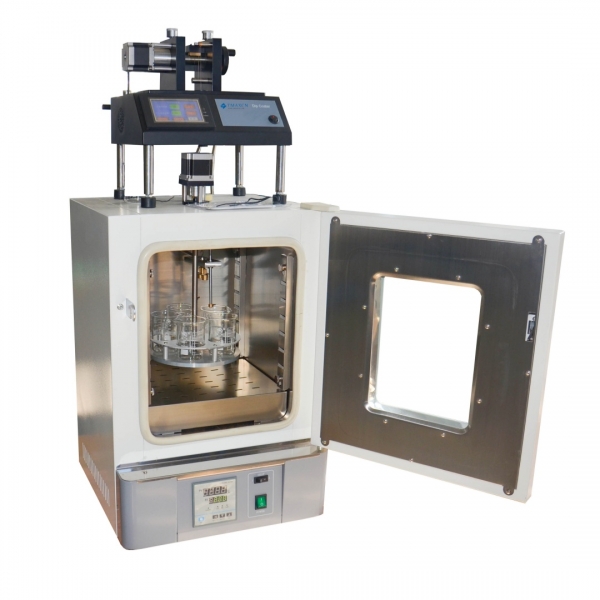

· Working Environment: Features a constant temperature heating chamber, allowing operation at room temperature or under set constant temperature conditions to meet temperature-sensitive process requirements.

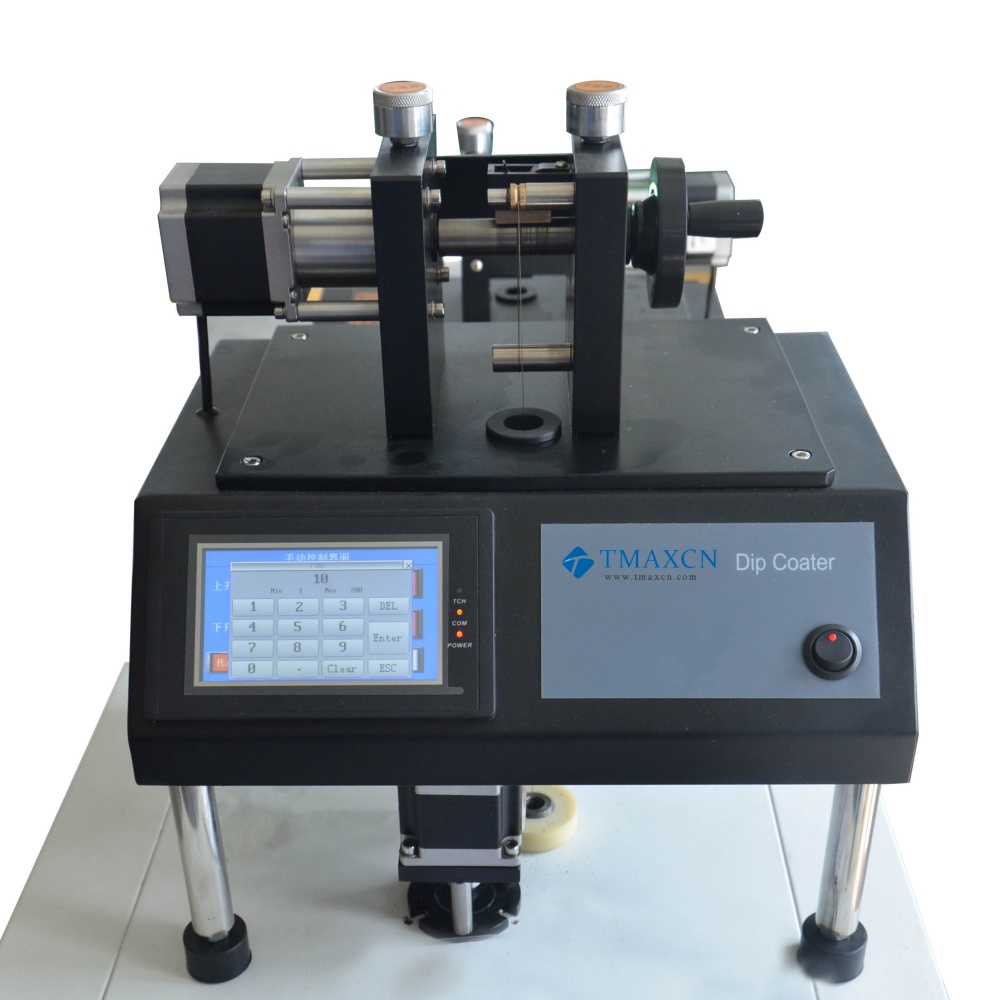

· User-Friendly Operation: Utilizes a 4.3-inch color touchscreen with an intuitive interface for ease of use.

· High-Precision Control: PLC programming combined with suspended wire conduction technology effectively reduces vibration interference.

· Space Optimization: Compact design with high cost-performance ratio, saving laboratory space.

Technical Parameters

· Power Supply: Single-phase AC220V/110V, 50Hz/60Hz

o Lifting unit power: ~50W

o Heating chamber power: ~800W

· Operating Environment:

o Temperature: 25±15℃

o Humidity: 55%±10% RH

o Dust-free, vibration-free, no flammable, explosive, or corrosive gases

· Type: Program-controlled constant temperature type (with heating chamber)

· Drive Motor: High-precision stepper motor

· Speed Adjustment Range: 1–200 mm/min

· Dwell Time: 1–999 s

· Drying Time: 1–999 s

· Lifting Stroke: 1–75 mm

· Lifting Cycles: 1–20 times

· Lifting Station: 1 (can hold 1–2 sample substrates)

· Effective Immersion Depth: ≤60 mm

· Sample Substrate Dimensions: L75mm × W25mm × H2.5mm

· Maximum Load Capacity: ≤100 g

· Liquid Cup Stations (Immersion Stations): 5 (can hold 5 different liquids simultaneously)

· Liquid Cup Specifications (Beaker): Diameter Φ60mm, capacity 150 ml

· Liquid Cup Tray Load Capacity:

o Total load: ≤3000 g

o Single station: ≤500 g

· Display & Control: 4.3-inch color touchscreen

· Heating Chamber:

o Temperature range: RT (room temperature) to +100℃

o Temperature control/setting method: Dual digital tube PID / touch-sensitive four-button setting

o Heating timer: 0–9999 minutes or hours

o Internal dimensions: ~L310mm × W310mm × H310mm (~30L, subject to actual product)

· External Dimensions:

o Heating chamber: ~L455mm × W500mm × H723mm (subject to actual product)

o Equipment (including heating chamber & lifting unit): ~L455mm × W500mm × H1060mm (subject to actual product)

· Weight: ~45 kg (including heating chamber & lifting unit, subject to actual product)
