Dip Coater

Nano-Level Constant Temperature Dip Coater With Oven

  • Model Number:

    TMAX-KJ01NO

  • Dimension(L*W*H):

    440mm(L) x 460mm(W) x 1040mm(H)

  • Net Weight:

    57 kg

  • Compliance:

    CE Certified

  • Warranty:

    Two Years limited warranty with lifetime support

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

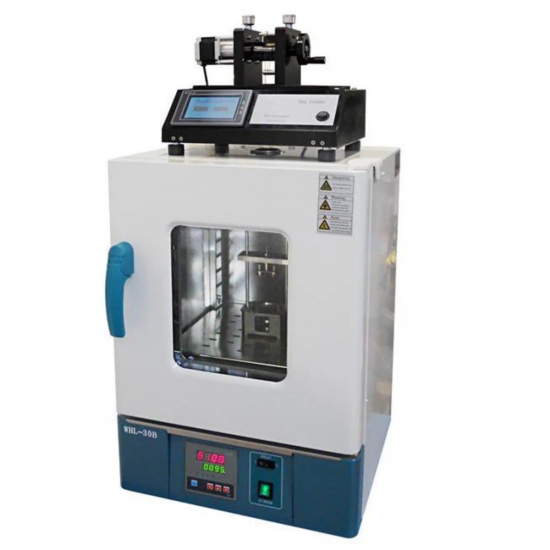

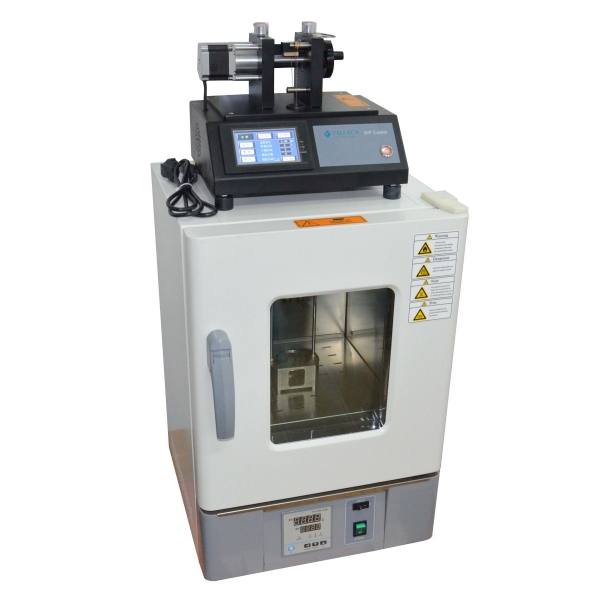

Nano-Level Constant Temperature Dip Coater With Oven



Product Introduction

The TMAX-KJ-01NO Nano-Level Constant Temperature Dip Coater is a CE-certified precision instrument designed for liquid-phase dip-coating experiments at the nanometer scale. It is an indispensable tool for thin-film growth research in academic and industrial laboratories.

This system features a PLC-programmable control unit paired with a high-precision stepper motor, ensuring smooth and accurate vertical motion via a suspended wire transmission mechanism. Samples are immersed in liquid-phase thin-film materials and withdrawn at controlled speeds to deposit uniform coatings with adjustable thickness.

Key operational modes:

· Single Cycle: One immersion/withdrawal sequence.

· Full Cycle: Programmable repeated cycles (1–20×).

User-defined parameters include:

· Lifting/immersion speeds (1–500 nm/s)

· Dwell time (1–999 s)

· Drying time (1–999 s)

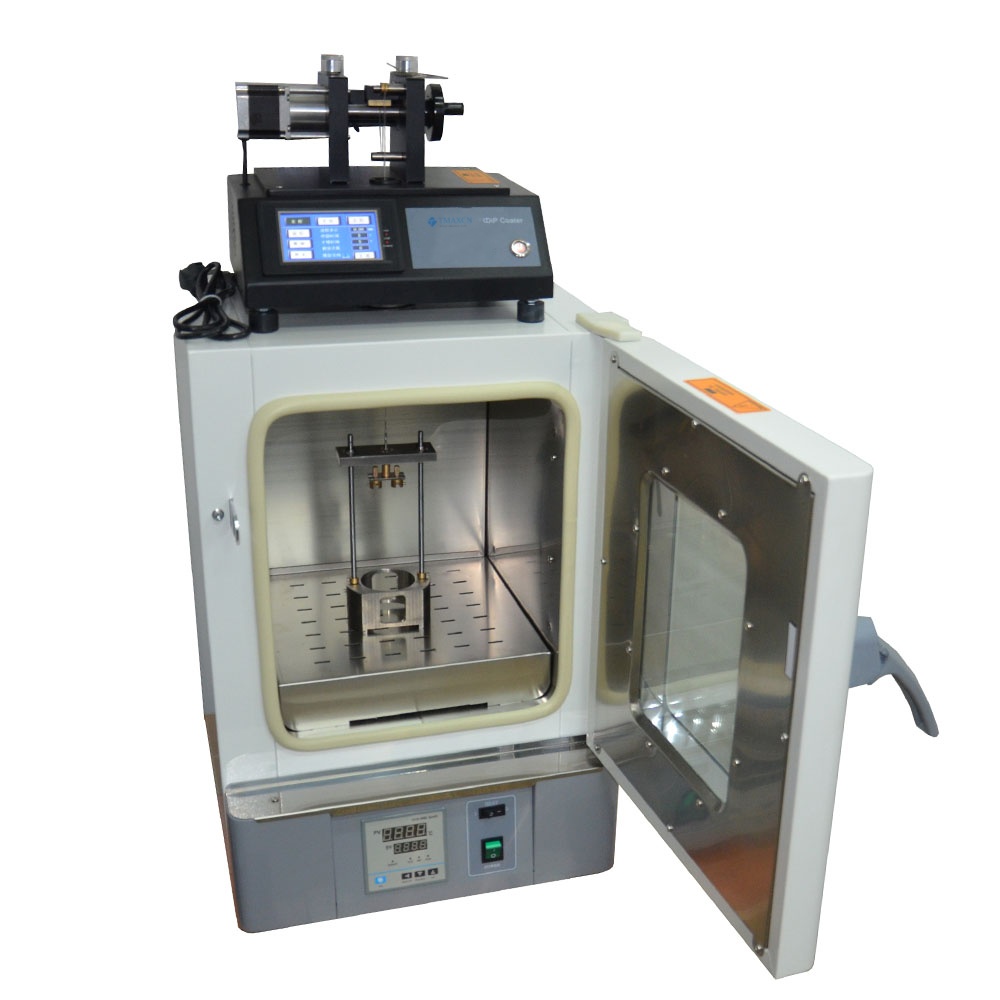

The integrated constant-temperature heating chamber (RT to +100°C) ensures process stability. Compact and user-friendly

Key Features

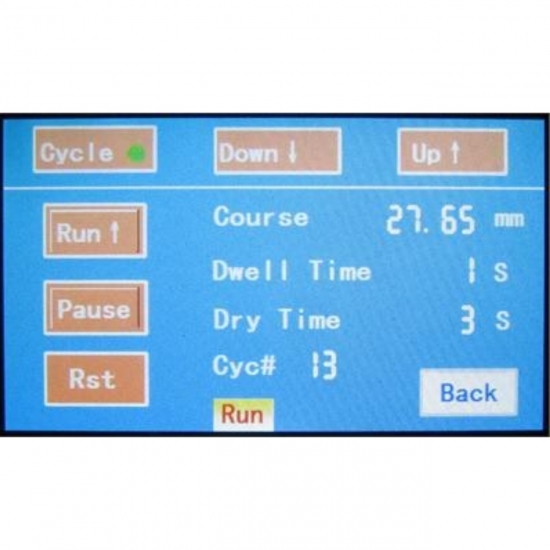

· 4.3-inch color touchscreen with an intuitive interface, suitable for beginners.

· Compact design, high cost-performance ratio, and space-saving for laboratory use.

· PLC-controlled high-precision stepper motor drive with suspended wire transmission for vibration reduction.

Technical Parameters

Category

Specifications

Installation Requirements

1. Power Supply: AC220V 50/60Hz, 10A standard socket with proper grounding.



2. Ambient Conditions: Temperature 25°C ±15°C, Humidity 55%Rh ±10%Rh.

Main Parameters

1. Operating Voltage: DC24V 3.75A (Included: AC100~240V power adapter)



2. Power Consumption: 50W



3. Type: Programmable—Constant Temperature (with heating chamber)



4. Drive Motor: High-precision stepper motor



5. Speed Range: 1–500nm/s



6. Dwell Time: 1–999s



7. Drying Time: 1–999s



8. Lifting Stroke: 1–75mm



9. Coating Cycles: 1–20 times



10. Max Immersion Depth: ≤60mm



11. Load Capacity: <100g



12. Sample Substrate Size: 75mm × 25mm × 2.5mm (2 pieces simultaneously)



13. Control Interface: 4.3-inch color touchscreen



14. Heating Chamber Specifications:



- Operating Voltage: AC220V 50/60Hz



- Rated Current: 3.6A



- Heating Power: 0.8KW



- Temperature Range: RT to +100°C



- Temp. Control/Setting: Dual-digit PID display, 4-button setting



- Timer: 0–9999 minutes/hours



- Internal Dimensions (Capacity): 310mm × 310mm × 310mm (30L)



- External Dimensions: 428mm × 500mm × 723mm



15. Product Specifications:



- Dimensions: 428mm × 500mm × 995mm



- Weight: ≈50kg (including heating chamber)

Notes

1. Default power adapter specifications: Input: AC100-240V 50/60Hz, Output: DC24V 3.75A. Actual power supply must match the label on the device.



2. Customizable AC110V 50/60Hz heating chamber available.

Standard Accessories

No.

Item

Quantity

1

Coating Clamp

1 set

2

Material Cup

1 pc

3

Lifting Wires

3 pcs
