 De-ironing Filtration System

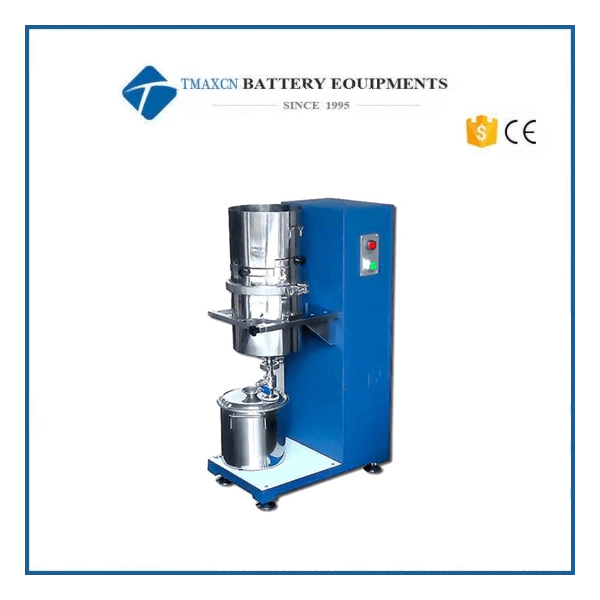

5L Magnetic De-ironing Filtration Machine for Battery Slurry Before Coating

  • Model Number:

    MSK-FT02
  • Dimension(L*W*H):

    500mm(L) x 300mm(W) x 850mm(H)
  • Net Weight:

    130lb
  • Compliance:

    CE Certified
  • Warranty:

    2 years
  • Place of Origin:

    China
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
Product Details

5L Magnetic De-ironing Filtration Machine for Battery Slurry Before Coating

Features

MSK-FT02 is a CE Certified magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.


Specifications

Structure

Containers Made of Stainless Steel 304

Voltage supply

Input:110VAC - 240VAC universal power
Output to machine:  24VDC via a CE, UL-certified adapter for worldwide use

Power

50W

Working Temperature

<=40°C

Process Capacity

5L

Magnetic Field Strength

8000 G

Filter

3 mesh filters: 80, 100, 120
Optional 150,200,250,325 mesh size is available upon an email request

Slurry Viscidity

<=15000CP

Humidity

0-90%RH

Deironing Function

8000-10000 GC

Overall Dimensions



500mm(L) x 300mm(W) x 850mm(H)

Shipping Weight & Dimension

130 lbs, 48"x40"x43"

Compliance

CE Certified

CE,  TUV, UL, CSA  certified in power supply

Machine is safe 24VDC input which can be used without any safety certification


Warranty

One year limited with lifetime support

Parts rusted without regular cleaning and maintenance are not covered by the warranty

STANDARD PACKAGE

Item No.

Product Name

QTY

MSK-FT02

Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry

1

FT02-Tank

Receiving tank for Battery Electrode Slurry

1

FT02-Container

Slurry Container

1

FT02-FILTER

80,100,120 Filter mesh (3 pcs)

1 SET

UL adaptor

UL certified adaptor

1

Hex wrench

4mm Hex wrench

1

Screw-bolt

Screw-bolt for taking out Magnetic rods

1

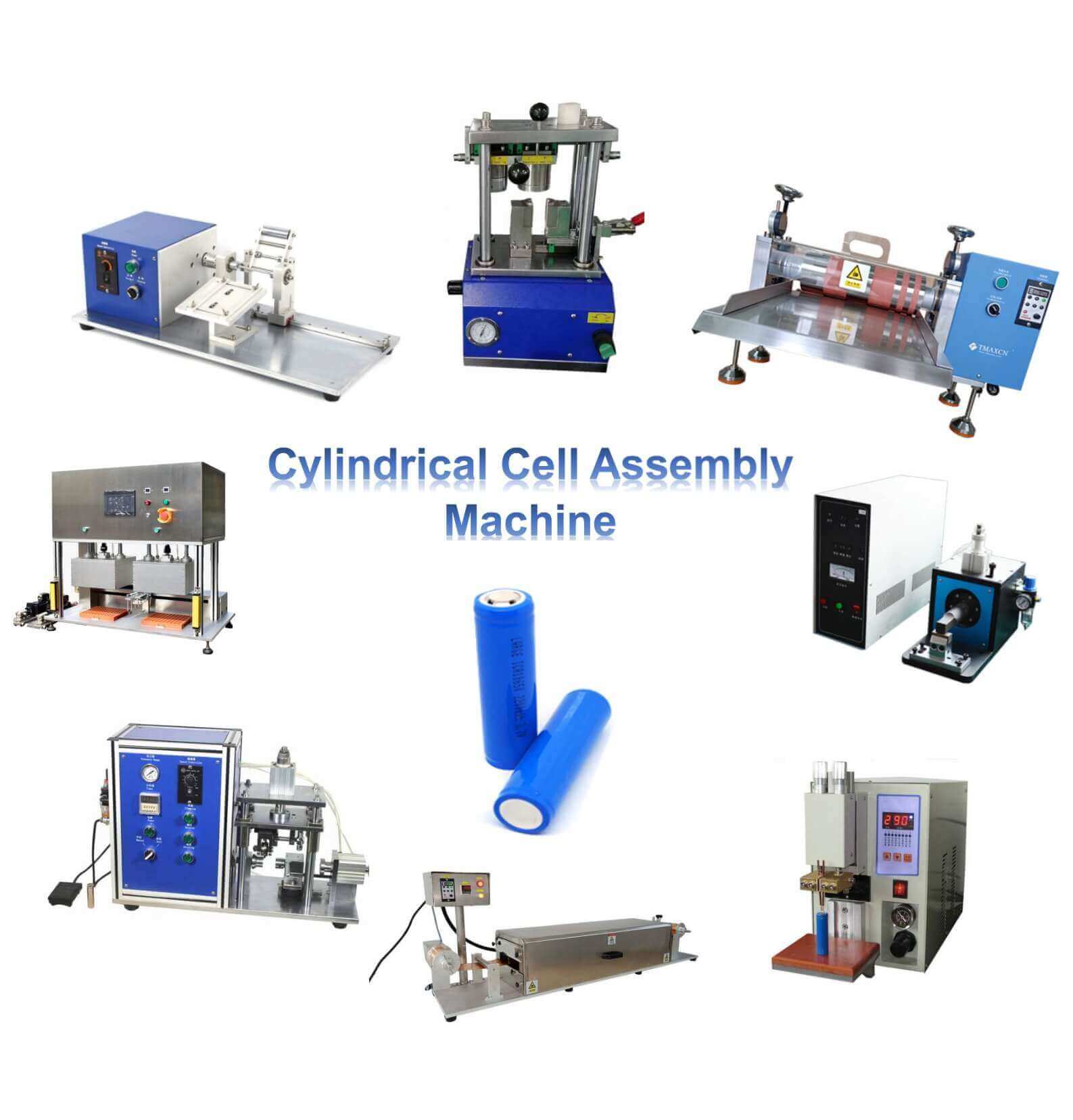

Cylindrical Cell Machine
