Battery Tester

5V2A 512 Channel Li-ion Battery Charging and Discharging Tester for Cylindrical and Pouch Cell Testing

  • Model Number:

    TMAX-S1X-512/2A
  • Dimension(L*W*H):

    1600mm (W) × 550mm (L) × 1840mm (H)
  • Compliance:

    CE Certified
  • Warranty:

    2 Year limited warranty with lifetime support
  • Place of Origin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

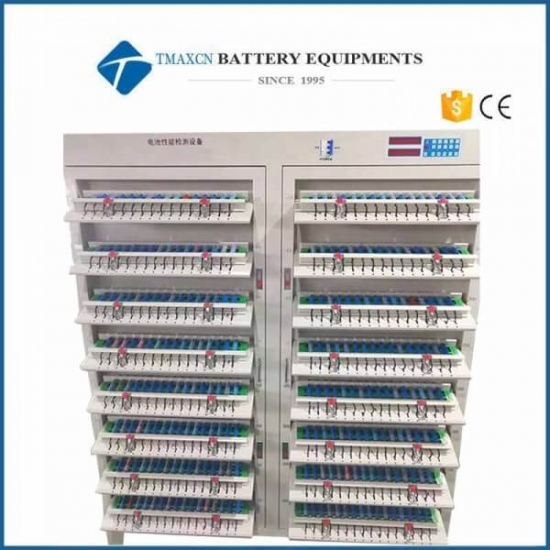

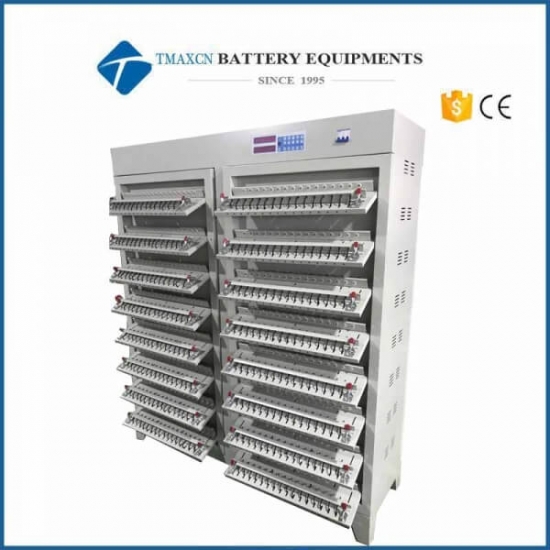

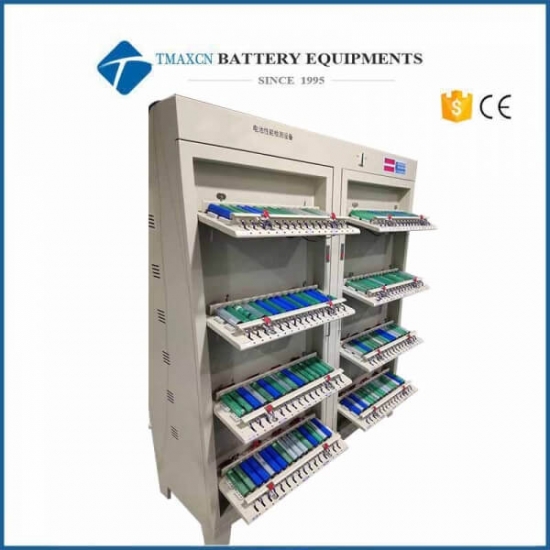

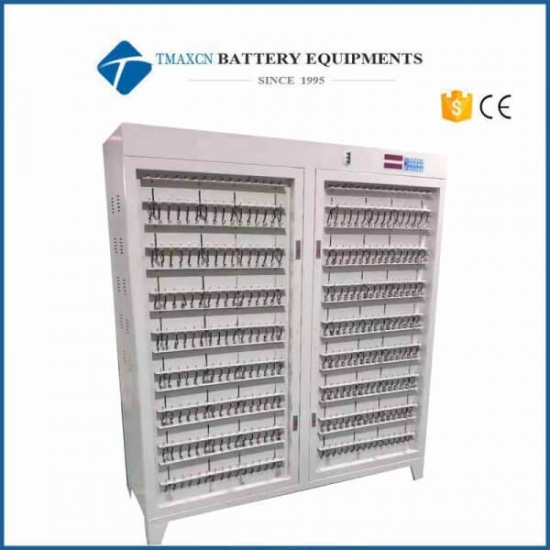

5V2A 512 Channel Li-ion Battery Charging and Discharging Tester



Features:

1. Each device can carry out constant current and constant voltage charging and constant current discharge test on 512 batteries meeting the voltage range.


2. Adopt the constant current constant voltage power supply of the invention patent, constant current to constant voltage switching without impact, especially suitable for the charging requirements of lithium-ion battery.


3. The AVR single-chip computer is used as the control center of the equipment, and the peripheral sampling circuit is used. The equipment can be controlled by the superior computer. When the computer is connected, the complete charge discharge curve of all channels can be saved, or it can be separated from the superior computer. Through the operation of the control panel, the constant current and voltage charging, constant current discharge test, time sorting and other work can be completed.


4. Each battery has an independent constant current and voltage source, and the self-made circuit does not affect each other.


5. Detect the voltage of each battery in real time. When charging, charge at constant current first. When the battery voltage reaches the set value, it will smoothly switch to constant voltage charging. When the set time or current termination conditions are met, the charging will end. During constant current discharge, when the battery voltage is lower than the set value, the discharge is ended and the corresponding battery indicator light is on.


6. It has the function of power-off protection, and can continue to operate after receiving the original workflow


7. The power tube is 50N06, which is suitable for batteries requiring low discharge voltage, such as lithium iron phosphate battery


8. The upper computer can set 32 working step parameters and 256 cycles, and each upper computer can be connected with 1-10 sets of single-chip system (less than 10 sets are recommended).


Supporting Software Functions:

A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;

B) Battery capacity indication of any section (up to 100 sections);

C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;

D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;

F) Set operator authority and operate in different levels;

Display charge discharge curve and cycle chart;


Main Technical Parameters

Number of device channels

The whole machine has 512 channels in total

Workflow control mode

Whole cabinet control

Charging mode

Constant current and constant voltage

Charging cut-off conditions

Voltage, current, time, capacity

Discharge mode

Constant current

Discharge cut-off conditions

Voltage, time and capacity

Sampling inspection cycle

≤10s

Voltage measurement range

0~5V

Resolution: 1mV

Battery voltage range

Charge0~4.5V

Discharge4.5~2.5V

Constant voltage range

3~4.5V

Voltage accuracy

±0.05%RD+0.1%FS

Current range

Charge: 0.010-2A

Discharge: 0.010-2A

Resolution: 1mA

Current accuracy

±0.1%RD+0.1%FS

Time frame

Any setting within 0 ~ 30000 minutes, the time unit is min

Time accuracy

≤±0.1%

Fixture type

Four wire fixture

Fixture adjustable height

10mm-90mm

Support battery

Prismatic cell/cylindrical battery

Working power supply

AC380V±10%, 50HZ,

Power consumption: 9.5KW(three-phase four wire system)

Communication mode

RS485Baud rate 57600

Overall dimension

1440mmL×500mmW×1840mmH

work environment

Temperature0-40℃relative temperature≤85%

Full load operating current

The maximum phase line: 15A,

The maximum zero line: 3A

Equipment starting current

The closing moment of air switch is about 60A

Machine weight

About 250KG
