Battery Tester Equipment

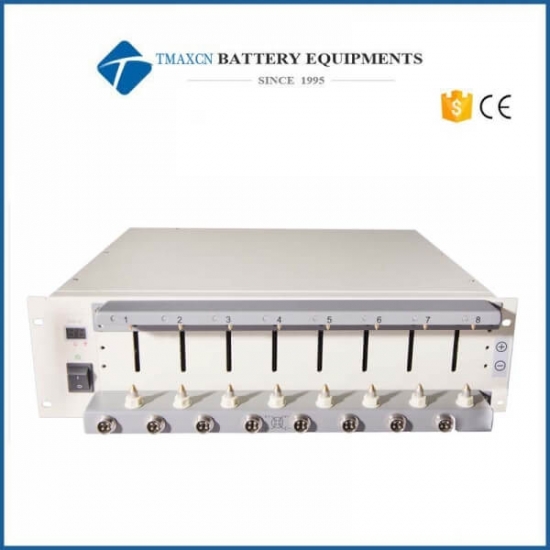

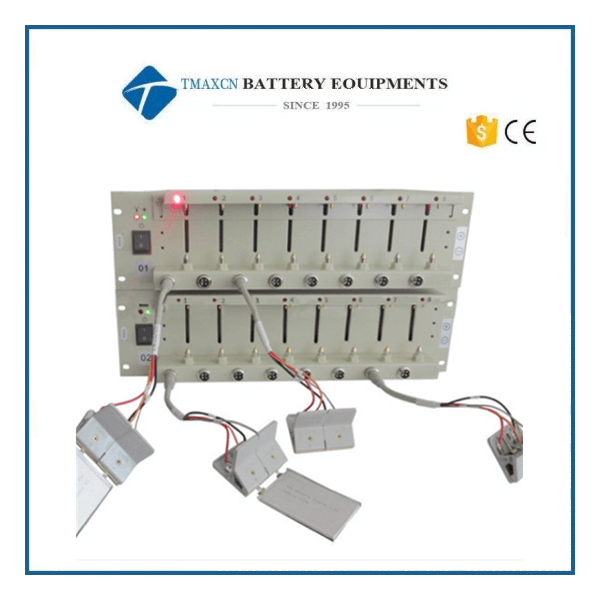

5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment

  • Model Number:

    TMAX-BTS-5V6A
  • Input Power:

    224W
  • Dimension(L*W*H):

    485* 508*263mm
  • Net Weight:

    11.5 kg (26 lbs)
  • Compliance:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

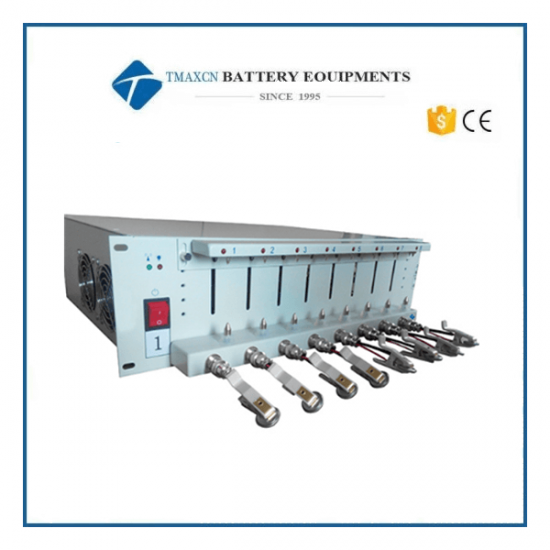

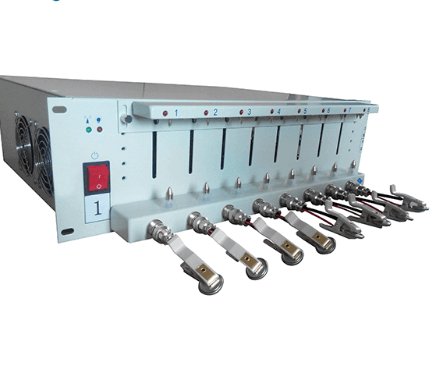

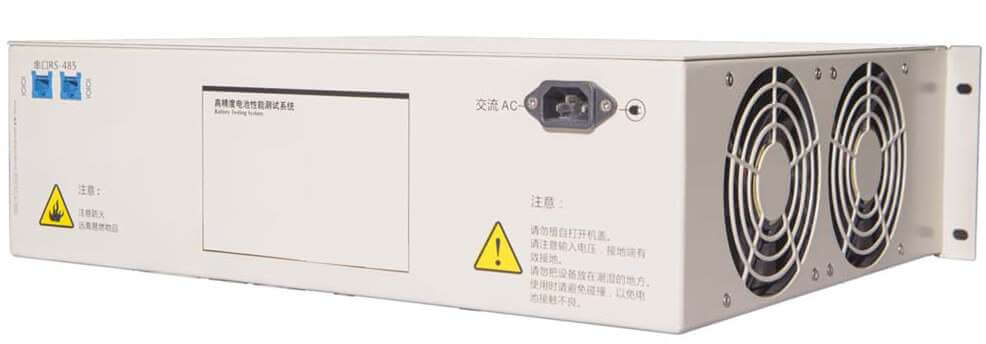

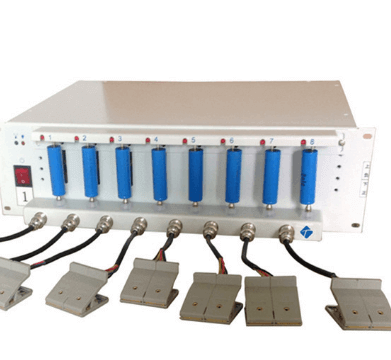

5V1A 3A 5A 6A 8 Channel Battery Analyser Battery Capacity Tester  for Cylindrical or Pouch Cell


Features

1. TMAX-BTS-5V6A Battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 12.0 mA to 6000 mA, up to 5V.

2. This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc. Our company manufactures various types of Li ion battery equipment. We welcome your contacts from any place of world.


Specifications

Project index

Parameter index

Input Power

AC 220V ±10% / 50Hz

resolution

AD16bitDA16bit

Input Resistance

≥1MΩ

Input Power

425W

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Per Channel Voltage Range

Charge25mV~5VDischarge1.0V~5V

Accuracy

± 0.05% of  FS

Stability

0.05% of  FS

Current

Per Channel Output Current Range

Range10.5mA~0.1ARange20.1A~6ARange3: 3A-6A

Accuracy

± 0.05% of  FS

CV cut-off current

Range 1: 0.2mA  Range2: 6mA; Range3: 12mA;

Stability

0.05% of  FS

Power

Per Channel Output Power

30W

Stability

± 0.1%  of  FS

Time

Current Response Time

The Current gets to 6A Hardware Response Time is 1ms

Step Time Range

0.1s≤Single Step Time Range≤365*24 h

Time Form Support 000000(hmins)

Data Recording

Record Condition

Time△t100ms

Voltage△U10mV

Current△IRange 1: 0.2mA  Range2: 12mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current ChargeConstant Voltage Charge

CC-CV Charge 、CP-Charge

End Condition

VoltageCurrentRelative TimeCapacity-V

Discharge

Discharge Mode

Constant Current Discharge  CP-D CR-D

End Condition

CurrentCurrentRelative TimeCapacity-V

Pulse Model

Charge

Constant CurrentConstant Power

Discharge

Constant CurrentConstant Power

Min Pulse Width

500ms

Pulse Number

Single Pulse Step Support 32 different Pulse

Charge r To Discharge

One Pulse Step Can Support Continuous Charge And Discharge Change

Stop Condition

VoltageRelative Time

DCIR Testing

Support Custom Access Point And Count The DCR

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop FunctionMax Support 3 Layers

Protection

Software Protection

Power-down Data Protection

Setting Protection ConditionSetting ParameterLow Voltage limitUpper Voltage limitLow Current limitUpper Current limitDelay Time

Voltage and Current Testing Sample

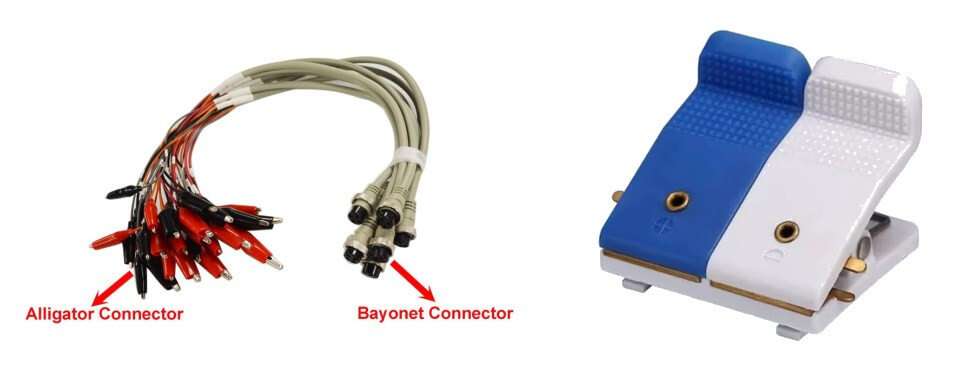

4-wire connecting

Noise

<85dB

Data Management

MySQL Database

Communication Means

TCP/IP Protocol

Data Output

EXCELTXT

Communication Interface

Ethernet Port

Main Channels

8

Dimensions

3UW*D*H480*730*130mmper unit

the total rack is 760*660*1960mm . The gross weight  is 180KG

Additional Function

Test: Temperature; voltage

Temperature range: minus 25C-110C( Thermistor)

Temperature accuracy:± 1C

Temperature resolution0.1C

Voltage range:-5V-5V

Voltage accuracy:± 0.1%  of  FS



Can set the parameter: Upper and lower limit of voltage; Upper and lower limit of temperature ;single cell voltage difference



Equipment Working Environment

Project index

Parameter index

Working Temperature Range

0℃~40

Storage Temperature Range

-10℃~45℃

Working Environment Relative Humidity Range

30% ~ 80% RH

Storage Environment Relative Humidity Range

30% ~ 90% RH



 Related Machine

Cylindrical Cell Making Machine

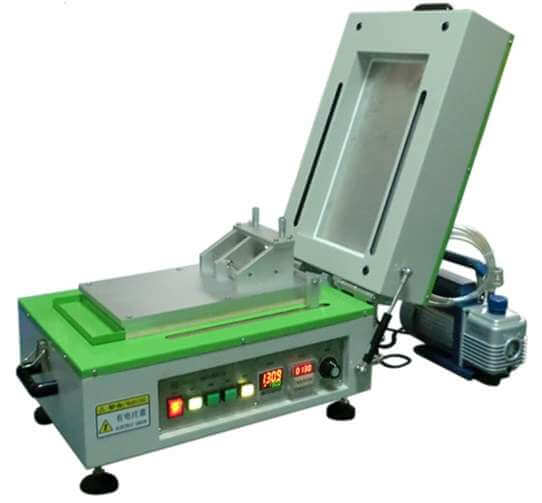

Coating Machine

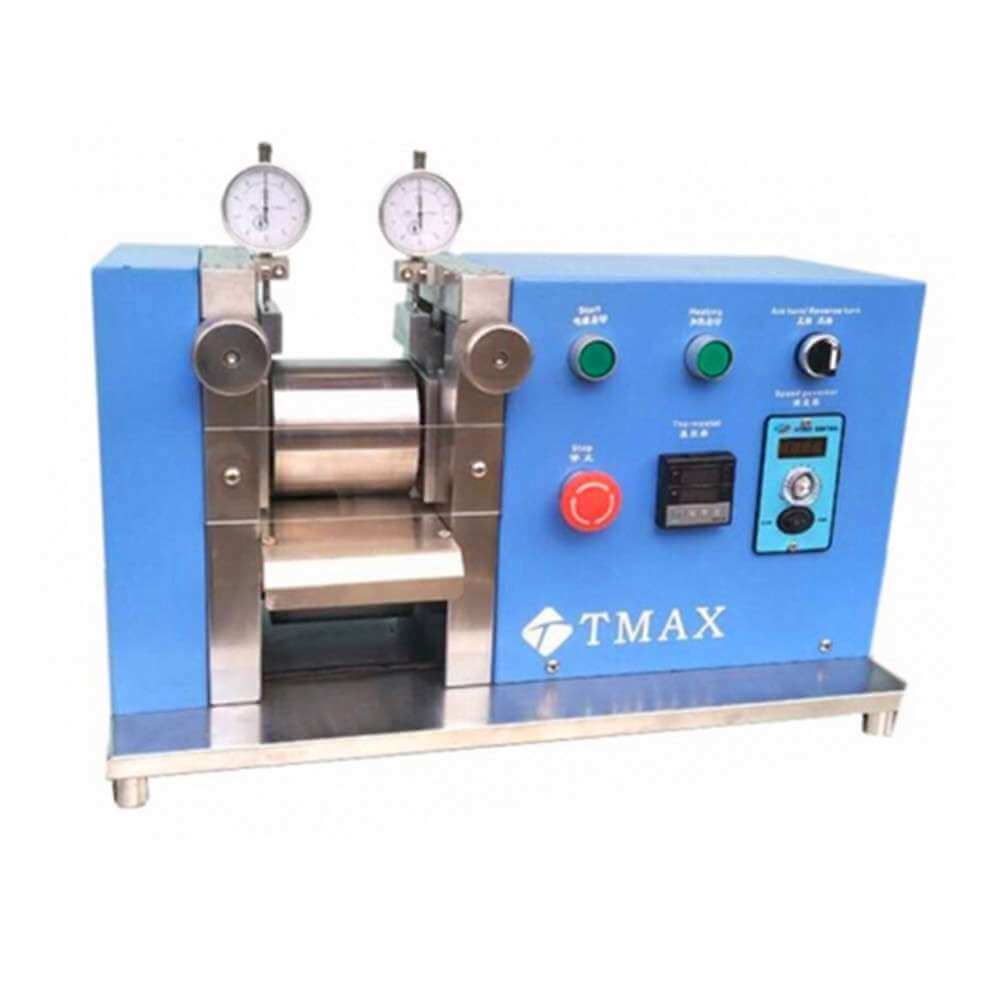

Electrode Rolling Machine

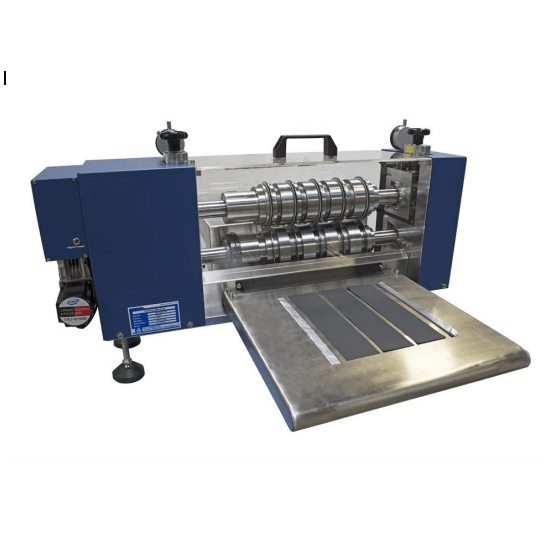

Electrode Slitting Machine

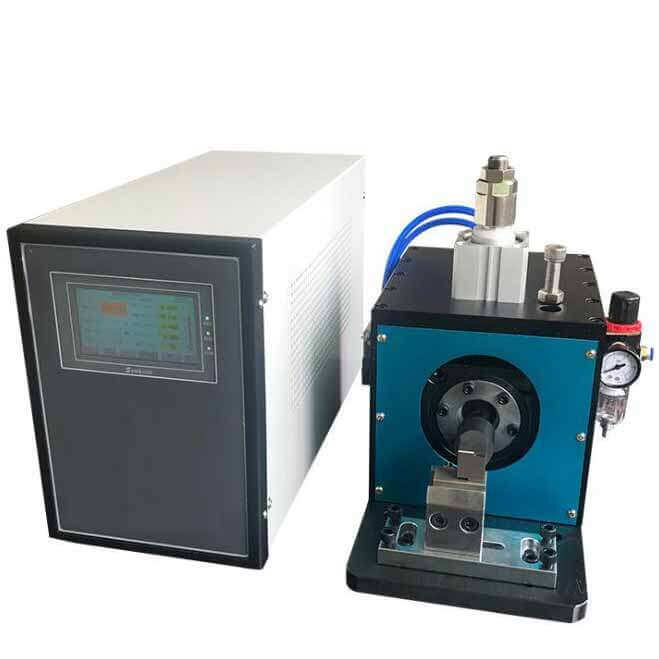

Ultrasonic Spot Welding Machine

Winding Machine

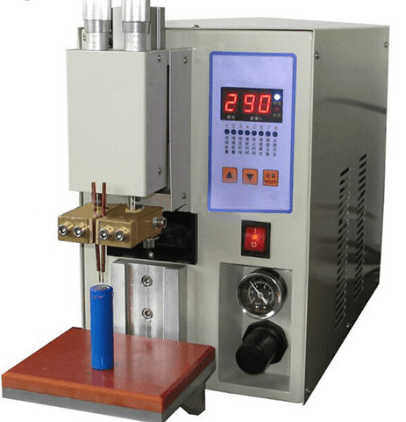

Spot Welding Machine

Grooving Machine

Coating Size:optional

(100*250)mm
(200*300)mm
(250*350)mm
(250*550)mm
(250*800)mm

Roller Size:

(100*100)mm
(100*200,100*250)mm
(100*300)mm
(100*400)mm

Electrode cutting

 Welding Power:1000W/2000W

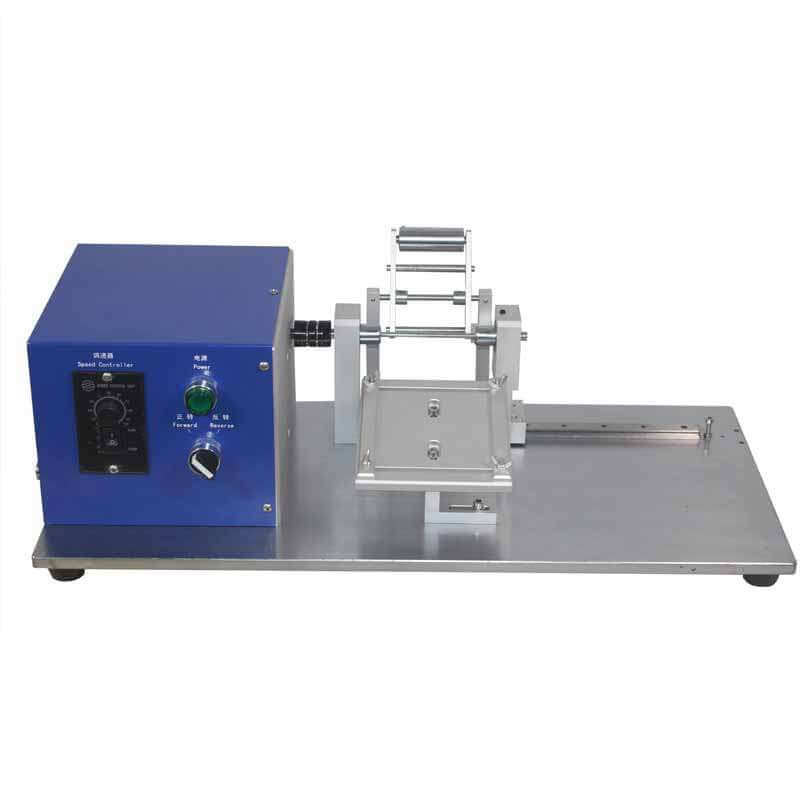

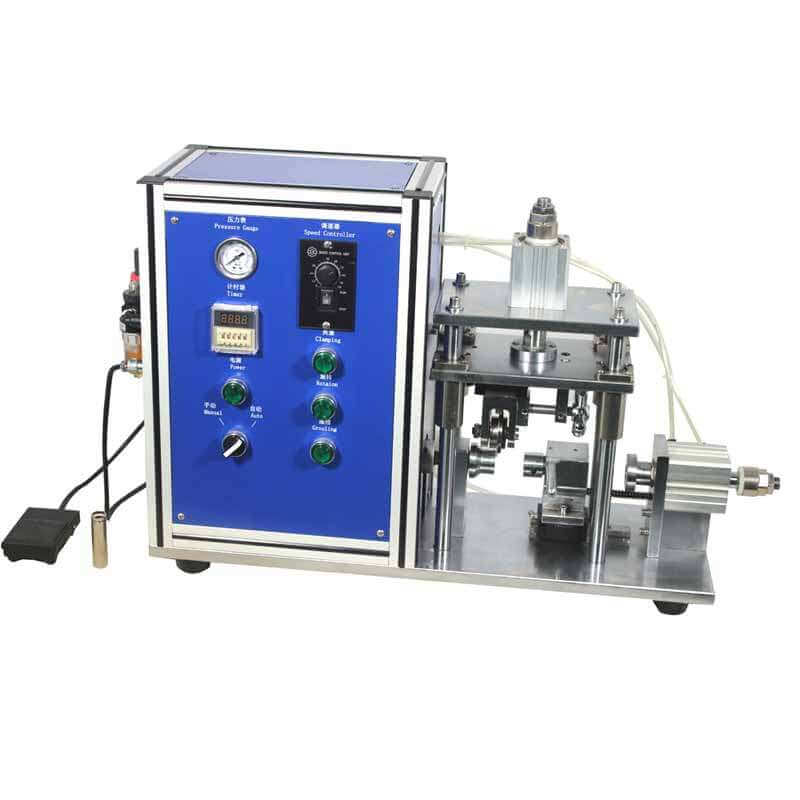

Manual Winding Machine for Cylindrical Cell Preparition

Single point or double point spot welding machine

Manual grooving machine



















             Battery Tester Equipment











Cylindrical Cell Equipment

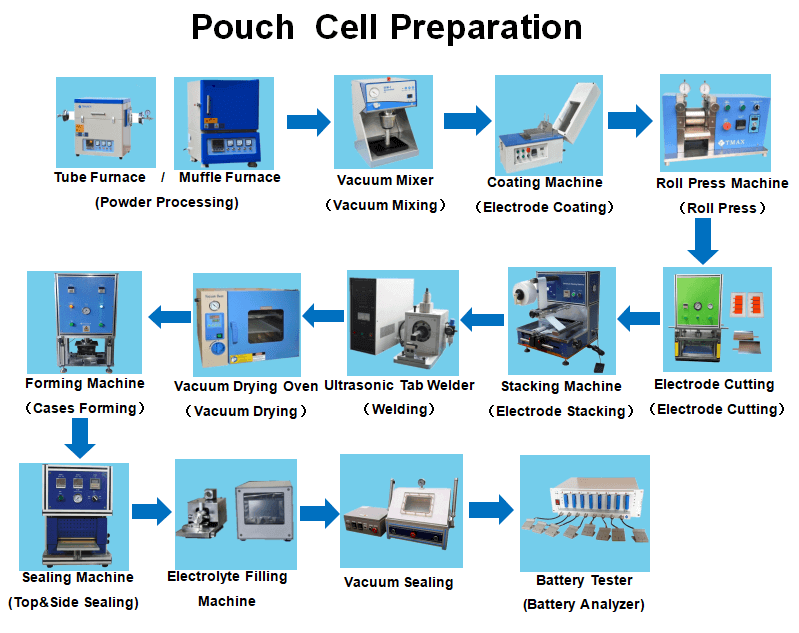

 Pouch Cell Preparation
