200C Max. Automatic Film Coating Machine with Dryer Cover and 140mm Doctor Blade

  • Model Number:

    TMAX-JK-TMJ-200
  • Dimension(L*W*H):

    550x 330 x 320mm
  • Net Weight:

    45-80kg
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

200ºC Max. Automatic Film Coater with Dryer Cover and 140mm Doctor Blade


This is our product's video link, about product operation.

https://www.youtube.com/watch?v=TEPHWUGBvsI&t=13s

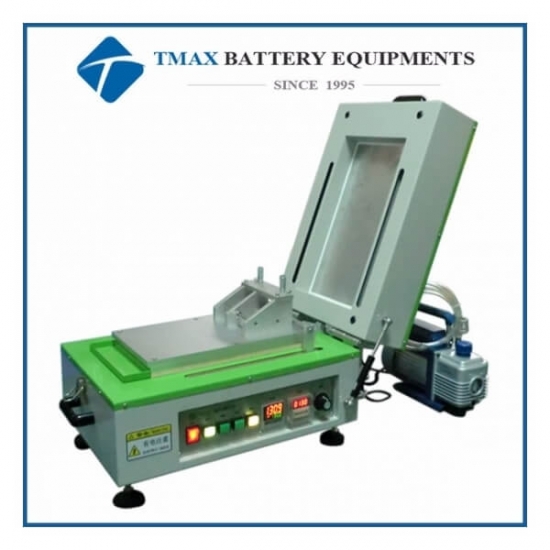

TMAX-JK-TMJ-200 is a CE Certified ready compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when making thin coatings. One 140 mm width adjustable micrometer applicator (doctor-blade). Heating cover with digital temperature controller can dry films after coating up to 200°C with a temperature accuracy of +/-1°C. This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating.

Specifications:

Stroke Length

10 - 220 mm adjustable by using Adjustable Position Switch

Platform

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 365mm(L) x 200mm(W)

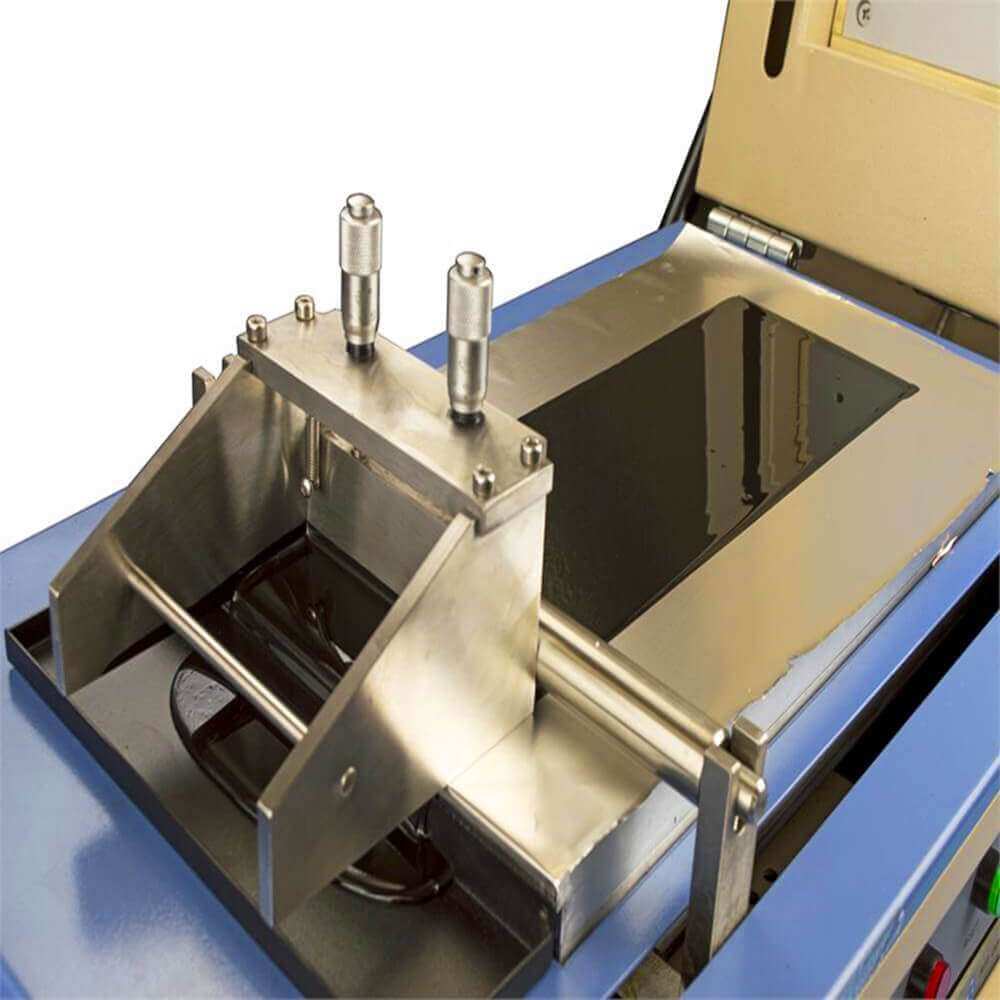

Accessories: Film Applicator

Optional 50 upto 180 mm width micrometer film applicator is included, with adjustable thickness from 0.01 mm - 2 mm
Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
Note: Thinnest film can be achieved is > 10 micron

Optional Heating Cover Voltage and Power

110VAC or 220VAC

Traverse Speed

0 - 100 mm/sec variable
Accuracy: 10mm/sec

Vacuum Pump

Vacuum pump is included

Heating Cover

1. Pre-installed on the top cover
2. Built in digital temperature controller with accuracy of +/-1°C
3. Suspension support helps open cover easily and safely
4. Max. Heating Temp.: 200°C

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Detailed Images

                    Electrode Coater

                 Electrode Coater

                    Electrode Coater

                       Electrode Coater

                    Electrode Coater

                    Electrode Coater

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


automatic coating machine

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
