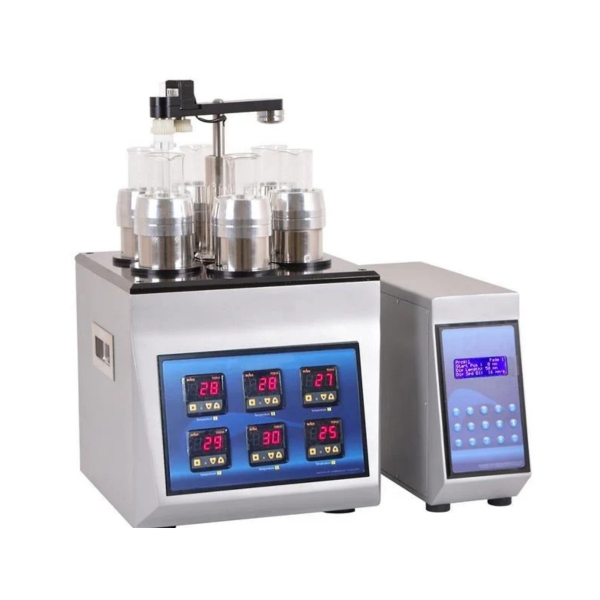

6-Position Programmable PLC Dip Coating System Coater With Stirrer & Heater For Metal Process

6-Position Programmable PLC Dip Coating System Coater With Stirrer & Heater For Metal Process

The TMAX-06H Coating System automates the entire SILAR process to eliminate operator fatigue and manual errors. Unlike manual dipping—which requires hundreds of repetitions and struggles with timing control—this system only requires the operator to clamp the substrate, program dip cycles, and set durations.

Key Features

· Motorized substrate holder with adjustable dipping, stirring, and retrieval speeds.

· Six independent hot plates (up to 350°C each).

· Digital control for dip duration, dry time, stir speed, and temperature.

· Compatible with gloveboxes and fume hoods for controlled environments.

Specifications

Application Notes

✔ For optimal coating:

· Pre-treat substrates with a plasma cleaner.

· Use an ultrasonic processor for nanoparticle dispersion.

✔ Environment options:

· Can be operated inside a glovebox (controlled atmosphere).

· Place in a fume hood if liquids emit vapor
