Multistation Dip Coating Machine For Metal process With Multi-Temperature for Thin Film Research

Multistation Dip Coating Machine For Metal process With Multi-Temperature for Thin Film Research

Product Overview

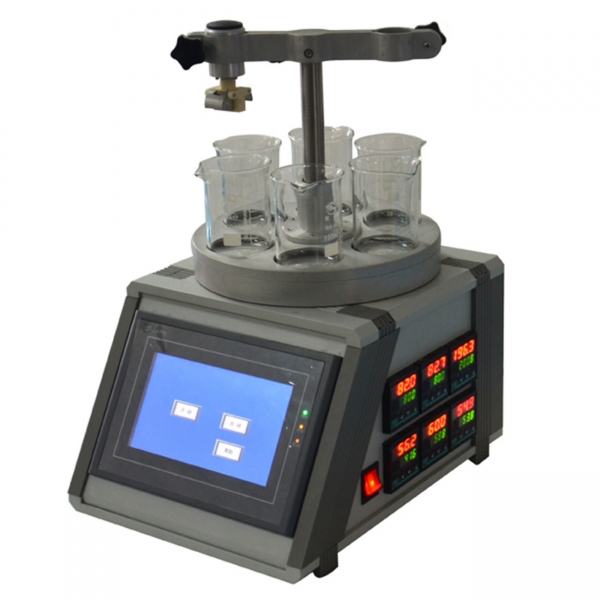

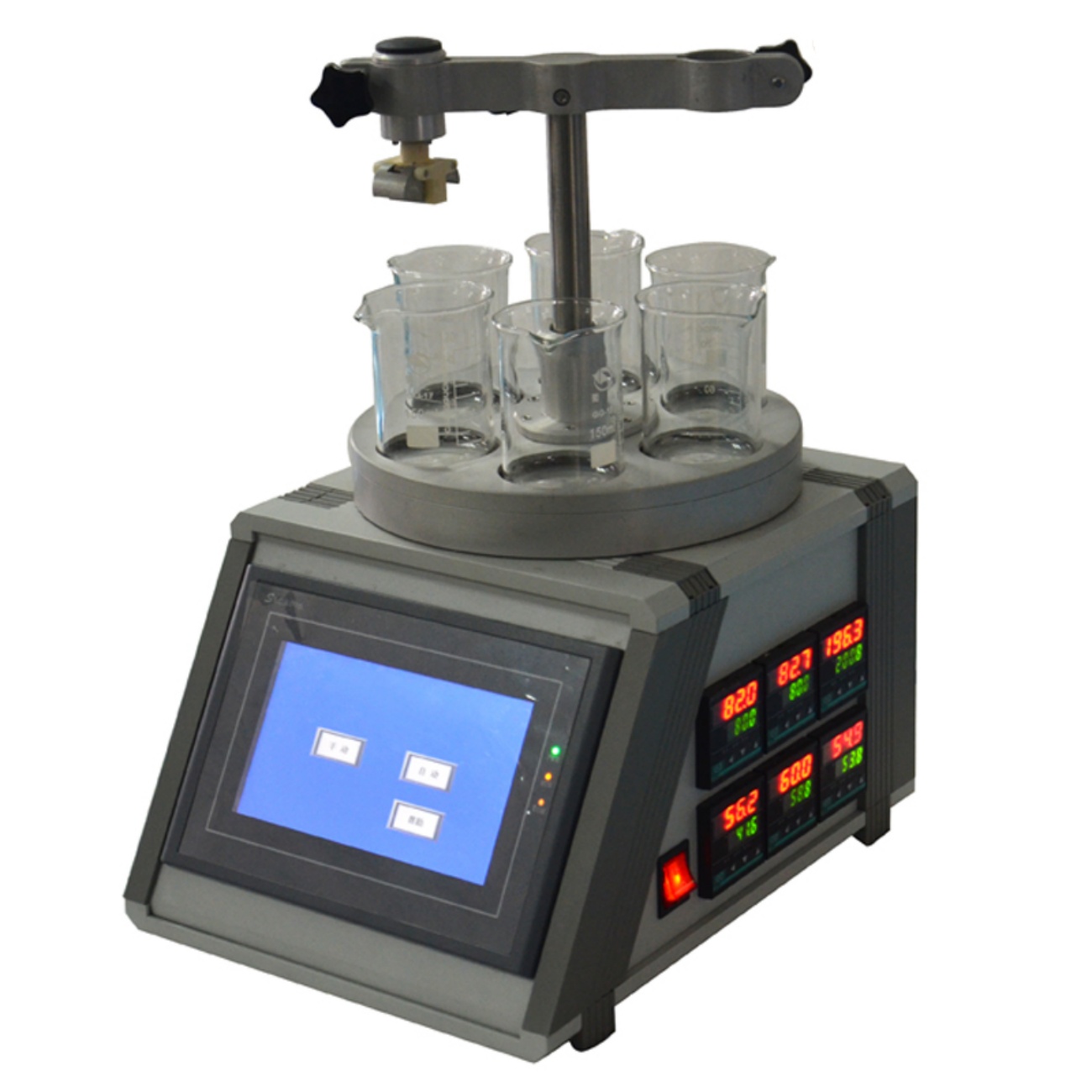

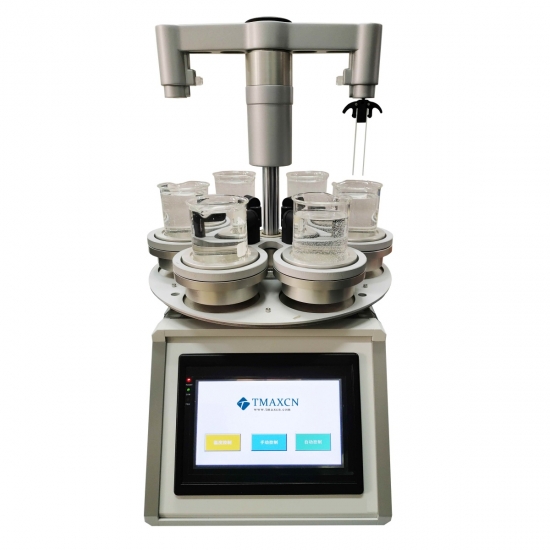

The TMAX-KJ06H six-station dip coater processes one sample at a time through programmable counterclockwise rotation. Samples are immersed in material-loaded beakers for preset durations before being lifted for drying, with both immersion and drying times being fully adjustable.

System Features

· Six independent workstations

· Counterclockwise sample rotation

· Programmable parameters (speed, time, temperature)

· Six individually controlled heating zones

· CE certified

· Space-saving compact design

· User-friendly operation suitable for beginners

· Easy maintenance and cleaning

Installation Conditions

The equipment must operate under the following conditions:

· Altitude: Below 1,000 m

· Temperature: 25°C ±15°C

· Humidity: 55%RH ±10%RH

Utility Requirements

Technical Parameters

Product Specifications

· Dimensions: 260mm × 340mm × 420mm

· Weight: 15kg

Standard Accessories

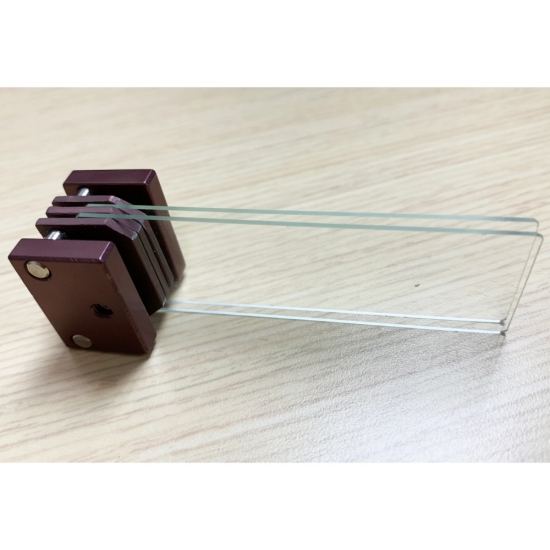

1. Single-sample holder ×1

2. Material beakers ×6

Optional Accessories

· Double-sample holder

· Other custom holders
