Vacuum Planetary Mixer

6000mL Large Vacuum Planetary Centrifugal Mill & Independent Speed Controlled & Mixer with Two jars

  • Model Number:

    TMAX-TP6000S
  • Dimension(L*W*H):

    1000L*1200W*950H
  • Net Weight:

    200KG
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20 day
  • contact now
Product Details

6000mL Large Vacuum Planetary Centrifugal Mill & Independent Speed Controlled  & Mixer with Two jars


Here is the video link for your reference :

https://www.youtube.com/watch?v=0UbIqKmO9lU&feature=youtu.be


The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.

Specification

Name

6000mL Vacuum Planetary Centrifugal Mill & Mixer

Equipment model

TMAX-TP6000S

Container Capacity

6000ml*2Cup)

The optimal capacity of mixing material

500-3000ml*2Cup)

Operation  Type

Human-machine Interaction Mode

Revolution Speed

100-2000RPM

Rotation Speed

Invariablenes

Vacuum

60/Minute,APROX.-98KPa

Multi Parameter Group

Multi Parameter Group

Protection

Door Cover,Breakdown, Overload

Dimension(mm)

1000L*1200W*950H

Voltage

2.5-5KW, Three-phase 380V

Weight

200KG

Power Supply

Three-phase 380V.50-60Hz

Clamp

Option

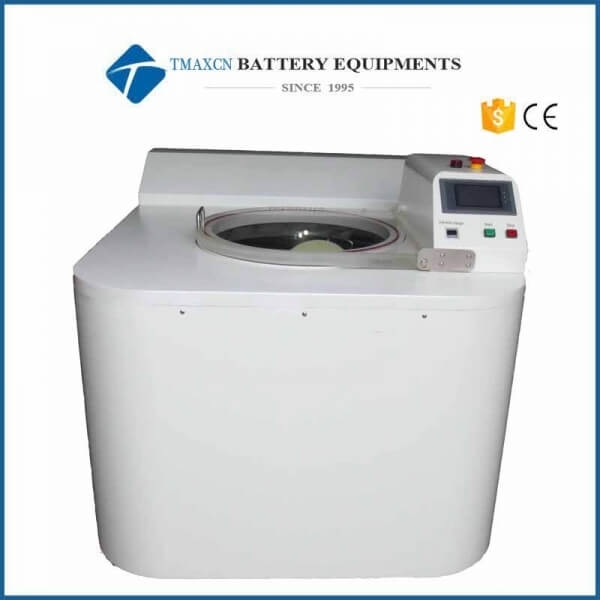

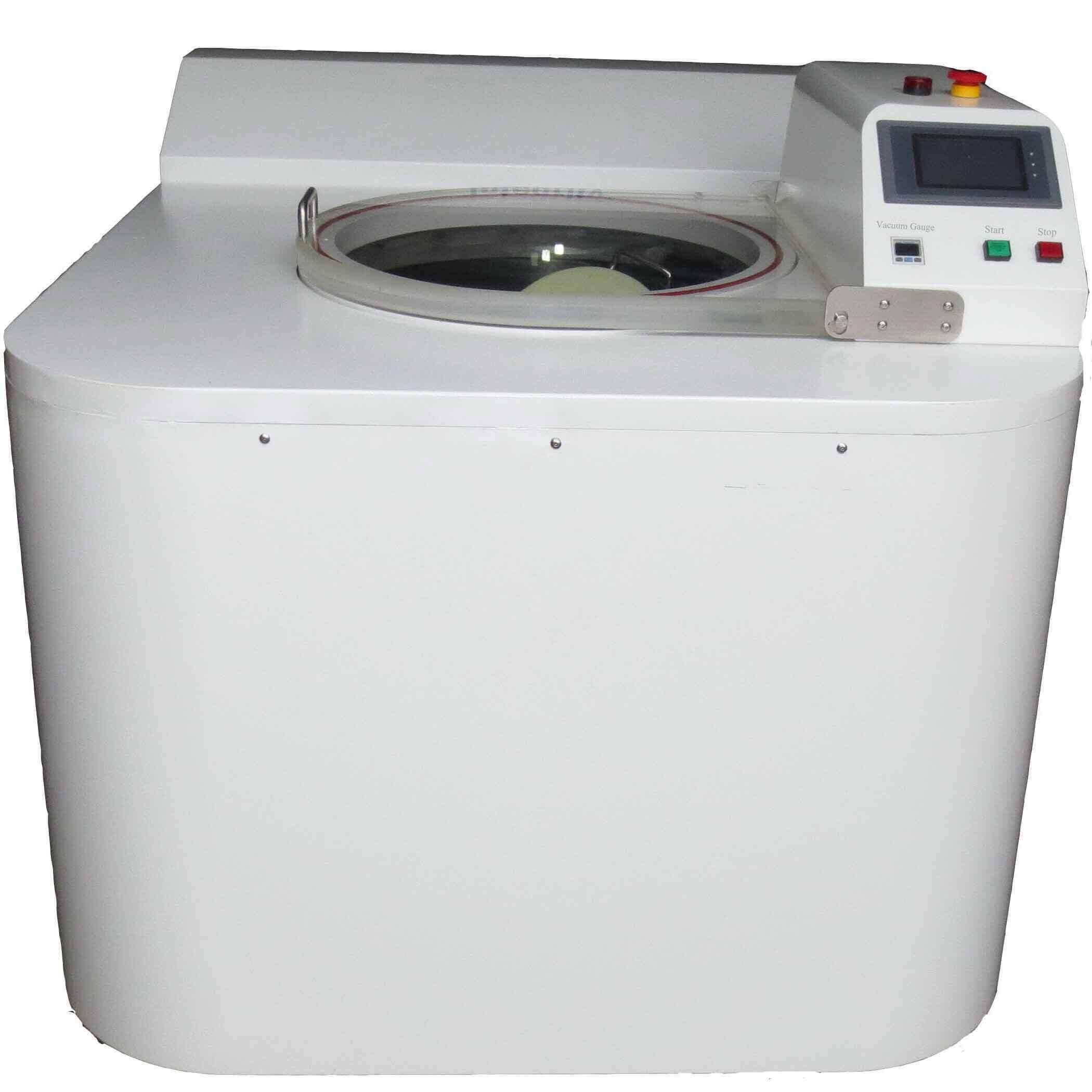

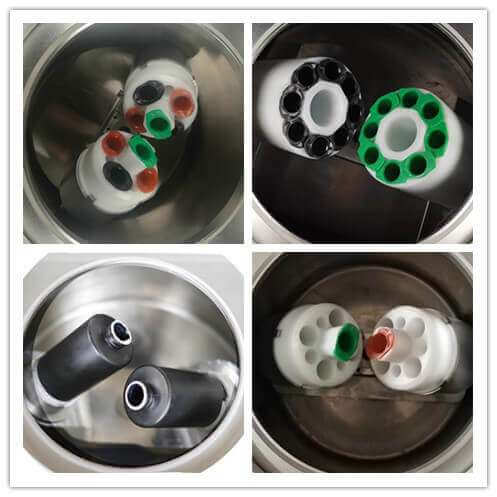

Detailed Images

 Planetary Centrifugal Mill


 Planetary Centrifugal Mill

 Planetary Centrifugal Mill

 Planetary Centrifugal Mill

mixer

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Compact Vacuum Mixer

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
