BTS4000-5V6A Battery Testing System (Energy Saving)

Equipment material code

CE-4008Tn-5V6A-S1

Indicator project

Indicator parameters

Enter the power supply

AC  220V  ± 10% / 50Hz

Input active power

300W

Resolution ratio

AD ：24bit ；DA ：16bit

Input impedence

≥1M  Ω

Voltage

Constant voltage range control

0.025V~5V

Minimum discharge voltage

1.5V (2M wire length)

Accuracy

± 0.05% of  FS

Stability

0.05% of  FS

Current

Output range per channel

Range 1:1.5 mA ~ 0.3 A; range 2:15 mA ~ 3 A;

range 3:30 mA ~ 6 A;

Accuracy

± 0.05% of  FS

Constant pressure cut-off current

Range 1:1.5 mA; range 2:15 mA; range 3:30 mA;

Stability

0.05% of  FS

Power

Single-channel maximum output power

30W

Accuracy

±0.1%  of   FS

Stability

0.1%  of   FS

Time

Current rise time

Maximum current rise time of 1ms (10% to 90% or 90% to 10%)

Working step time range

(365 * 24) hours / work step

Time format support 00:00:00 (h, min, s)

Data logging

Data recording conditions

Minimum time interval: 100ms (recording frequency of 10Hz)

Charge

Charging mode

Constant current charging, constant voltage charging, constant current constant pressure charging, constant power charging

Cut-off condition

Main channel: voltage, current, relative time, capacity,

-△V

Discharge

Discharge mode

Constant current discharge, constant power discharge, constant resistance discharge, constant voltage discharge

Cut-off condition

Main channel: voltage, current, relative time, and capacity

DCIR test

Support for custom taking points for the calculation of DCIR

Channel parallel

Up to 4 adjacent channels are supported in parallel, and no pulse test is supported in parallel

Recurrence

Circulating test range

1 to 65,535 times

Single cycle step number

254

Loop nesting

≤10 layer

Protect

● Power-loss data protection

● It has the offline test function

● Safety protection conditions can be set, setting parameters include: voltage limit, voltage limit, current limit, current limit, delay time

● Has the function

Energy saving efficiency

> 65% (compared to conventional equipment)

IP levels of protection

Protection level: IP 20

Channel characteristics

The constant current source and the constant voltage source adopt a double closed-loop structure

Channel control mode

Independent control

Voltage and current detection and sampling

Four-line connection

Noise

<75dB (measured at 1m)

Data base

The test data was managed centrally using the MySQL database

Upper-computer communication mode

Based on the TCP / IP protocol

Server disk configuration

500GB

Data output mode

EXCEL 2003,2010、TXT

Server operating system

Windows  7、Windows 10

CI

Network port and CAN communication module support communication with BMS to obtain BMS data (optional)

Equipment working environment requirements

Indicator project

Indicator parameters

Operating temperature range

0℃~40℃；Ensure the measurement accuracy within the calibration temperature (usually 25℃) plus or minus 5℃; Accuracy drift is 0.005% of FS /℃

Storage temperature range

-10℃~50℃

Relative humidity range of the working environment

70% RH (no moisture condensation)

Storage environment relative humidity range

80% RH (no moisture condensation)

Grilamp specifications and dimensions

Indicator project

Indicator parameters

Types of fixtures

selectable

Clip images

Crocodile fixtures

Polymer fixtures

Line nose fixture

Pictures are for reference only, subject to the physical object, choose one of the above clips

Number of machine channels

8

Case size per unit (W * D * H) (mm)

not  have

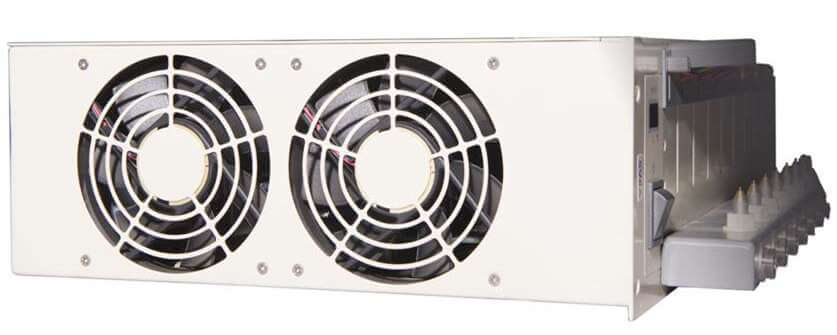

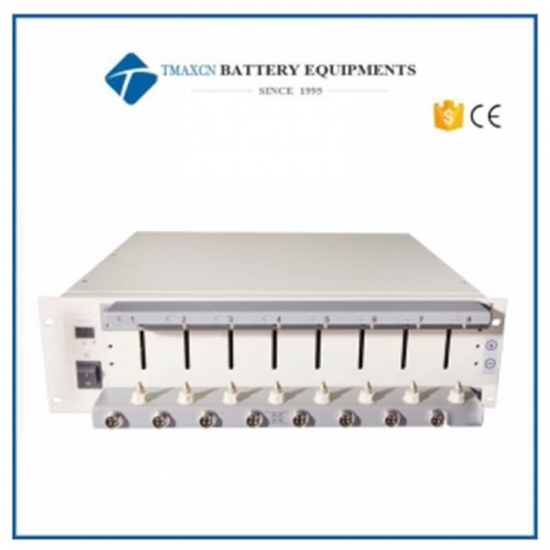

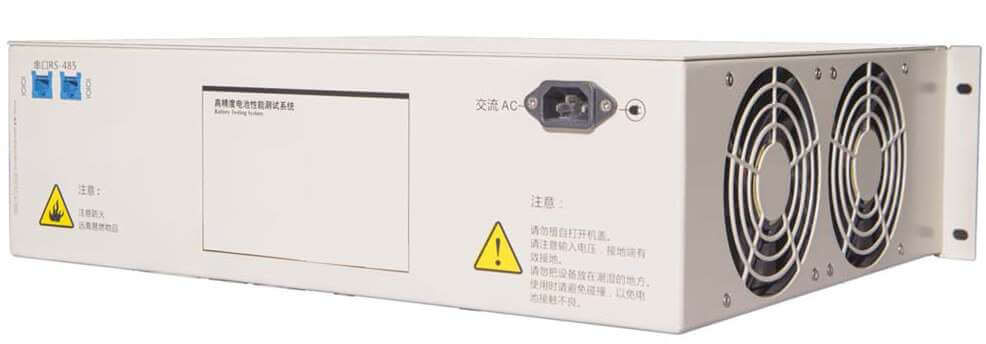

Device pictures

/

Pictures are for reference only, subject to the physical object

Note: incompatible test with protective panel battery with soft start function
