PYREX Erlenmeyer Flask

Stirring Hot Plate w/ External Temp. Probe, 7.25 x 7.25" Ceramic Plate Max. 450 °C

  • Model Number:

    TMAX-EQ-SP-19-LD
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

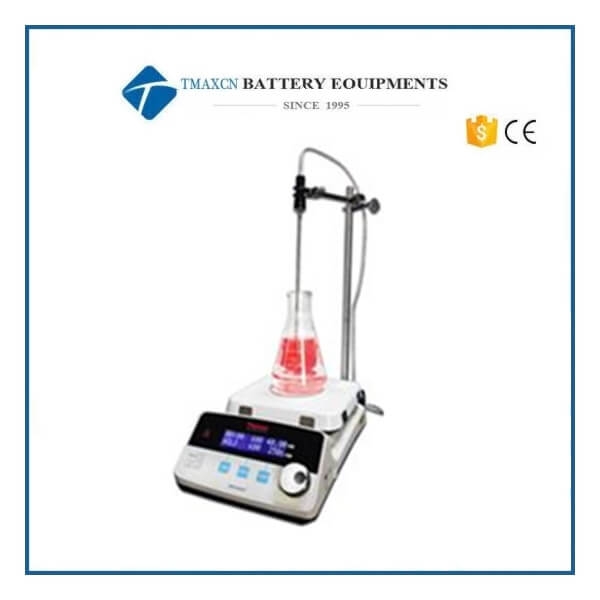

Stirring Hot Plate w/ External Temp. Probe, 7.25 x 7.25" Ceramic Plate Max. 450 °C


EQ-SP-19-LD is a CSA certified stirring hot plate with the programmable stirring operation, digital display, and external temperature probe. The maximum temperature of the heating surface is 450 °C.


Product parameters

Features




· Easy-to-read LED display for heating and stirring

· Raised display design protects electronics from spills

· Ability to set stirring programs (ramp/dwell, timer) as well as save settings

· Ceramic heating surface (450 °C max temperature) with over-temperature protection

· HOT TOP warning with prominent display when heating surface is above 50 °C (122 °F)

· External temperature probe (PT1000, 0 - 400 °C) and its stand mount are included for measuring liquid temperature

· One magnetic stirring bar is included for uniform stirring / mixing

Input Power

· 208 - 240 VDC, 50 / 60 Hz

Heating Surface

· Size: 7.25" x 7.25" (18.4 cm x 18.4 cm)

· Material: Ceramic

· Heating temperature: 450 °C max with over-temperature protection

· Temperature display resolution: 0.1 °C

· External temperature probe (PT1000, 0 - 400 °C) and its stand mount are included for measuring liquid temperature

· External temperature probe stem length:10"

Stirring & Mixing

· Stirring speed: 50 - 1500 rpm

· Stirring capacity: 10 L (water)

· One magnetic stirring bar is included for uniform stirring / mixing

· Note: No beaker is included with the purchase

Size

· 360 mm L x 208 mm W x 105 mm H

· 560 mm H with temperature probe

Net Weight

· 6 kg

Compliance

· cCSAus & CE

Warranty

· One year limited warranty with lifetime support

Warning

Do not turn the heat adjustment know past the low-end or high-end of the adjustment range using excessive torque. Doing so may result in the heating malfunction.
