Coating Device Wet Film Applicator

Adjustable Wet Film Applicator With Digital Display Micrometer

  • Model Number:

    TMAX-Applicator2
  • Dimension(L*W*H):

    100mm/150mm/200mm/250mm
  • Net Weight:

    1kg
  • Compliance:

    CE Certified
  • Warranty:

    1 years limited warranty with lifetime technical s
  • Shipping Port:

    Xiamen
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

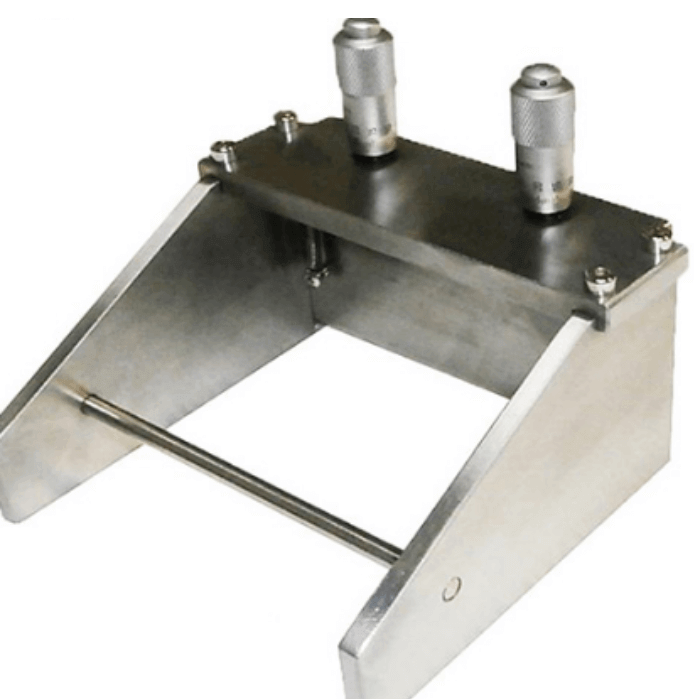

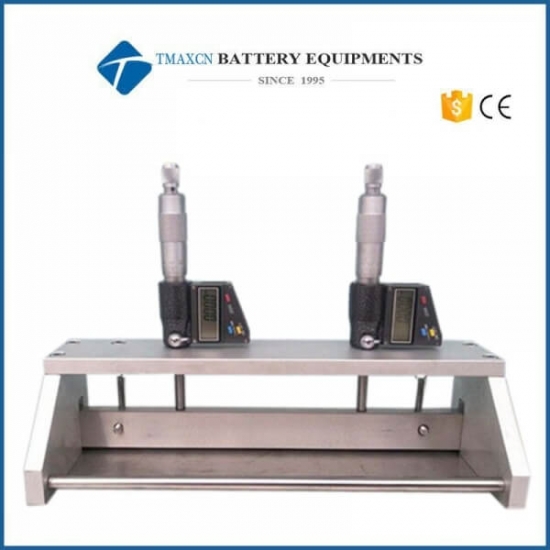

Adjustable Wet Film Applicator With Digital Display Micrometer


1. Adjustable Film Applicator - This unique wet film applicator coater features micrometer heads for knife blade adjustment.
2. The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.



SPECIFICATIONS:

Features

1. 100 mm standard width
2. Make wet film thickness between 0 - 3500 microns
3. Micrometer head's controllable accuracy is 10 microns
4. Made of SS304 stainless steel

Compliance

CE Certified

Warranty

Two years limited warranty with lifetime technical support

Net Weight

1kg



Detailed Images
