Roll Coating Machine

Lab Intermittent Coating Machine For Lithium Battery Electrode Making

  • Model Number:

    TMAX-MRX300
  • Input Power:

    10KW
  • Net Weight:

    About 1.3T
  • Compliance:

    CE Certified
  • Warranty:

    1 Year Limited Warranty With Lifetime Support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20 day
Product Details

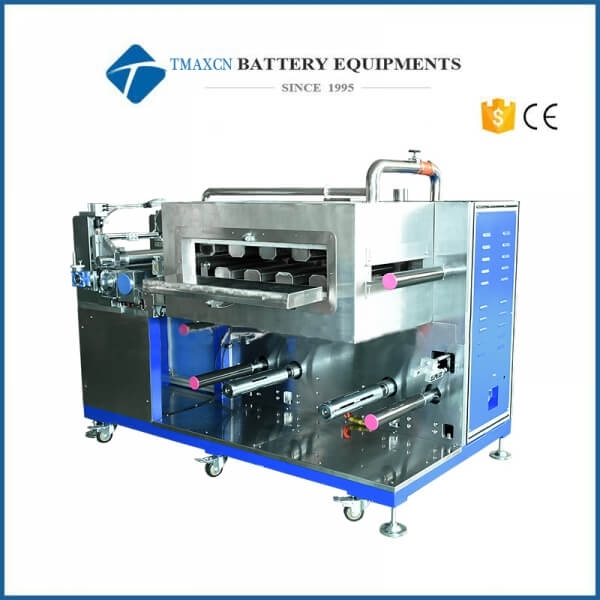

Lab Intermittent Coating Machine For Lithium Battery Electrode Making

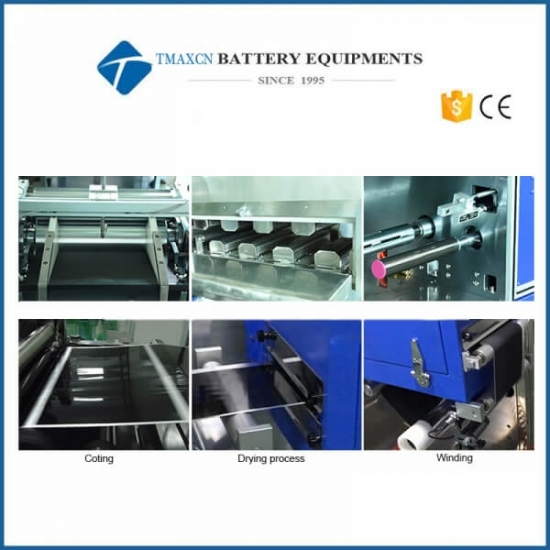

TMAX-MRX300 is a automatic battery electrode coating machine with a compact footprint that is less than 6'x3'. It uses transfer coating technique for better coating uniformity and is perfect for research or building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's the most convenience.



 Working Voltage

380V AC

Max. Power Consumption

10 KW ( 30A Air breaker required )

Max. Coating Width

300mm

Thickness adjustable range

0-5mm

Coating thickness (after drying)

20 - 200um (for most kinds of battery electrode coating material)
Note: The dried coating thickness results vary depending on the physical property of the coating material.

Thickness Precision

± 3µm (± 5µm at edges)

Coating Speed

0-300 mm / minute

Max. Drying Temperature

150°C

Temperature Accuracy

±2.5°C

Heating Zone Length

710mm (28")

Reeling/Unreeling Shaft

75mm (ID)

Max. Reeling/Unreeling Diameter

300mm (OD)

Max. Coating Length


·         Depending on the coating and substrate thickness.

·         Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run

Coating Modes

·         Using transfer coating technique ( Reverse comma )  for better uniformity

·         Two available coating modes selectable on the control panel.

o    Continuous mode

o    Intermittent coating ( system performs coating, stops, coats again and so on. The length of the coating and break segments can be specified by the user ).

Slurry Stirring

SS316 Moving Rod

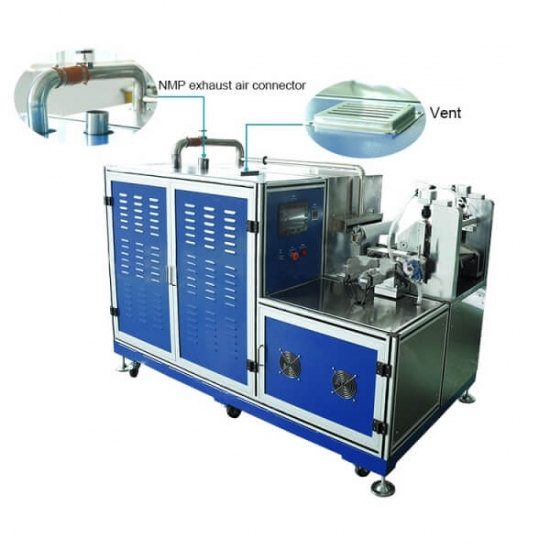

Exhaust Port Size

127mm O.D

Compressed Air

0.5-0.8 MPa (Air compressor not included. Please click here to order)

Product Dimensions

  1650mm ( L) x 1250mm (W) x 1200mm (H)

Warranty

·         Two Years limited warranty with lifetime support

·         Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Net Weight

1000 kg

Shipping Dimension

70" x 50" x 60"

coating laminating machine

Intermittent Coating Machine



pouch cell making machine






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


automatic battery electrode coating system


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
