Pouch Cell Battery Making Equipment, Pouch Cell Production Equipment

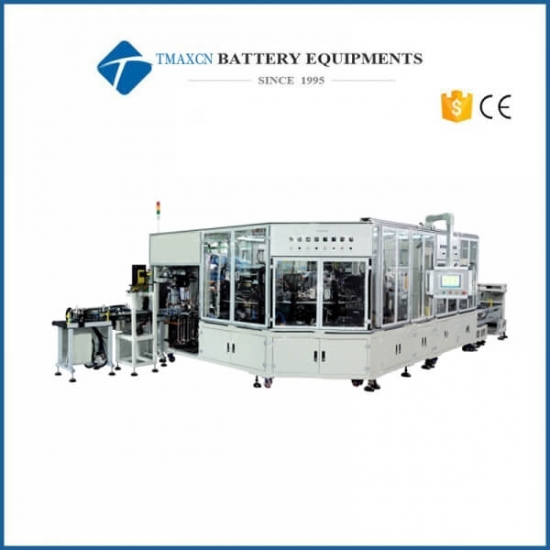

Auto packaging & sealing production line

  • Model Number:

    TMAX-A-020
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

Auto packaging & sealing production line

Functions
This equipment is suitable for soft package lithium battery fully automatic assembly. Mainly with aluminum membrane rolling, automatic Al film slitting automatically, automatic punching shell, automatic cutting, automatic turntable and shell automatic folded in half and automatically cut the top edge; drawstring bare batteries loading, bare batteries detected by CCD and separation, bare batteries automatic plastic positioning, bare batteries automatically into the shell, the top sealing (pole ear automatically correct) , lateral sealing, seal Angle, insulation test, fine cutting lateral and sealing, stenciling, and scan code and NG, sorting, and other functions.

Features
Material automatic correction, aluminium film floating roll tension control automatically;
Gas rose axis vertical cantilever plate is placed;
Aluminum film slitting;
Fine cut top side and sealing;
Servo punching shell and depth is adjustable;
Bare batteries incoming CCD detection and separation;
Cell round Angle with separate individual package;
Pole Ear automatically correct;
Test, stenciling, NG separation and independent place;
Fine cut lateral and sealing.

Technical Parameters(for reference)

ITEM

ZDBZJ150

ZDBZJ150

Measures

(L*W*H):8500*2700*2300mm

(L*W*H):11100*3250*2300mm

Weight

About 4.5T

About 5T

Power

AC380V/50Hz, 10Kw

AC380V/50Hz, 10Kw

Air source

0.6Mpa,20L/S

0.6Mpa,20L/S

Vacuum source

-0.09Kpa,5L/S

-0.09Kpa,5L/S

Applicable range

H:55-150mm W:100-160mm  T:2.5-10mm

H:100-240mm W:120-210mm  T:2.5-10mm

Capacity

16PPM

15PPM

Action

99%

99%

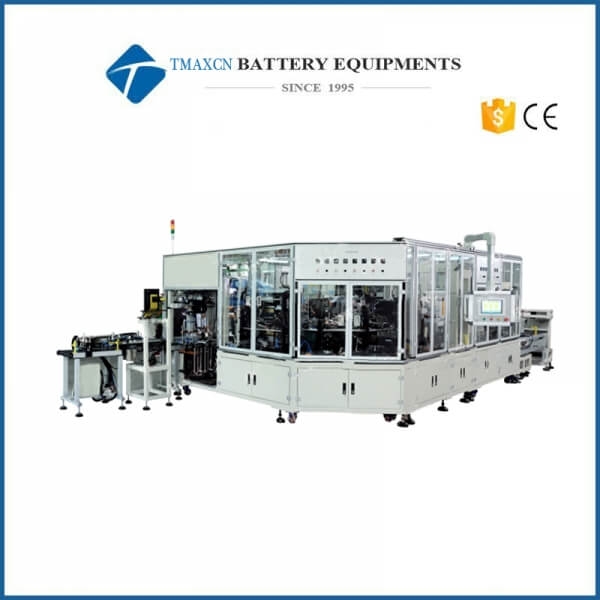

 Auto packaging & sealing production line






1.  We supply machines with battery technology support.

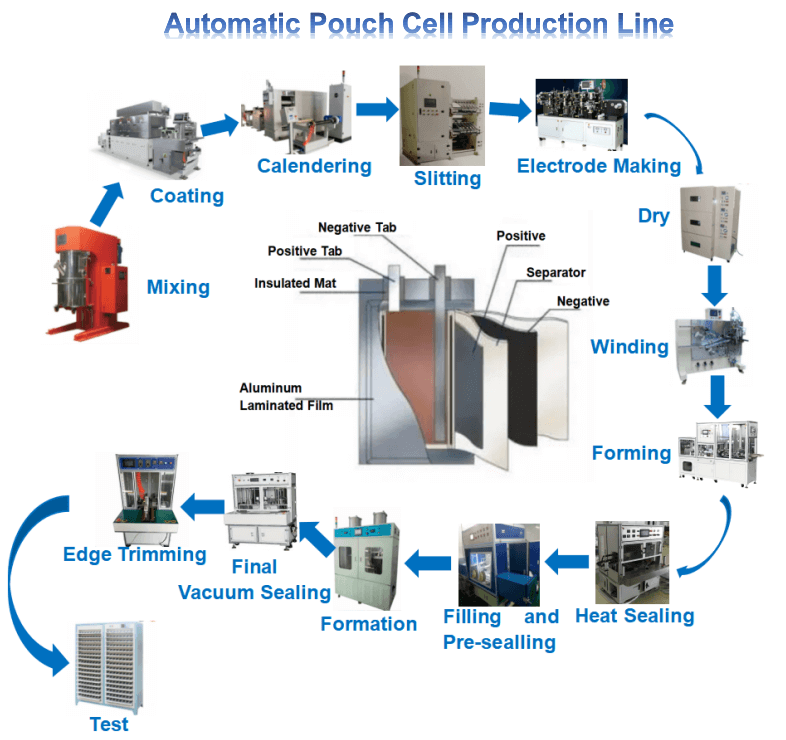

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
