Degas Machine

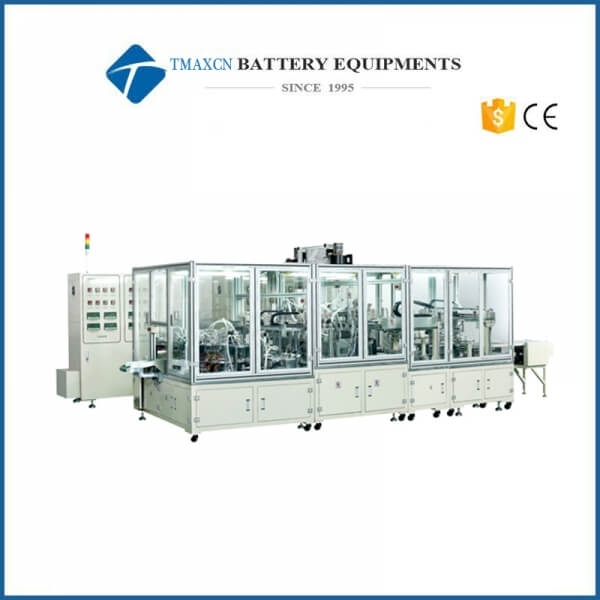

Automatic Degas and Sealing Machine

  • Model Number:

    TMAX-A-023
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

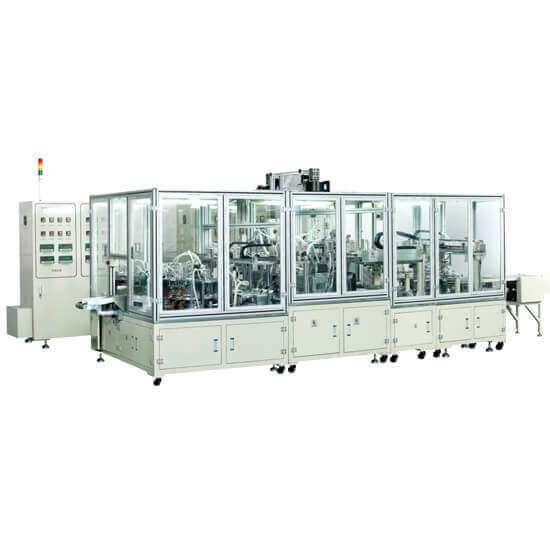

Automatic Degas and Sealing Machine

Functions
Suitable for the auto extraction, sealing, airbags pre-cut, trimming, flanging, hot forming auto production equipment. (Add test, scan code, weighing and functions of auto load & unload material be optional).

Features
Mechanical hand to load material to sealing body, after completion of loading automatically closed cavity, Pierce, infusion, encapsulation
Pre-cut air pocket function, the removal of excess air pocket, avoid air pocket on the residual electrolyte contamination
After encapsulation battery short circuit test function, process, after test NG material not next level automatically;
Air pocket respectively in two side and side sealing side location positioning excision and ruffled, ensure the cutting precision;
After folding iron battery edge shape, iron edge block buffer, ensure the battery is good;
Weighing function after molding, weighing data input to the computer;
Trimming precision of ± 0.15 mm;
Before packaging to secondary reorientation of battery, encapsulation location accuracy ± 0.15 mm;
1 set of each cell has an independent servo mechanism, pressure through the pressure sensor control and output display;
Use knife to Pierce, airbags on the outside edge of the cut out gap, batteries inside block speed of gas discharge, put an end to the electrolyte injection, control pumping fluid volume and reduce the electrolyte pollution to the head and the cavity.

Technical Parameters(for reference)

ITEM

HBS-CYCX100

HBS-CYCX150

HBS-CYCX300

Measures

(L*W*H): 2800*1400*2300mm

(L*W*H): 4800*2300*2400mm

(L*W*H): 4500*2700*2300mm

Weight

About 2.0T

About 2.5T

About 3.0T

Power

AC220V/50HZ, 15Kw

AC220V/50HZ, 15Kw

AC220V/50HZ, 15Kw

Air source

0.6Mpa,50L/Min

0.6Mpa, 50L/Min

0.6Mpa,50L/Min

Vacuum source

-95Kpa,400L/Min

-95Kpa,400L/Min

-95Kpa,400L/Min

Applicable range

L:40-100mm,W:40-80mm,T:3-10mm

L:50-160mm,W:50-120mm,T:3-15mm

L:100-300mm,W:100-300mm,T:4-15mm

Capacity

10PPM(2pcs/cavity, 20s)

10PPM(2pcs/cavity, 20s)

4PPM(1pcs/cavity, 25s)

Action

99.5%

99.5%

99.5%

 Auto degas & sealing machine






1.  We supply machines with battery technology support.

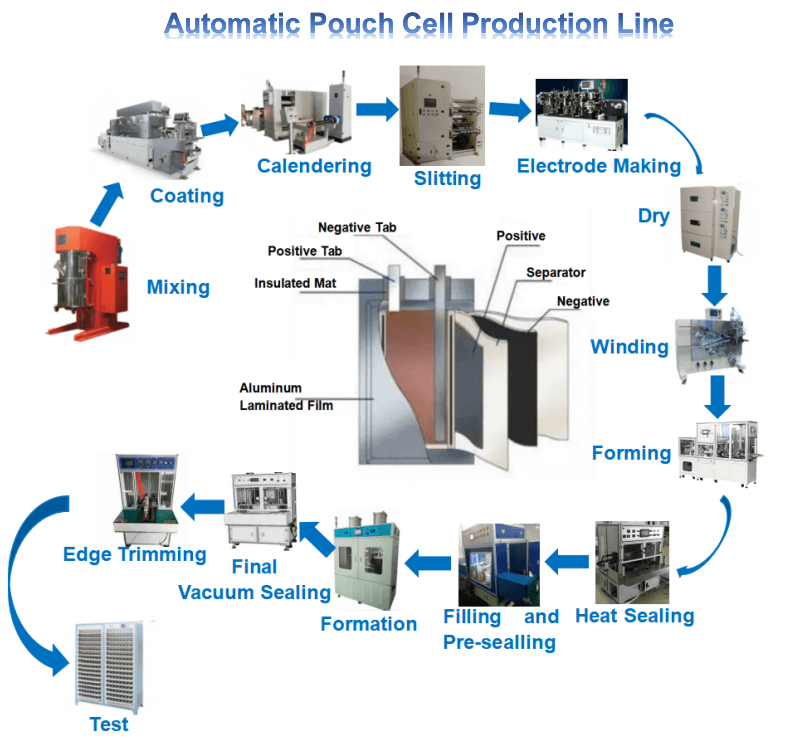

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
