Pouch Cell Battery Making Equipment, Pouch Cell Production Equipment

Fully auto baking tunnel furnace

  • Model Number:

  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

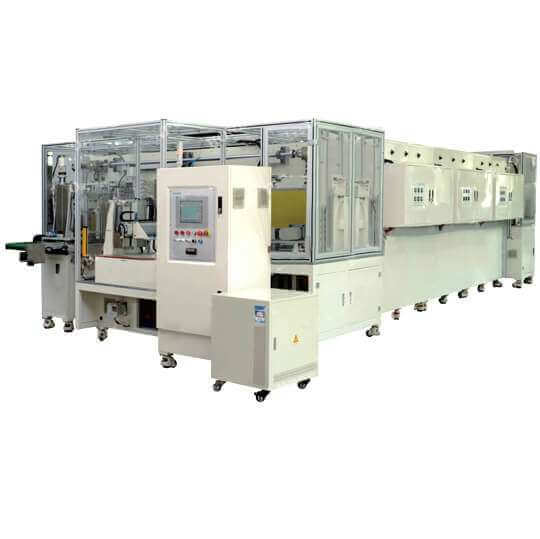

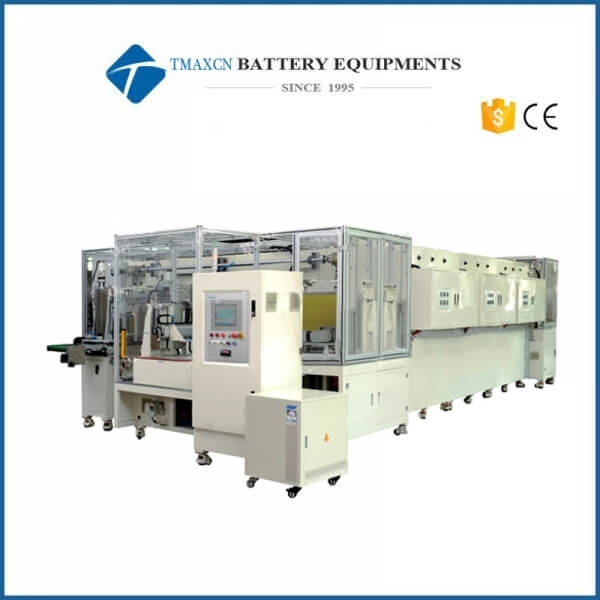

Fully auto baking tunnel furnace

Suitable for auto load and unload Baking fixture, Baking oven, Baking furnace cooling, in order to achieve high temperature polymerization, standing.

Manual load materials to jig, manipulator clamp feeding to the Baking step by step from the rotary table
Baking fixture in precision positioning and auto calibration devices are removed from the institutions
Baking jig locked by servo control
Baking furnace and cooling furnace use plate chain conveyor, closed loop control
Baking fixture tensioning force servo control, tensioning force within the touch screen settings, tensioning force accuracy ±0.25%
Baking furnace temperature control precision of ±3 (except within one meter distance from the security door)
After Baking the battery thickness accuracy: plus or minus 3.0% T (T is average thickness of the battery)
After cooling, the temperature below 40 when Baking fixture
Head component structure adopts movable roller structure, convenient maintenance, and dismantling

Technical Parameters(for reference)




(L*W*H): 9800*3500*2350mm


About 10T


AC380V/50HZ, 72Kw

Air source


Vacuum source


Applicable range



15-20PPM(Baking time:4 hour,4pcs in one time, Thickness5mm)

Cold source

Cooling water,10-18, head of delivery:20M



 Fully auto baking tunnel furnace



1.  We supply machines with battery technology support.

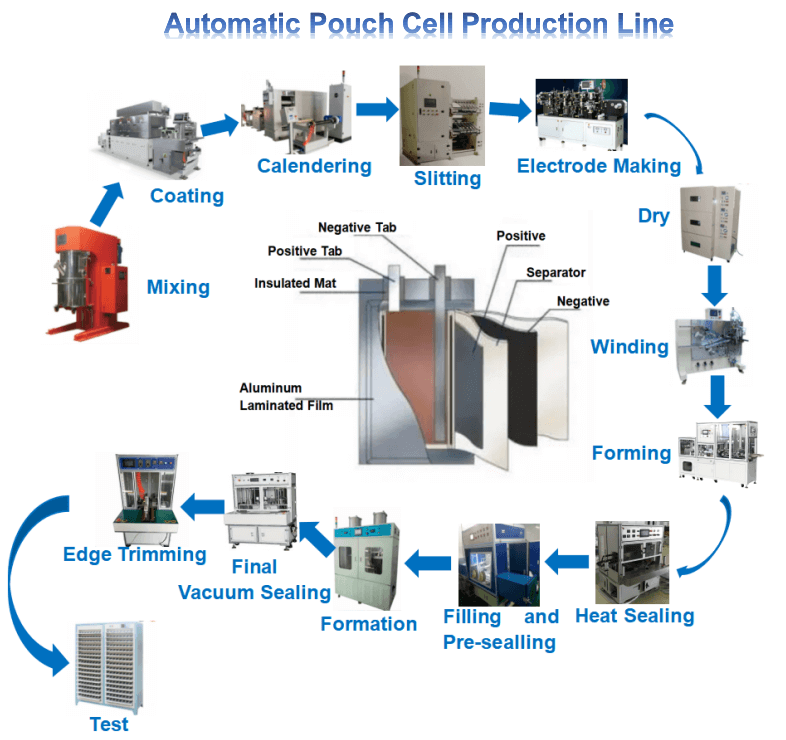

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
