Pouch Cell Battery Making Equipment, Pouch Cell Production Equipment

Automatic Electrolyte Filling Machine with Double Station

  • Model Number:

    TMAX-A-010
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

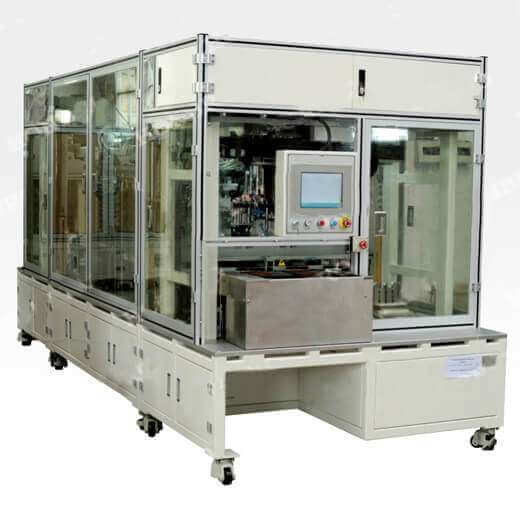

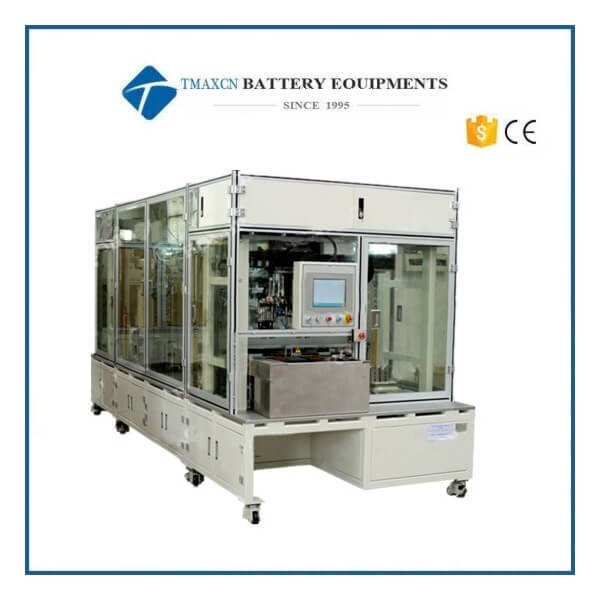

Automatic Electrolyte Filling Machine with Double Station



Functions

● The equipment is mainly used for pouch cell of lithium ion batteries assembly .It can achieve automatic vacuum electrolyte injection,diffusion&degassing , vacuum sealing, manual loading and unloading materials,etc.

Features

● Manual feeding, manual injection fluid first and then weighing, scan code.

● Automatic vacuum injection, diffusion&degassing, sealing.

● Injection pump and control box independent with equipment isolation convenient to adjust parameters, avoid pollution and corrosion.

● Head component structure adopts movable roller structure, convenient service, maintenance and dismantling.

● Equipment placed in drying room or common room, convenient install and dismounting transition part.

● Auto electrolyte-mixing system, remove air bubbles, prevent injected liquid drops.

● Injected electrolyte station using vacuum injection to ensure that the electrolyte instantly penetrate into the cell.

● Filler, static and pre-packaged merged into one station, smaller device convenient servicing and maintenance.


Technical Parameters(for reference)

ITEM

Main parameters

measures

(L*W*H):1030*1200*2000MM

Weight

About 0.4T

Power

AC220V ±10% 50HZ/60HZ, 0.8KW

Air source

0.7Mpa,30L/S

Applicable range

H:40-170mm W:50-170mm T:2.5-12mm

Vacuum source

-95Kpa,80L/S

Capacity

4PPM

Action

98%

Liquid injected volume

0-50g

Liquid injected precision

≤±1%

 double station filling machine

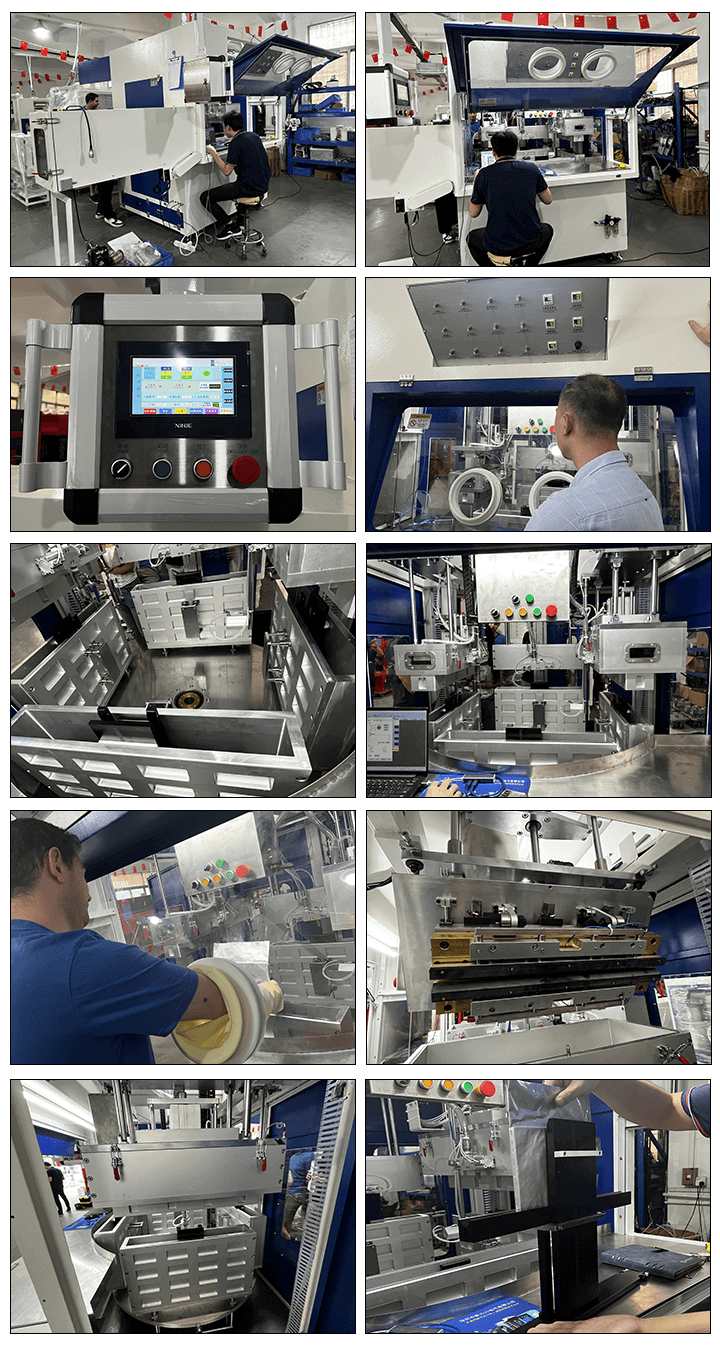

1.  We supply machines with battery technology support.

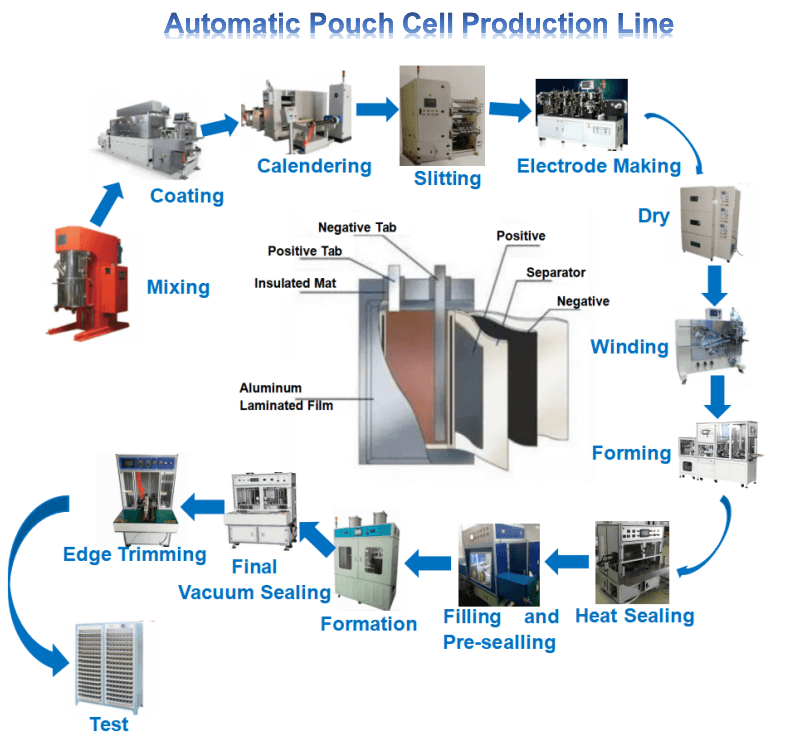

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
