Forming Machine

Automatic Pouch Forming Machine

  • Model Number:

    TMAX-A-011
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
Product Details

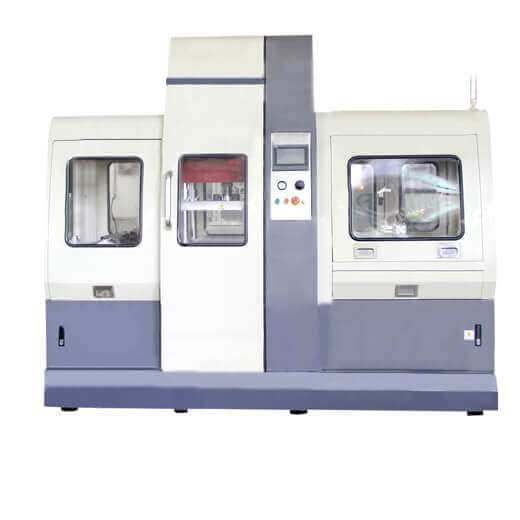

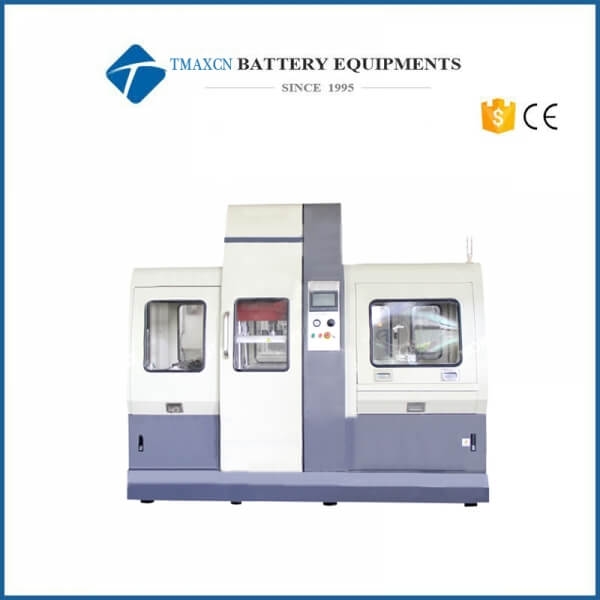

Automatic Pouch Forming Machine

This equipment is suitable for the flexible packaging aluminum-plastic film auto pouch forming. Mainly included the aluminum-plastic film auto put volume, floating roll tension control, automatic pouch forming, auto fixed-length pull material, auto cutting, and other functions.

Features
Pressure cylinder clamping, servo pouch forming, depth is adjustable
The cutter location parameter settings can be touch screen
Servo fixed-length puller
Finish Two pieces film in one time
Gas rose axis vertical cantilever plate is placed.

Technical Parameters(for reference)

ITEM

CKA200

CKA280

measures

2230*695*2020mm(L*W*H)

3170*960*2175mm(L*W*H)

Weight

About 2T

About 3.5T

Power

AC220V/50HZ, 2.5KW

AC220V/50HZ, 2.5KW

Air source

0.6Mpa,100L/Min

0.6Mpa,100L/Min

Applicable range

L:370mm,W:175mm,D:10mm

L:370mm,W:175mm,D:10mm

Vacuum source

18PPM

100-500pcs/hour

Capacity

99%

99%

Action

2230*695*2020mm(L*W*H)

3170*960*2175mm(L*W*H)

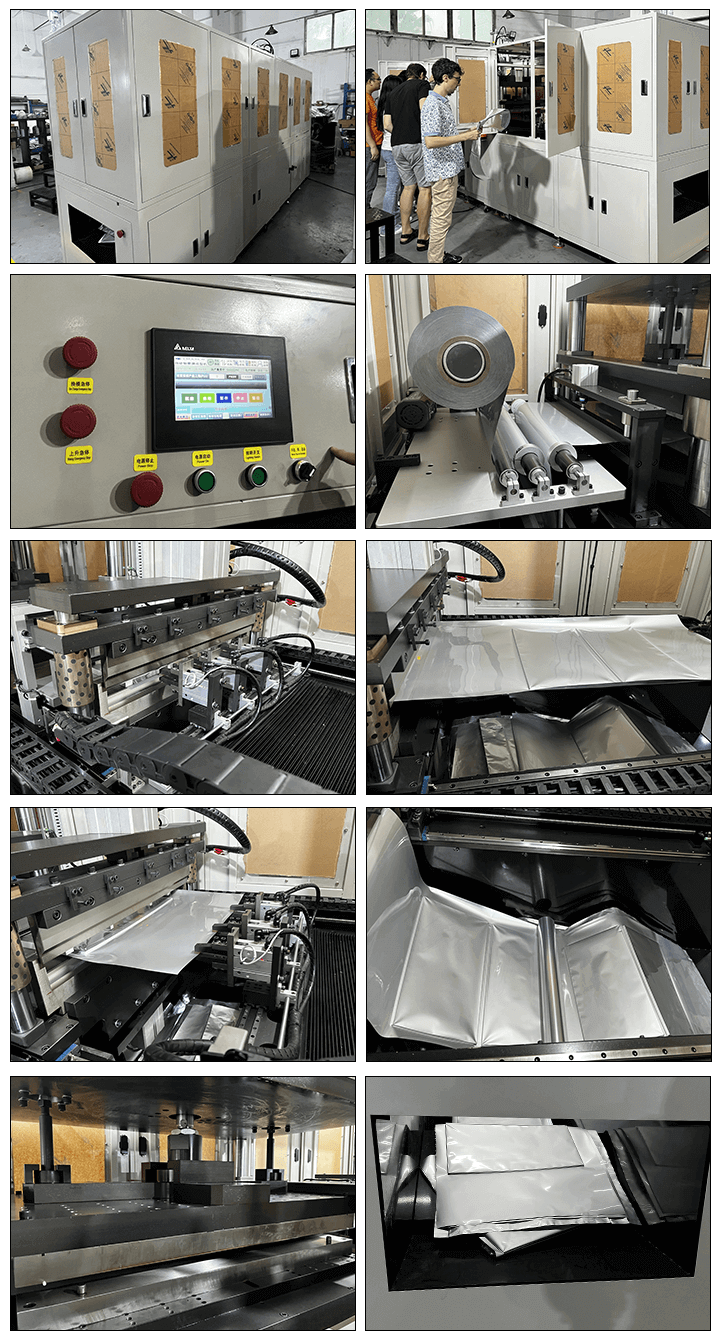

 Auto pouch forming machine

Pouch Cell Production Line






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
