Pouch Cell Battery Making Equipment, Pouch Cell Production Equipment

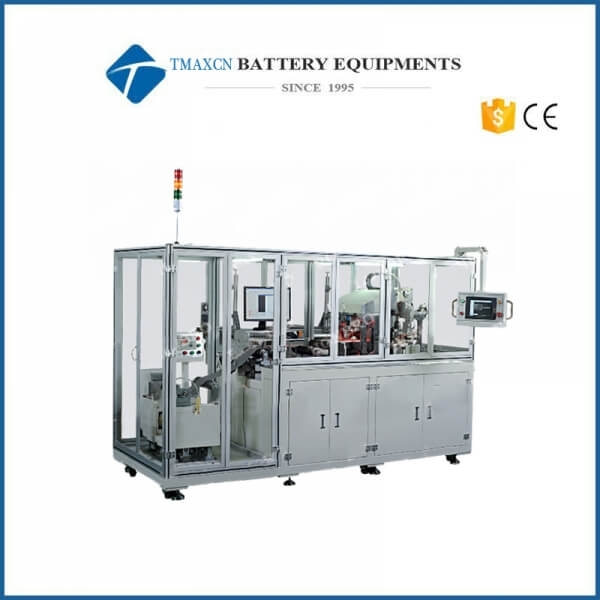

Automatic Lithium Battery Electrode Die Cutting Machine for Pouch Cell

  • Model Number:

    TMAX-A-006
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

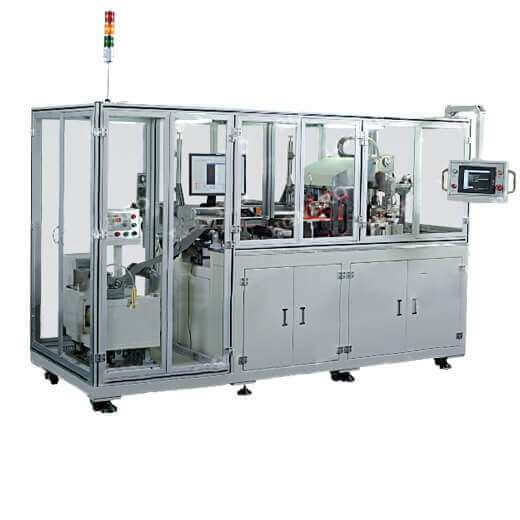

Automatic Lithium Battery Electrode Die Cutting Machine for Pouch Cell

Functions
This equipment is suitable for lithium ion battery gap coating, separated rolling she atically stacked in the feed box;

Highlights
Adopts frequency conversion motor automatically put volume, and with functions of rectification
Floating roller tension closed-loop control material, and storage of material function
High precision color optical testing positioning, fixed-length feeding servo for roller, and strip anti-skid functions
Sheet piece by cutting mold and sheet mold blanking forming at one time
Dual manipulator auto stacked sheet piece into the slot
Timely according to the height of laminated manger
Capacity: 25 to 40 times/min
Die adopts aviation aluminum alloy, reducing mold weight, decreasing mold impact
Adopt independent fixed feeding roller compaction, tear open outfit and convenient maintenance

Technical Parameters

ITEM

HBCQJ-200

HBCQJ-350

HBCQJ-450

Measure

1950*1350*1950mm

2200*1700*1950mm

2200*2200*1950mm

weight

About 1.5T

About 2.2T

About 2.8T

rate

3.5KW

3.5KW

4KW

power

AC220V/50HZ

AC220V/50HZ

AC220V/50HZ

Air source

0.6Mpa,260L/s

0.6Mpa,300L/s

0.6Mpa,350L/s

Vacuum source

-0.09Mpa,10L/Min

-0.09Mpa,10L/Min

-0.09Mpa,10L/Min

Applicable range

Length 90-350 width 40-200mm

Length 100-350 width 60-350mm

Length 100-350 width 80-450mm

Equipment capacity

20-40times/Min

20-40times/Min

15-35times/Min

Equipment optimal rate

98%

98%

98%

Burr precision

0.019mm

0.019mm

0.019mm

Mould life

Above 300 million times

Above 300 million times

Above 300 million times

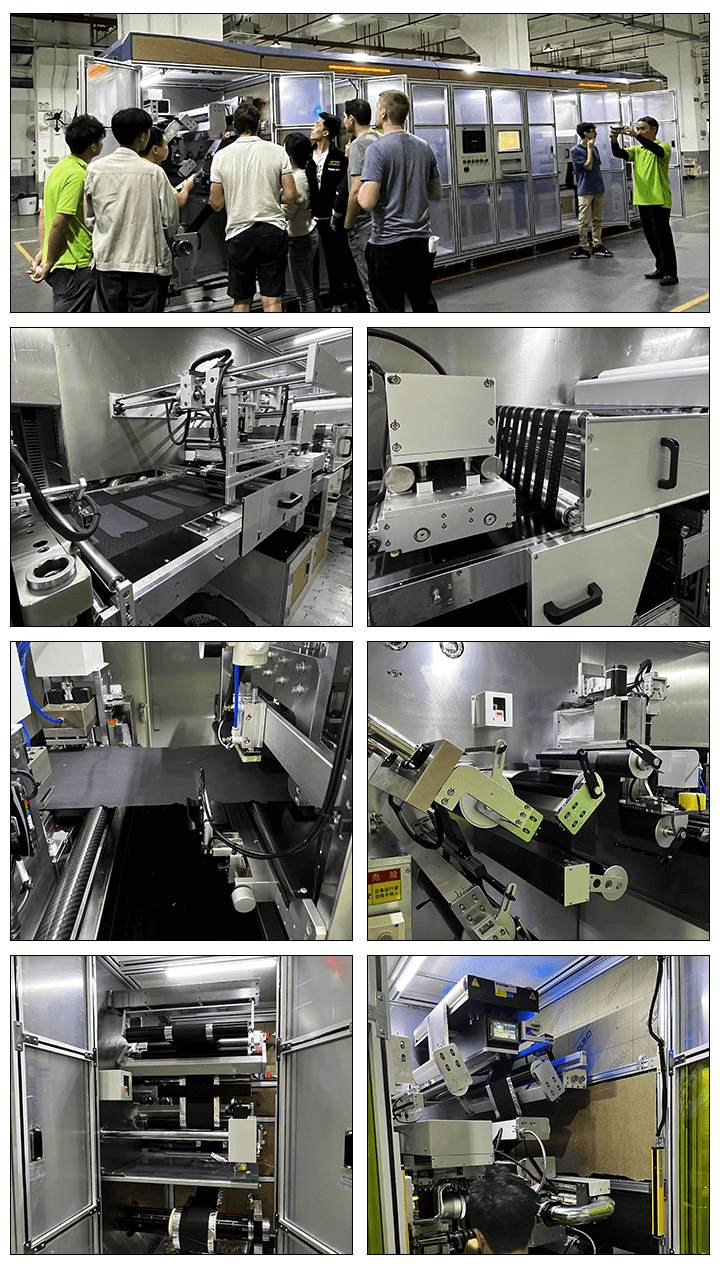

 Auto electrode sheet cutting machine







1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
