Electrode Die Cutting Machine

Automatic Pouch Cell Battery Electrode Die Cutting Machine

  • Model Number:

    TMAX-A-005
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

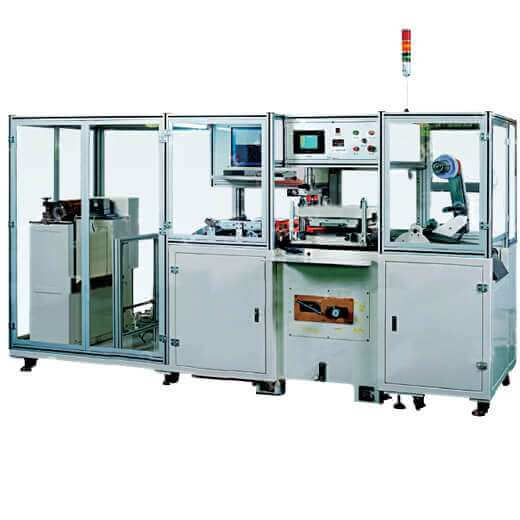

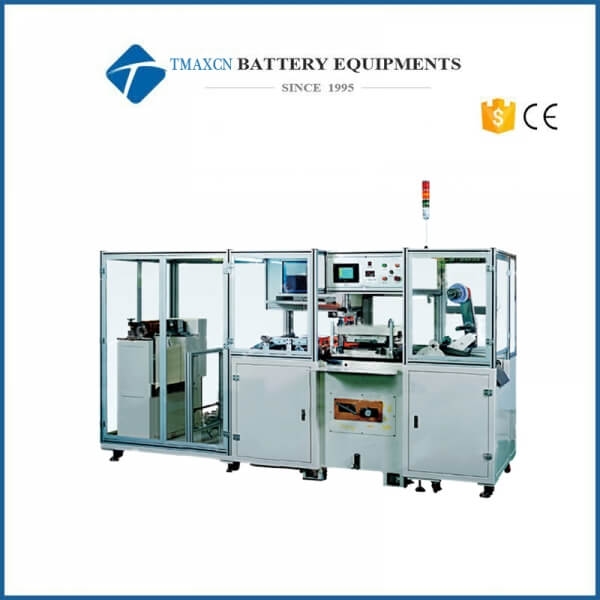

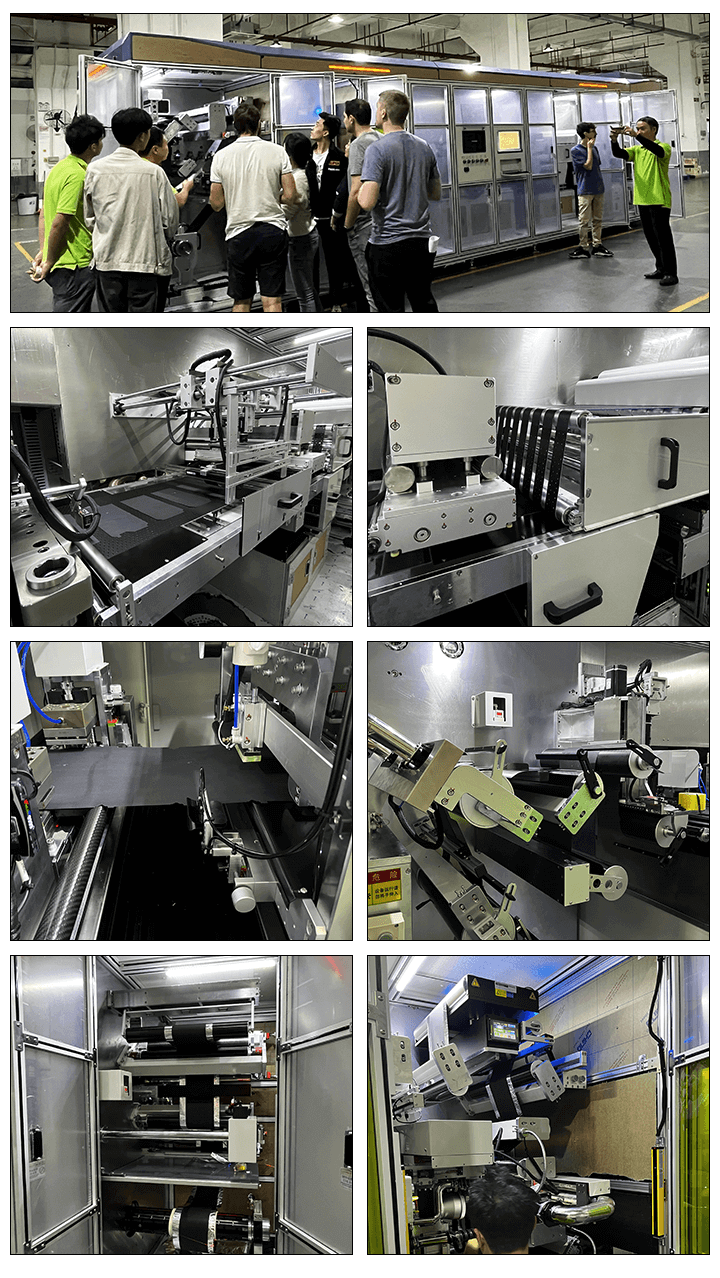

Automatic Pouch Cell Battery Electrode Die Cutting Machine

Functions
Apply laminated technology gap or continuous coated sheet die cutting, stacked process;
Raw material by rolling, floating roll tension control, automatic correction action again after feeding, automatic die cutting molding marching by slices manipulator will automatically stacked plate to lift in the manger; Auxiliary transport by carrier with the whole process, and a carrier with single put single ended, deviation, tension cache, dust, and other functions; Leftover material is transported by the carrier belt to leftover material collection barrels.
Slitting tool apron: novel 110 tool apron, Φ110 blades, repeatedly polished upper and lower blades

Highlights
By rolling, auto adjustment and connect with platform
Floating roller tension closed-loop control material, and storage of material function
Carrier with single put single closed, automatic correction and collecting
Floating roll strip tension closed-loop tension control
Carrier strip through the brush to dust suction device
Uses marching for accurately correcting strip
With high precision optical fiber positioning servo precision confirm length pinch and then feeding
Can die cutting several pieces in one time
Stacking manipulator automatically take into the trough
Trough adapt with the height of the anode/cathode properly
Retainer with the leftover material will be auto delivered to leftover material barrel, for collected
Top cone type rolling can be connected with auto rail car (optional)
Double rectifying deflection of feeding mode to ensure feed accuracy
Carrier have rewind function (optional)
Automatic trough replace with stacking trough slot transporting drawstring docking (optional)
Can be adapted to the incoming material for gap coating, continuous coating process



Technical Parameters

ITEM

HBMQ-350J(L)

HBMQ-450J(L)

HBMQ-530J(L)

Measures

3700×1400×1850(L×W×H)

3600×1750×1800(L×W×H)

4200×1600×1900(L×W×H)

weight

About3.5T

About4.5T

About6T

Power

AC 380V /50HZ, power4.5KW

AC 380V /50HZ, power 7.0KW

AC 380V /50HZ, power8.5KW

Air source

>0.6Mpa,20L/min

>0.6Mpa,20L/min

>0.6Mpa,20L/min

Action

>98%

>98%

>98%

Max forming area

L*W:330×260mm

L*W:430×380mm

L*W:530×400mm

Applicable  sheet range

L:50-260mm,W:30-320mm

L:60-430mm,W:50-380mm

L:80-420mm,W:50-530mm

Forming burr precision

0.03mm

0.03mm

0.03mm

Capacity

10-35 times/min

10-35 times/min

10-35 times/min

Feed material wide

350mm

450mm

530mm

Action

>98%

>98%

>98%

Cutting off powder

0.5mm

0.5mm

0.5mm

 Auto Electrode sheet blanking system







1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
