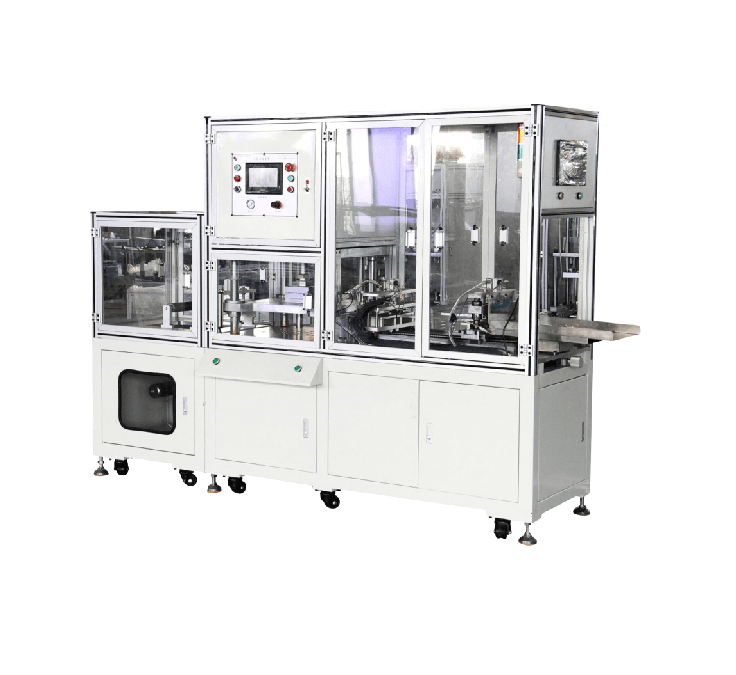

Automatic Pouch Cell Die Cutter for Battery Electrode

Features

1.The feeding length can be preset, the electronic ruler is displayed, and the touch screen setting is adjusted.

2.Aluminum plastic film floating roller tensioning, automatic discharge, with material detection function.

3.Configure 10T gas-liquid booster cylinder, servo stretch forming.

4.The robot servo feed, the length can be set through the screen.

5. The position of the cutter can be adjusted according to the length of the product, and the gap of the cutter can be pre-stressed and adjusted.

6. Using programmable controller PLC to achieve automatic control, touch screen to achieve man-machine dialogue, easy to operate settings.

7. The mold part is provided with light curtain safety protection, and the necessary door opening protection for the visual door.

8. With output statistics.

9. There are manual,automatic operation function, fault alarm function.

10. Combined frame: square through the lower frame, aluminum profile upper frame.

 Specifications



Voltage	AC220V/50Hz
Power	0.5KW
Compressed Air	≥0.6MPa 100L/min
Dimension	L2350 *W740 * H1800mm
Single Section Maximum Size	L1650 × W740 × H1800mm
Parallelism between the lower plane of the die shank and the bottom plate	0.2mm
Aluminum Plastic Film Tension	Floating roller tension
Punching Depth Accuracy	±0.1mm
Feeding Accuracy	±0.2mm
Electronic Ruler Accuracy	0.01mm
Cutting Knife Life	1 million times (repair)
Equipment Ccapacity	500-700 / H (depending on product size and mold selection)
Applicable Mold	Three-piece mold and spring mold can be used (with 1 set of mold)
Activity Rate	95%
Pass Rate	99.5%
Pressurized Cylinder	10T
The Diameter of the Coil	<Φ350mm
