Environmental Constant Temperature Humidity Box

In Stock Alternating Temperature Humity Cabinet Equipment

  • Model Number:

    TMAX-408-D
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

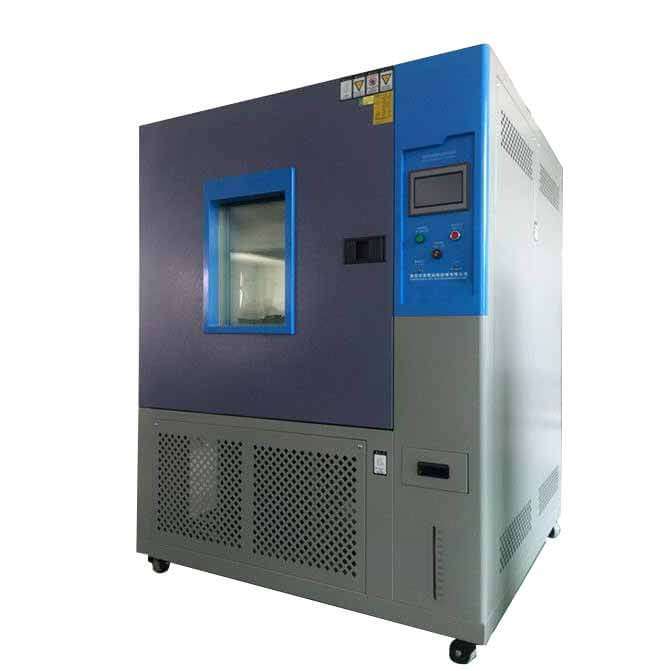

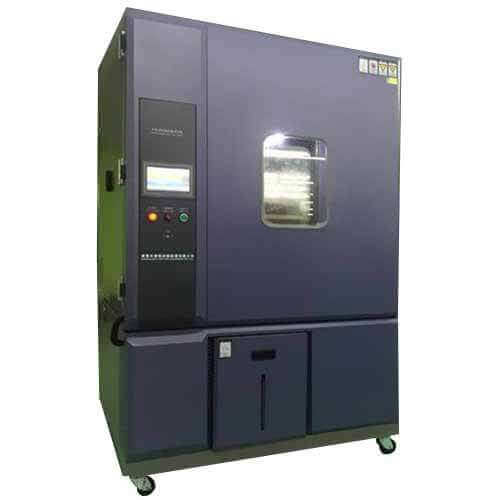

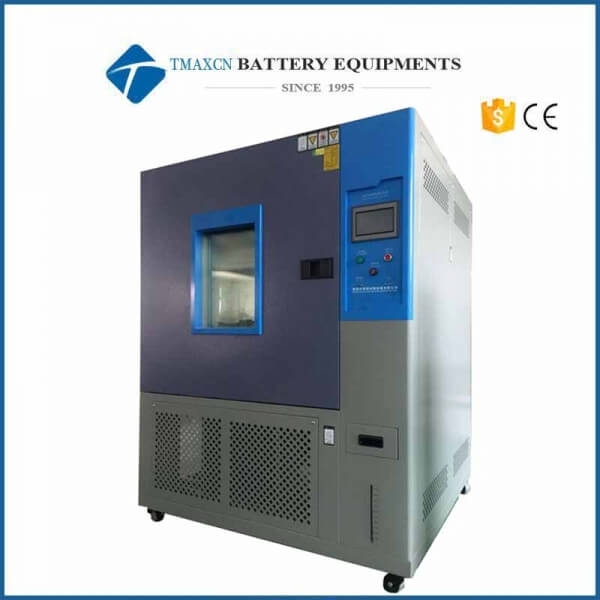

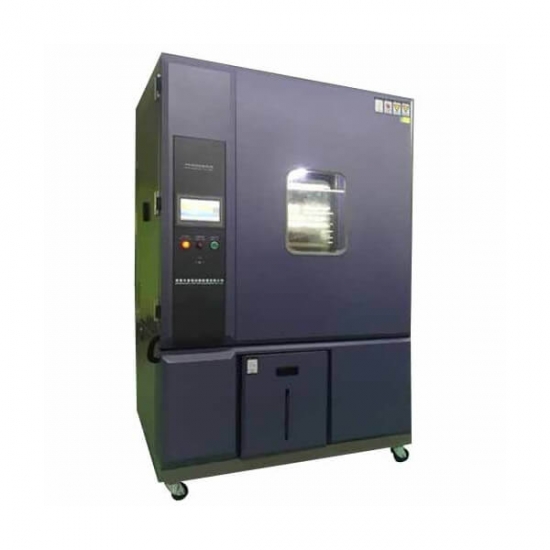

In Stock Alternating Temperature Humity Cabinet Equipment


Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.



 Model TMAX-80(A~F)  TMAX-150(A~F) TMAX-225(A~F) TMAX-408(A~F) TMAX-800(A~F) TMAX-1000(A~F)
Internal Dimension
WxHxD (mm)
 400x500x400  500x600x500  600x750x500  600x850x800  1000x1000x800  1000x1000x1000
 Internal Dimension WxHxD (mm)  950x1650x950  1050x1750x1050  1200x1900x1150  1200x1950x1350  1600x2000x1450  1600x2100x1450
 TemperatureRange  Low Temperature(A:25°C  B:0°C  C:-20°C  D:-40°C  E:-60°C  F:-70°C)
 High Temperature 150°C
 HumidityRange  20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
Analytic Accuracy/
Distribution uniformity of
temperature and humidity
 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
Control Accuracy of
Temperature and Humidity
 ±0.5°C; ±2.5% R.H.
Cooling System Wind cooling or water cooling/single segment compressor(-40°C, double segment compressor -70°C)
Temperature Rising/Falling
Speed Rate
 Temperature rising approx.  0.1~3.0°C/min
temperature falling approx.  0.1~1.5°C/min;
( The Falling Speed Rate Min.1.5°Cper minute is a special optional condition)
Power  AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
Approx. Weight (Kg)  150  180  250  320  400  450


Environmental Constant Temperature Humidity Box

Environmental Constant Temperature Humidity Box

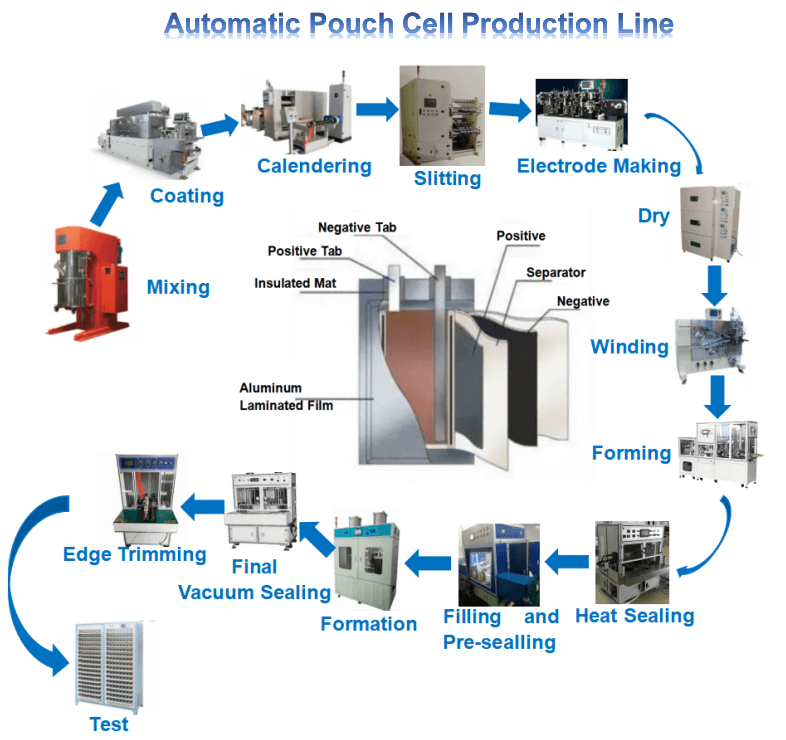

pouch cell production machine
