Battery Short Circuit Tester

Battery High Current External Short Circuit Tester up to 2000A

  • Model Number:

    TMAX-BE-1500A
  • Compliance:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

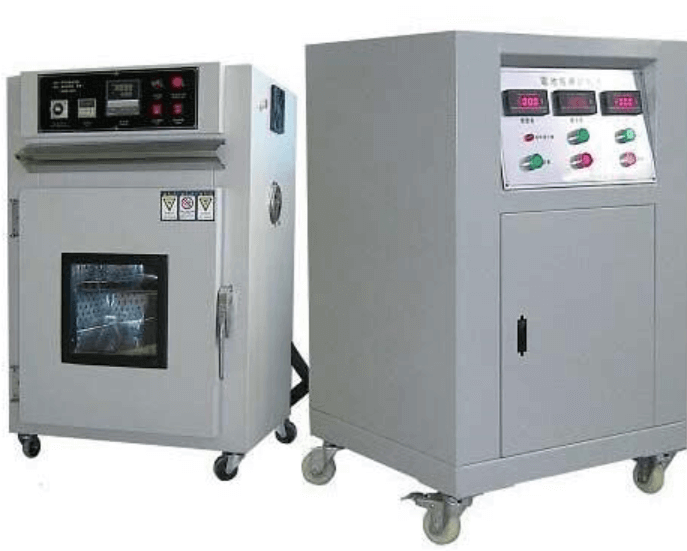

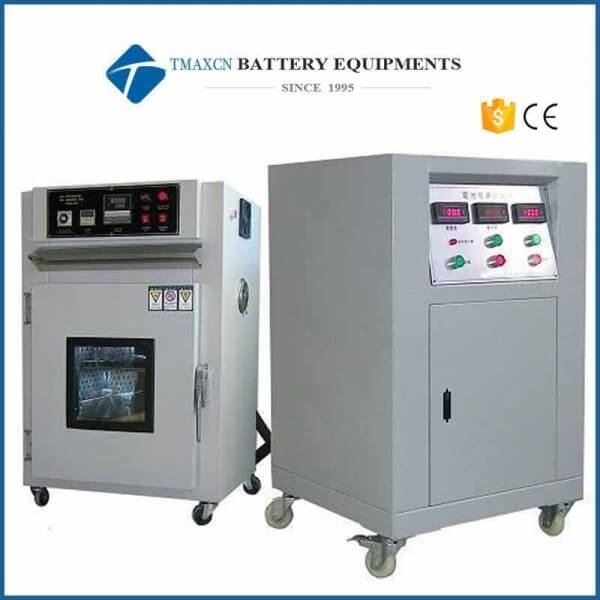

Battery High Current External Short Circuit Tester up to 2000A


Short Circuit Test system designed for testing rechargeable batteries & packs under short circuit conditions with high current.


For more information about Explosion-Proof Test Chamber, please contact us!


SPECIFICATIONS

Type

TMAX-BE-1500A

TMAX-BE-2000A

 TMAX-BE-5000A

Short circuit current

1500A

1000A2000A

 2000A5000A

Temperature  explosion - proof box

0~100°C can be choose

DC Response Time

≤5us

Device resistance

≤5mOhm

Remote distance

7m No solid obstacle

Short circuit time

1~9999S or 1M~99H59M can be set

Dimension

W650*D750*H950mm

Explosion-proof box size

W800*D1000*H1000mm,thickness:8mm

Power supply

AC220V 50HZ

Power

1.0KW

Weight

About330Kg

Short Circuit Tester

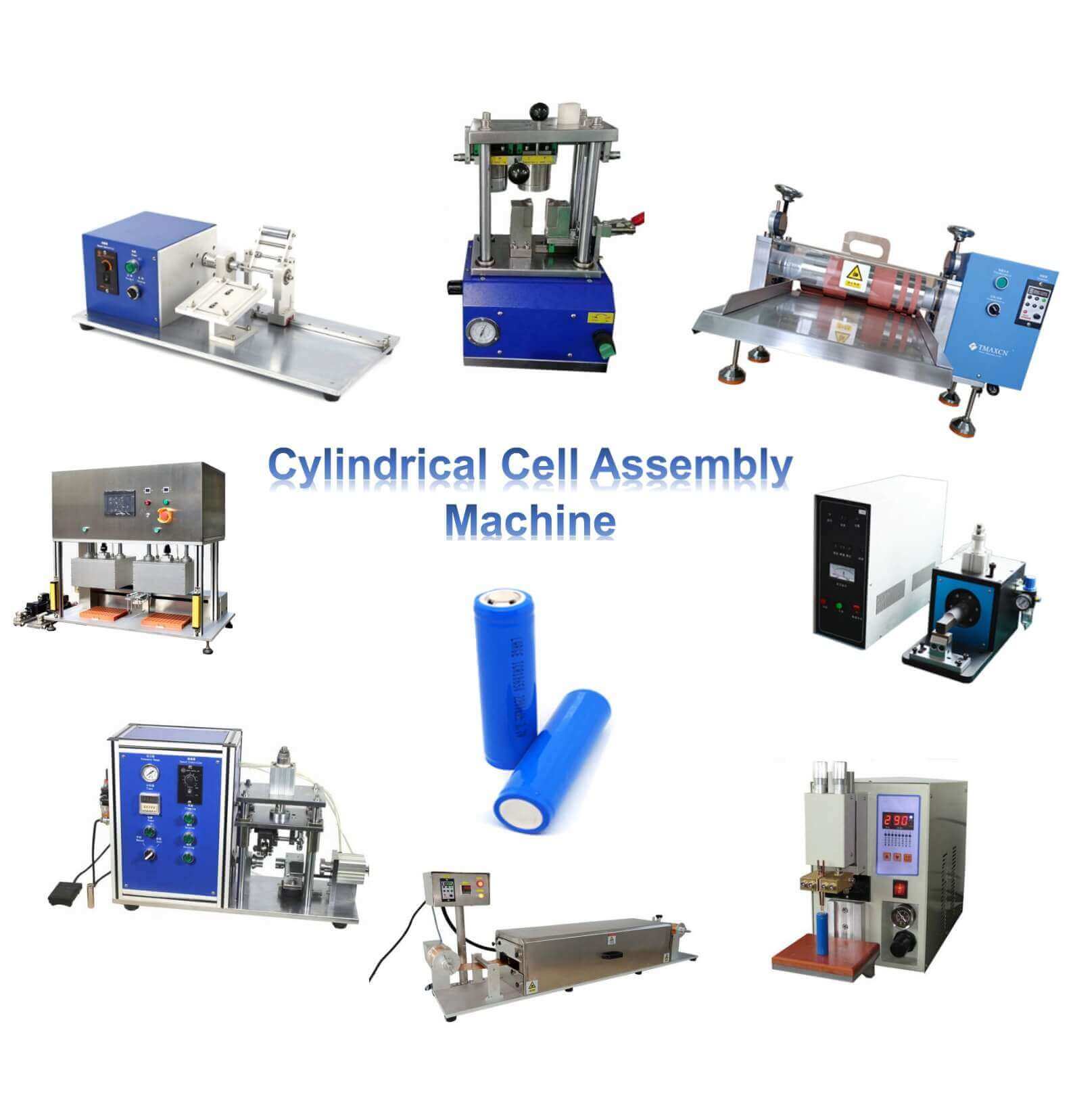

Cylindrical Cell Machine

Pouch Cell Preparation

coin cell assembly

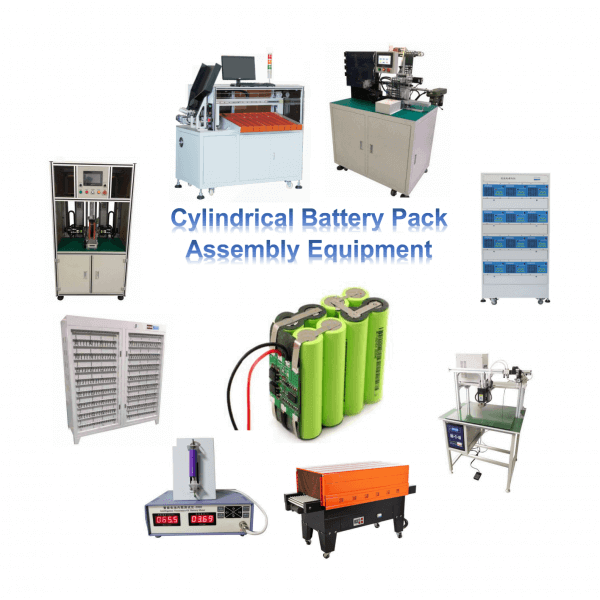

Battery Pack Assembly Line
