Vacuum Mixer Machine

Centrifugal with Stainless Steel Swing-out Rotor Kit

  • Model Number:

    TMAX-Stainless Steel
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Place of Origin:

    Fujian, China (Mainland)
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

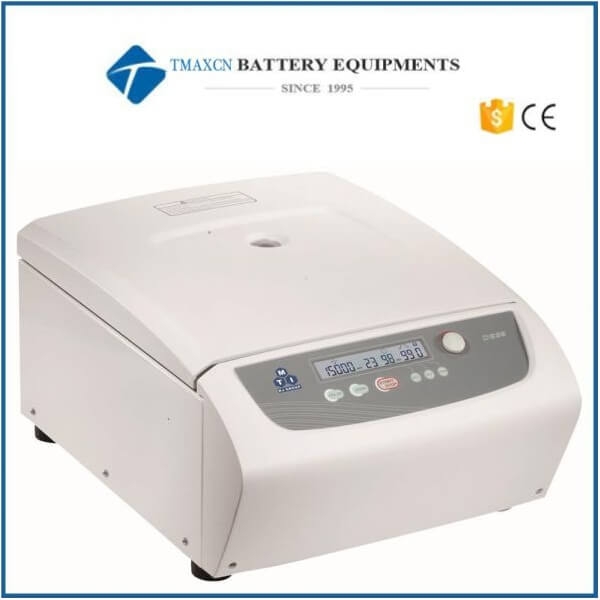

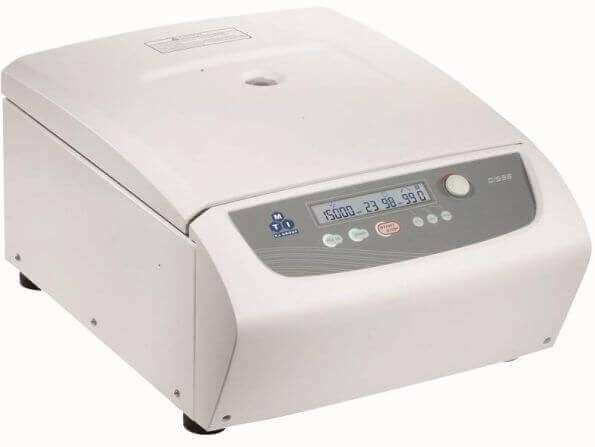

Centrifugal with Stainless Steel Swing-out Rotor Kit


The centrifugal  EQ-DM-0636 is designed for separating dense substances from the media along the radial direction. It could be used for high throughput sample preparation.


SPECIFICATIONS:

Features


· The centrifugal is suitable for tubes with caps

· The swing-out bucket rotor is compatible with standard tubes up to 100 mL

· Speed Range from 300 rpm to 6,000 rpm

· Maximum capacity of the mixing and mill: 100 mL x 4

· 9 programmable segments; store up tp 9 programs in memory

· Maintenance-free brushless DC motors

Voltage Input

· AC 110V or AC 220V, single phase, 50 / 60 Hz

· Please select the working voltage from product options

Power

· Maximum 1200 W

Rotating Speed

· Brushless DC motor

· 9 programmable segments; store up to 9 programs in memory

· Max reactive centrifugal force: 4300xg

· Speed from 300 rpm to 6,000 rpm

· Increment: 10 rpm

· Speed accuracy: +/- 20 rpm

Tube Container Capacity

· Swing-out rotor: Maximum 100 mL x 4

· Optional Angle fix rotor: Maximum: 50 mL x 6

Timer

· 1 - 99 minutes

· The centrifugal process could be held and continued

Safety and Protection

· Dual door safety interlock

· Over-speed protection

· Chamber and motor over-temperature protections

· Imbalance detector

Dimension

· 364 mm L x 280 mm W x 266 mm H

Net Weight

· 40 kg

Detailed Images

                    Stainless Steel

Our Certifications



Cooperative Brand

Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Planetary Vacuum Mixer

Packing & Delivery

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
