Vacuum Mixer

Compact Dual-Shaft Planetary Vacuum Mixer Machine

  • Model Number:

  • Input Power:

  • Dimension(L*W*H):

    330 mmx320 mmx570 mm
  • Net Weight:

    40 kg (88 lbs)
  • Compliance:

    CE Certified
  • Warranty:

    2 year
  • Place of Origin:

    Fujian, China (Mainland)
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
Product Details

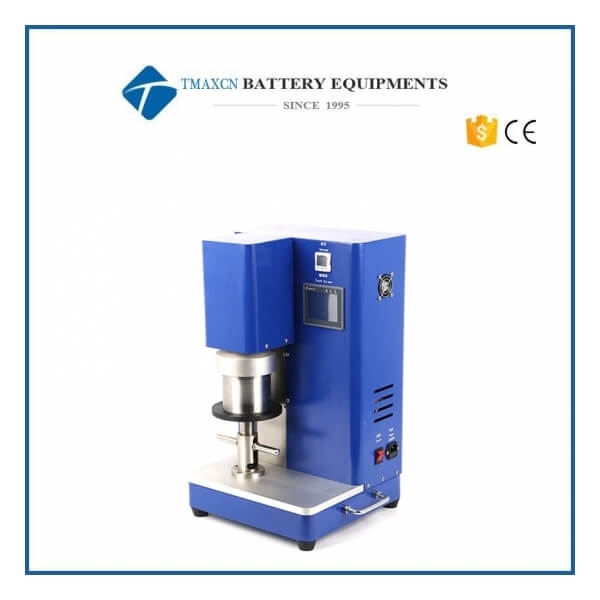

Compact Dual-Shaft Planetary Vacuum Mixer

TMAX-XJB is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. It is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab. Welcome new and old customers to contact us for slurry mixer.


Voltage Input & Power

One UL listed 100-240 VAC IN

Rotary Speed

0 - 600 rpm

Mixing Container

1. One 500 mL stainless steel vacuum sealed container is included.

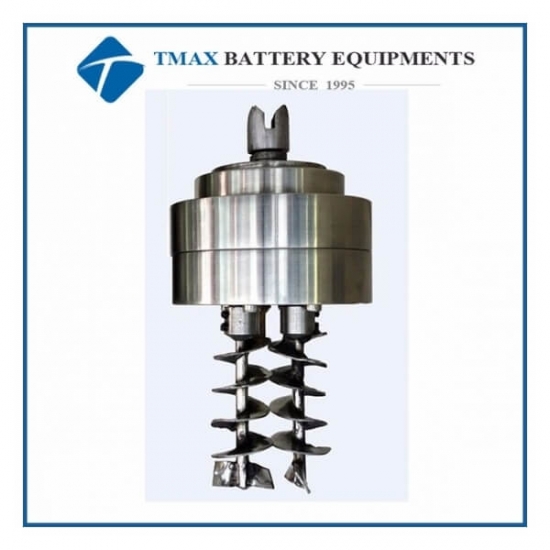

2. Dual helical ribbon mixing blades are built on the lid of the container.

Vacuum Pump

Built-in single stage vacuum pump
Vacuum Level: -0.08 MPa

Contol Panel

1. Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off
2. Mixing Time: 0 - 600 minute
3. Mixing Speed: 0 - 600 RPM and 3 segments programmable
4. Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry

Timing Range

0 to 120 minutes for built-in mechanical timer

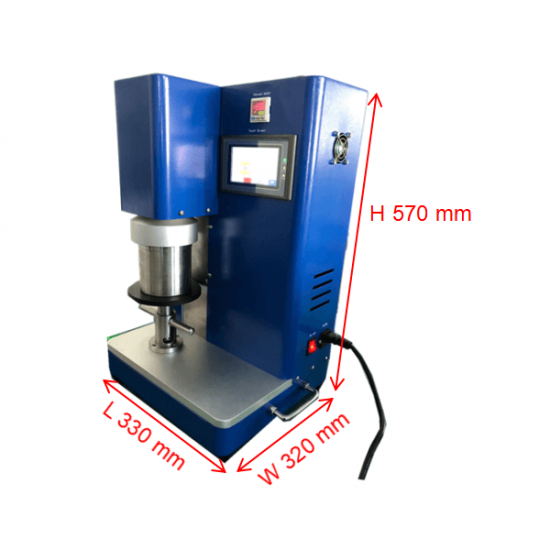

330 mm x 320 mm × 570 mm


CE Certified


two years limited warranty with lifetime technical support

Net Weight

40 kg (88 lbs)

Detailed Images

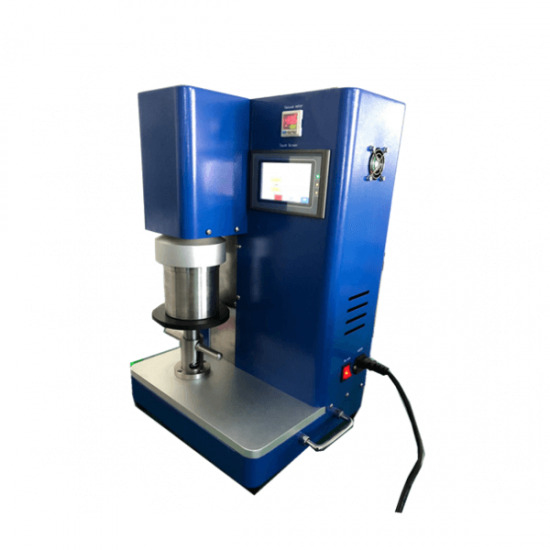

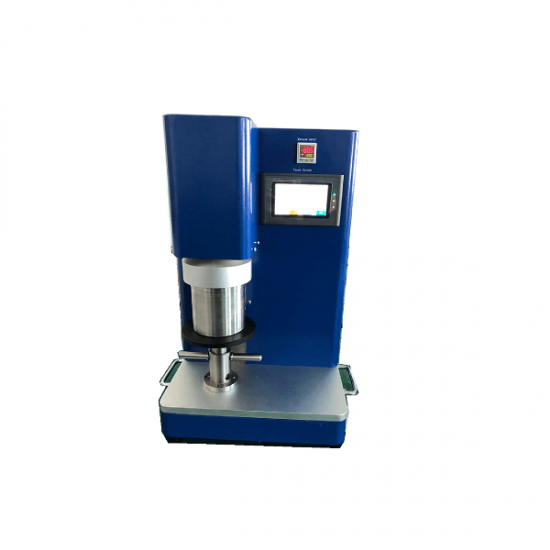

vacuum mixing machine vacuum mixer

Vacuum Mixer Machine


                    Planetary vacuum mixer powder

Cylindrical Cell Preparation

Our Certifications


Cooperative Brand


Hot Sale Products

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

Planetary Vacuum Mixer

Packing & Delivery

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
