Cryogenic Ball Mill

Cryogenic Planetary Ball Mill With Jars

  • Model Number:

    TMAX-BallMill-80
  • Input Power:

    1kw
  • Dimension(L*W*H):

    800*470*560 mm
  • Compliance:

    CE Certified
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

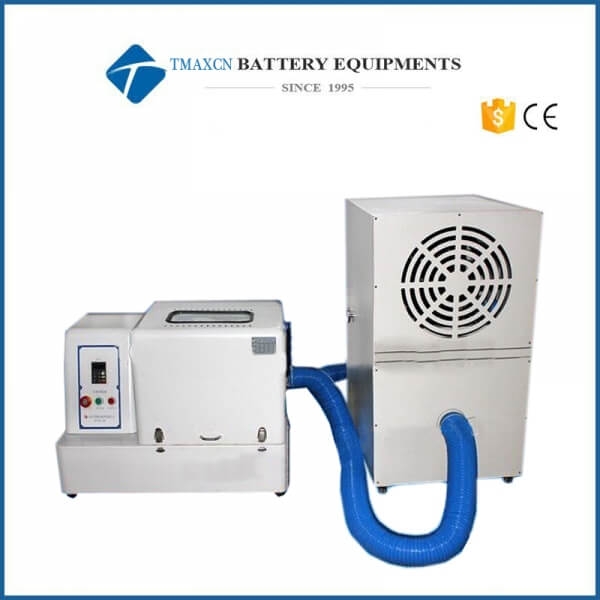

Cryogenic Planetary Ball Mill With Jars

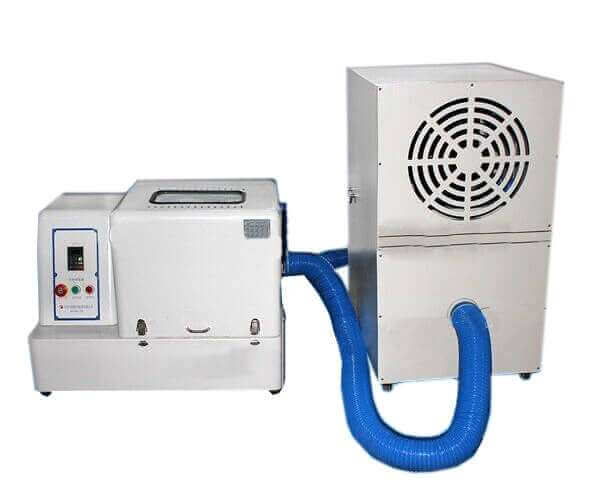

Cold-air planetary ball mill is composed of planetary ball mill and cold-air device. Cycling of cold air quickly

takes away the heat generated by grinding by means of air conditioning refrigeration principle, and temperature

inside the grinding space can be controlled at 2-10 °C according to temperature difference of working

environment. Cold-air planetary ball mill is mainly applied to ultrafine grinding under condition of low

temperature requested by materials.Compared with the artificial injection of liquid nitrogen cooling, cold-air

planetary ball mill is much easier and more convenient to be operated, it is also cost-saved, and low-energy

consumed. Such a cold-air device can be also applied to assembly other models like vertical ball mill,

horizontal ball mill, 360 degree ball mill and dual ball mill.

Type No.

Dimension(mm)

Max Rotation Speed(rpm)

Power(kw)

BALLMILL-0.4

560*470*730

670

0.75

BALLMILL-1

560*470*730

670

0.75

BALLMILL-2

560*470*730

670

0.75

BALLMILL-4

560*470*730

670

0.75

BALLMILL-6

1050*730*810

670

0.75

BALLMILL-8

1050*570*700

580

1.5

BALLMILL-10

1050*570*700

580

1.5

BALLMILL-12

1050*570*700

580

1.5

BALLMILL-16

1260*640*780

480

3

BALLMILL-20

1500*700*850

430

4

BALLMILL-40

1500*770*900

430

5.5

BALLMILL-60

1530*900*1020

420

7.5

BALLMILL-80

1750*990*1130

420

11
