electrode-slitting-machine
  • Electrode Slitting machine Semi-Automatic Slitting Machine for Electrodes of Cylinder Battery

    Semi-Automatic Slitting Machine for Electrodes of Cylinder Battery TMAX-FT300 is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories

  • Electrode Slitting Machine Automatic Roll-to-Sheet Cutting Machine for Battery Electrode

    Automatic Roll-to-Sheet Cutting Machine for Battery Electrode TMAX Limited manufactures the TMAX-ZHQ300, a new automatic Roll-to-Sheet Cutting Machine which can quickly and accurately transform a roll of battery electrode into the sheets with desired length.   Outstanding Features: 1. PLC Control is fully programmable and adaptable to the needs of each job. 2. Automatic operation eleminates the risks of accident in cutting operation. 3. Unreeling auto-tension control. 4. Stainless steel made transfer & tension rods help minimize the chloridion which may cause negtive effects to the electrode quality. 5. Continuous cutting with two selectable cutting modes: "Cut-to-length" and "Color Mark Detection Cutting". 6. Compensation adjustment at the cutting edge. 7. Set dsired number of cuts.

  • Laboratory Slitting Machine Laboratory Lithium Polymer Battery Semi-automatic Slitting Machine Aluminum Cutting Machine

    Lithium Battery Slitting Machine For Electrode Slitting 1 TMAX-DYG-110A model Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line. 2 The slitting machine can slit electrode with width up to 400mm, and with finished slitting width from 20mm to 400mm with different model cutter blade. 3 This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.

  • Electrode Slitting Machine Electrode Slitting/Cutting Machine

    Electrode Slitting/Cutting Machine For Sale The slitting machine TMAX-MSK-300 is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.

  • aluminum foil cutting machine Pouch cell edge cutting and aluminum foil cutting machine

    Product Application 1 The Automatic shear cutting machine is mainly used for lithium battery big electrode cutting after coating process or after continuous rolling press process. Cutted big electrode is more easy for slitting or punching to small pieces for battery making. 2 TMAX-DYG-140B-500mm model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.

  • slitting Machine Electrode Slitting Machine For Battery Electrode Piece With Max 600mm Width

    I.Specifications   The equipment is used in slitting the pasted electrodes-plates of rechargeable Li-ion batteries. The substrate of electrode-plate is steel belt or copper belt. The verge of the cut plate is tidy, size of cut plate is of high precision, and the slit plates loss no powder, so the equipment is the important one in processing the electrodes-plates.   II .Technical Data:   1,   Power:1.1KW   2,   Dia:Φ84mm   3,   Speed:10m/min   4,   Slitting Precision:±0.05mm   5,   Max Slitting Size:400mm-600mm   6,   Slitting Quantity:According to User’s Battery Technology(Standard size above 35mm);      7,   Quality:Tidy, No Burr.   1 TMAX-DYG-110A model Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line. 2 The slitting machine can slit electrode with width up to 400mm, and with finished slitting width from 20mm to 400mm with different model cutter blade. 3 This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.

  • Electrode Slitting Machine 18650 cell battery electrode slitting machine

    MSK-300 is a semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.

  • Roll Slitting Machine Battery Electrode Roll Slitting Machine For R&D Laboratories

    1 TMAX-MQ300A semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.   2 This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.   3 High speed, high accuracy, long lifetime to make cutted electrode without burr, to get a good consistency.   4 This model has max die dimension with 200*300mm, if need other models, please choose the TMAX-JD-500model with max die size up to 500*500mm.

  • slitting machine Lithium battery copper foil slitting machine with adjustable slitter knife

    Copper foil slitting machine  1 Used for li ion battery small electrode slitting  2 With adjustable knife function

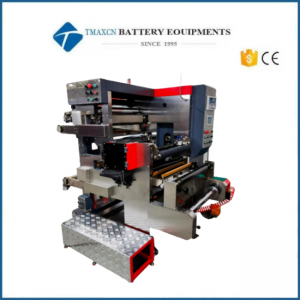

  • Roll Slitting Machine High Speed Aluminum Laminated Foil Roll Slitting Machine

    High speed slitting machine  1 For battery anode/cathode electrode continuous slitting  2 Customized cutter knife  3 High speed
