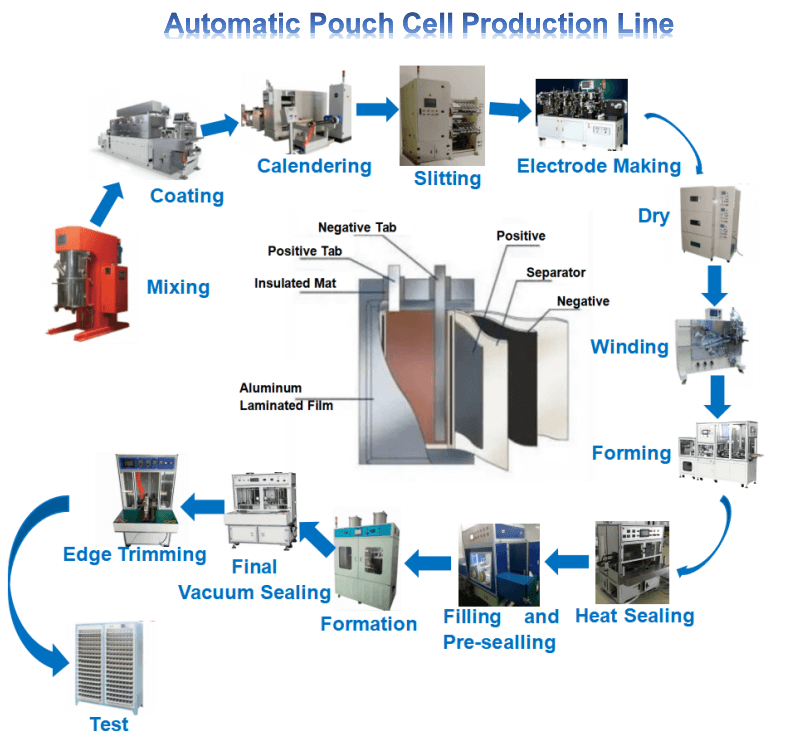

Pouch Cell Battery Making Equipment, Pouch Cell Production Equipment

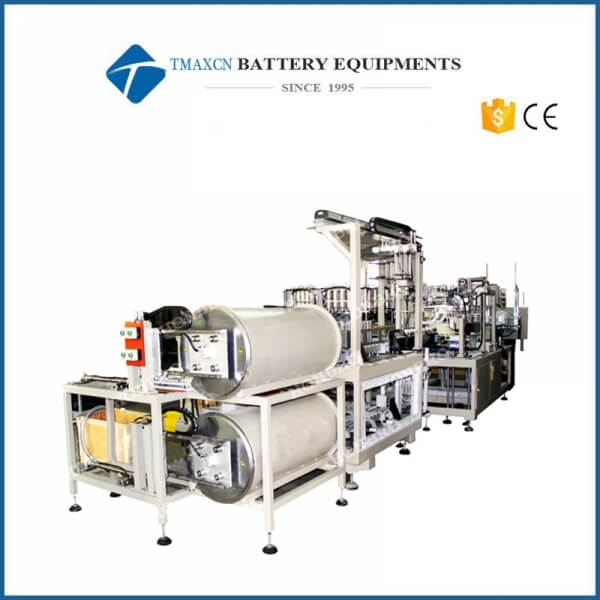

Fully-auto prismatic EV-battery filling machine

  • Model Number:

    TMAX-A-026
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

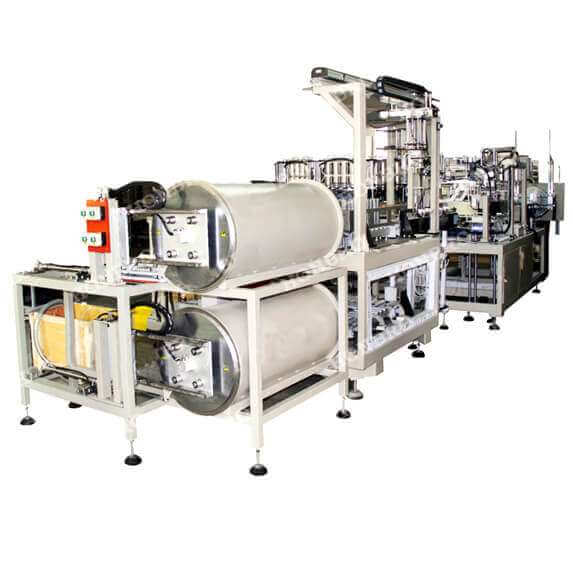

Fully-auto prismatic EV-battery filling machine

Functions
It is used to EV-battery auto filling. To finish auto battery feeding, battery cooling storage, insulation resistance test, scan code & weight, NG sorting before filling, auto filling, auto recycle and keep holding, NG sorting & collection after filling, re-filling NG battery, wipe the filling hole & the stopper by manual, into transfer tray, auto go to interim chamber.

Features
The battery tray auto feeding, battery cooling storage 1 hour
Filling cup double layers design, blocking rod steel seal, easy to clean, the blocking rod & seal head can be used recycle.
Equip Picking up liquid trough to avoid the residual electrolyte polluting equipment.
Auto electrolyte mixing system, remove air bubble, avoid dropping electrolyte
Auto clean system to clean filling pump & cup regular

Technical Parameters(for reference)

ITEM

MAIN PARAMETERS

Dimension

L x W x H 5000x2450x1800mm

Weight

About 4.5T

Power supply

AC380V/50HZ, 7.5KW

Air source

0.6Mpa, 30L/min

Vacuum source

-0.09Mpa, 40L/S

Applicable battery range

H 100-240, W 100-180, T 10-50mm

Capacity

 4.5PPM(Holding time 15mins, filling volume 300g)

Action

98%

Filling volume

0-500g, adjust

Filling precision

L x W x H 5000x2450x1800mm

Weight precision

About 4.5T

Dimension

AC380V/50HZ, 7.5KW

 Fully-auto prismatic EV-battery filling machine






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
