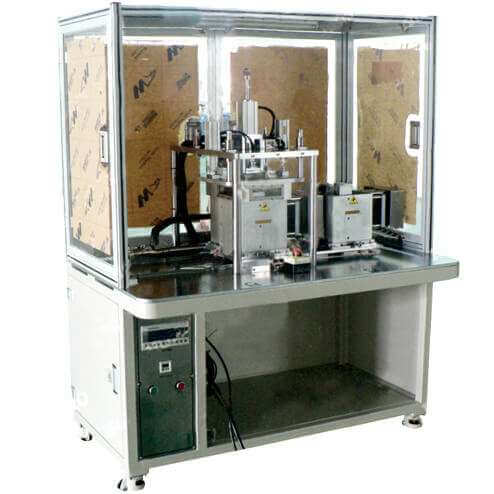

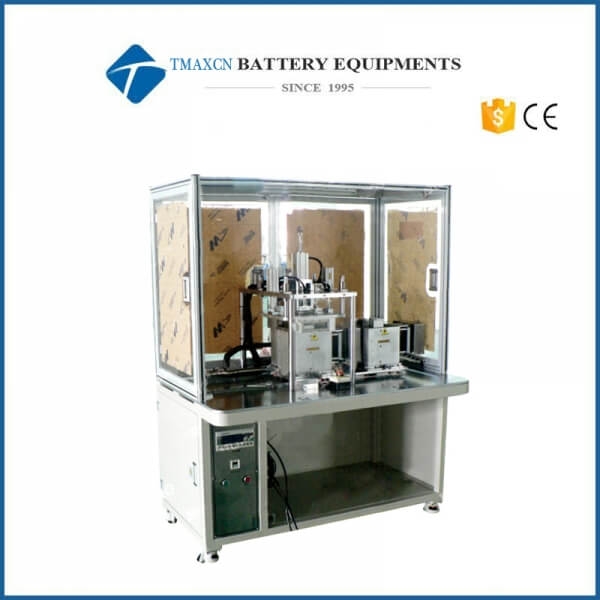

Semi-auto vacuum steel ball sealer
Functions
● It is used to vacuum steel ball sealer for big size prismatic EV-battery.
Features
● Double chambers, recycle, battery deeding & steel ball sealer are operation
at the same time, chamber recycle precision ±0.1mm.
● Adopt air cylinder straight line cycle, hydraulic
buffer limit, move stability.
● Steel ball storage in stainless steel vessels, avoid
magnetic
● Piston type send steel ball, avoid empty sealer or
repeat steel ball sealer.
● Use the air cylinder to seal steel ball, easy to
adjust air pressure.
Technical Parameters(for reference)：
| ITEM |
MAIN PARAMETERS |
| Dimension |
L x W x H ≈1000x500x1800mm |
| Weight |
About 0.15T |
| Power supply |
AC220V/50HZ, 0.2KW |
| Air source |
≥0.6Mpa, 30L/min |
| Vacuum source |
≤ -0.09Mpa, 10L/S |
| Applicable battery range |
L 80-150, W 15-40, H 100-210, Filling
hole dia 1.3-1.8mm |
| Capacity |
80-200PCS/H |
| Action |
≥99% |
