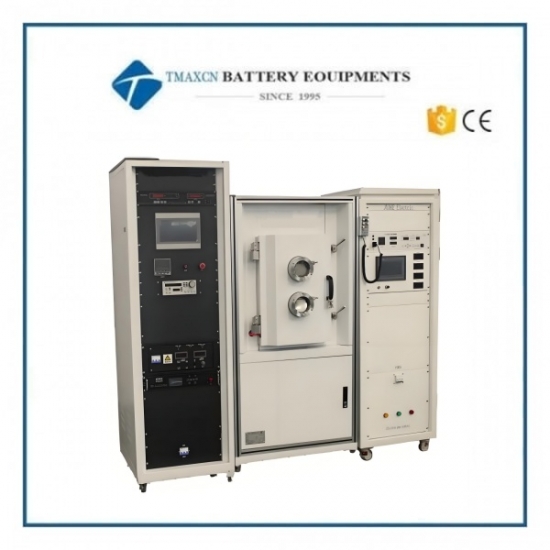

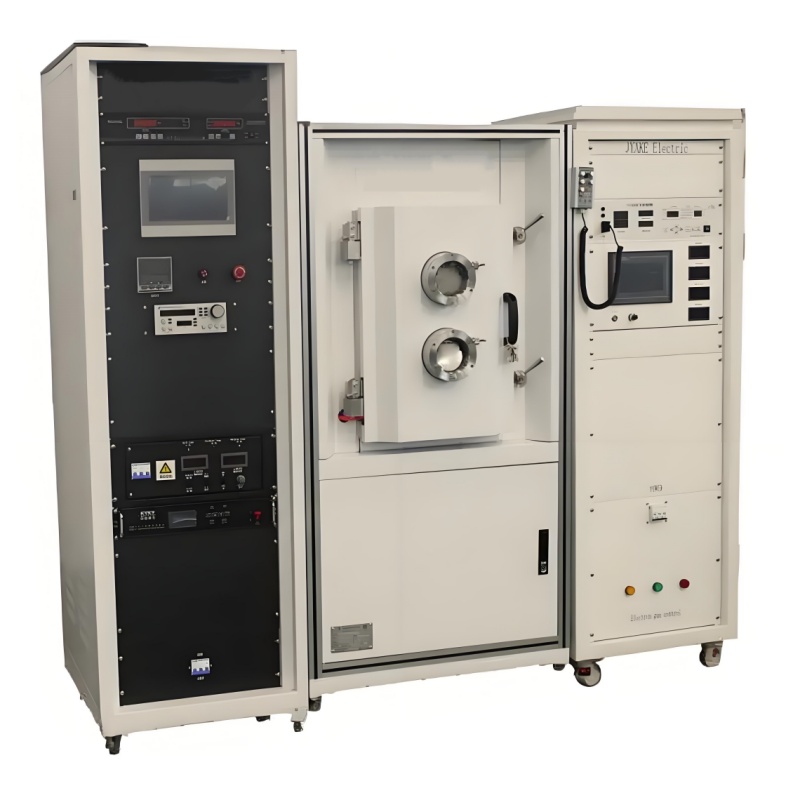

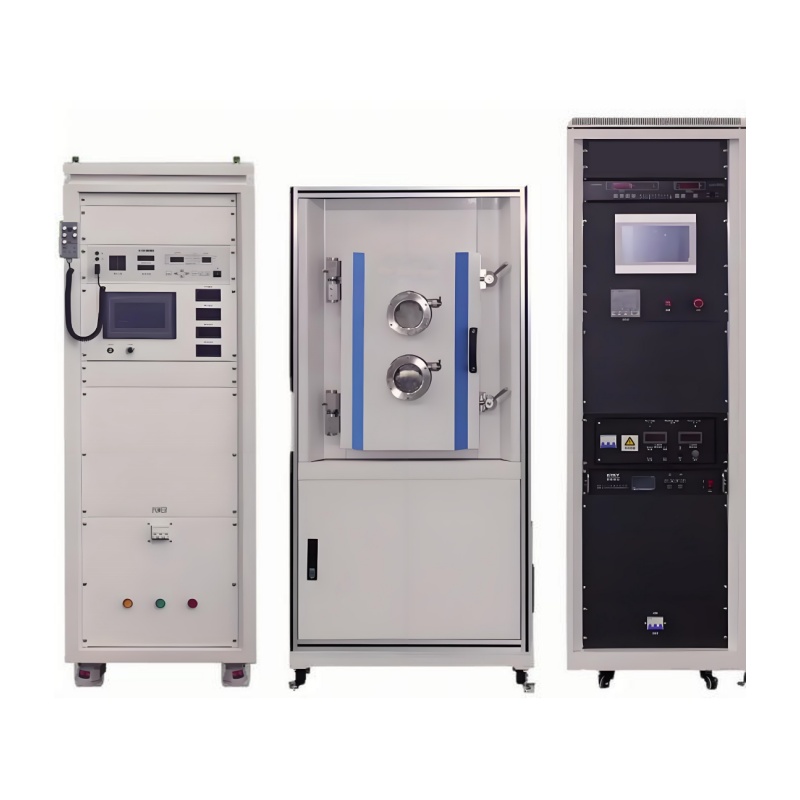

Glovebox Thermal Evaporation Coating Machine Unit With Multi-Source





TMAX-TK-ZD01-High-Vacuum Multi-Source Evaporation

---

Key Specifications

Parameter	Specification
Model	TMAX-TK-ZD01
Coating Method	Multi-source evaporation deposition
Chamber Structure	Vertical cylindrical, front-opening
Chamber Dimensions	Φ650mm × H800mm
Heating Temperature	Room temperature ~ 300°C
Substrate Holder	Flat plate or umbrella-type
Film Uniformity	≤ ±5.0%
Evaporation Sources	2-3 metal evaporation source groups
Control System	PLC/PC (optional)
Footprint (Main Unit)	L1000mm × W1200mm × H1900mm
Total Power	≥ 12kW

---

Advantages & Competitive Features

1. Superior Film Uniformity & Repeatability

· ≤ ±5.0% thickness variation ensures high-quality, consistent coatings—better than many entry-level systems (±8–10%).

· Ideal for precision optics, semiconductor layers, and functional coatings where uniformity is critical.

2. Multi-Source Flexibility for Advanced Applications

· 2-3 independently controlled evaporation sources allow multi-layer & alloy deposition in a single run.

· Competitors often limit to single-source setups, requiring multiple cycles for complex coatings.

3. Enhanced Process Control & Adaptability

· Optional PLC/PC automation improves repeatability vs. manual systems, reducing human error.

· Wide temperature range (RT–300°C) supports diverse materials, from delicate polymers to high-temp substrates.

4. Space-Efficient & User-Oriented Design

· Compact footprint (1m × 1.2m) fits small labs, unlike larger industrial systems (e.g., 1.5m+ width).

· Front-loading vertical chamber simplifies maintenance and sample handling vs. bulky horizontal designs.

---

Comparison with Similar Systems

Feature	This model	Typical Entry-Level Competitors	High-End Industrial Models
Film Uniformity	≤ ±5.0%	±8–10%	≤ ±3.0%
Evaporation Sources	2-3 (multi-material capable)	1-2 (limited alloys)	4+ (complex stacks)
Automation	PLC/PC optional	Manual or basic controls	Full automation
Footprint	Compact (1m × 1.2m)	Similar or larger	Large (1.5m+ width)
Cost Efficiency	Best balance for R&D/small production	Lower cost, less precision	High cost, overkill for labs

---

Recommended Applications

· R&D & Prototyping: Universities and labs needing controllable, small-batch coatings.

· Optoelectronics: Anti-reflective films, conductive layers for displays/sensors.

· Decorative Coatings: Durable metallic finishes on consumer products.
