Thermal Shock Test Chamber

High Low Temperature Cold and Hot Impact Simulate Climatic Condition Thermal Shock Tester Chamber

  • Model Number:

    TMAX-KSC
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

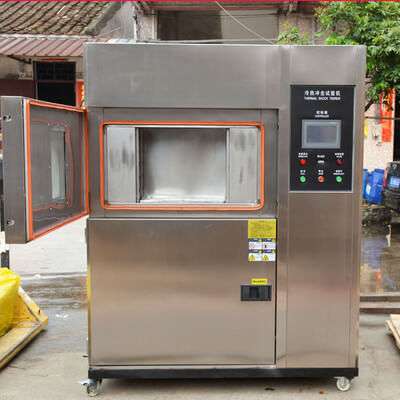

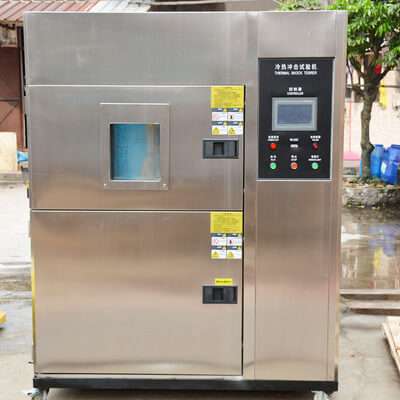

High Low Temperature Cold and Hot Impact Simulate Climatic Condition Thermal Shock Tester Chamber


This series of cold and hot impact test chamber is mainly used to test the resistance of materials to extremely high or low temperature, which is similar to the situation of discontinuous high or low temperature. The cold and hot impact test can make all kinds of items complete the test in the shortest time. The change of thermal epicenter or physical damage is caused by the change of thermal expansion and contraction or other physical values. The effect of thermal shock includes the electrochemical change caused by the cracking or layer breaking of finished products and displacement. The full digital element automatic control of PID system will make your operation easy.


Specifications

Temperature range

-40℃~150

High temperature chamber

+40℃~150℃

Low temperature chamber

0℃~-40℃;

Temperature conversion

10S

Temperature fluctuation

±2;

heating rate

0150℃≤50min;

cooling rate

0-40℃≤65min;

Lower limit of refrigeration

-40;

Impact temperature

+150-40;

Temperature recovery

5min;

Load bearing of sample

 10Kg

Chamber size

W350mm×H350mm×H400mm(the size can be customized)

Outer box size

W1100×H1800×D1000mm

Inner box material

SUS304 mirror stainless steel plate

Material of outer box

SUS304 brushed stainless steel plate

Box door

Single panel door, left open, handle on right

Specimen placing

Not more than 20 kg

Test hole

One 50mm test hole on the left side of the machine body, one stainless steel hole cover and one silica gel plug.

Test body

DNA grade a SS304L stainless steel Pt 100Ω platinum resistance 2 (Taiwan)

Insulation material

High efficiency polyurethane foam + glass rock wool

heating system

Fin type heat pipe type stainless steel electric heater

temperature measurement

Pt100 platinum resistance

The main controller adopts imported double circuit high precision LCD touch screen temperature controller

The controller adopts temi880 color LCD touch screen imported from Korea, which can display the setting parameters, test curve, running time, heater working state and PID parameter self-tuning function. The programming of the control program adopts man-machine dialogue mode, and the automatic operation function of the refrigerator can be realized only by setting the temperature. The control system has perfect detection device, which can automatically display detailed fault, alarm, configure 485 communication interface and operation software.

Control resolution

Temperature: 0.1℃

Time: 1s

Setting accuracy

30×100 stage

User program capacity

Program operation, constant operation

Operation mode

Installed

Independent over temperature protection instrument

Installed

Device working time accumulation timer

French original imported "Taikang" hermetic high efficiency hermetic compressor

compressor

DuPont uses zero ozone coefficient green refrigerant

cryogen

Air cooled condenser (customized)

condenser

Fin type automatic load capacity adjustment (automatic switching of dehumidification and cooling)

evaporator

Refrigeration system with capillary volume control

Expansion system

Changheng heros copper on-off valve

Solenoid valve

Danfoss screw, Denmark

Oil separator

DuPont grade a refrigeration oil

Refrigeration oil

In order to ensure the cooling rate and the minimum temperature of the test chamber, a set of 2×6HP imported IFC French Taikang totally enclosed compressor composed of two-way cascade water-cooling refrigeration system is used in the test chamber. The cascade refrigeration system consists of a high-temperature refrigeration cycle and a low-temperature refrigeration cycle. Its connecting container is the evaporation condenser, which plays the role of energy transfer. The heat energy in the studio is transferred out through the two-stage refrigeration system to achieve the purpose of cooling. The design of refrigeration system applies energy regulation technology, an effective treatment method can not only ensure the normal operation of the refrigeration unit, but also effectively regulate the energy consumption and cooling capacity of the refrigeration system, so that the operation cost and failure rate of the refrigeration system can be reduced to a more economic state.
