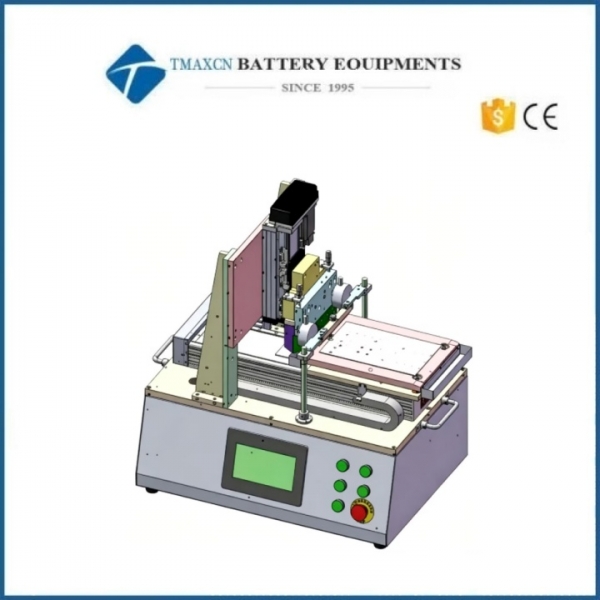

High Precision Automatic Slot Die Coater for Perovskite Solar Cell Fabrication
The SD150 slit coating machine is a high-precision coating equipment. It features automatic liquid supply, automatic alignment, automatic cleaning, and the coating speed can be controlled in segments. The control accuracy is high. It also has the functions of heating and air knife-assisted in-situ film formation, enabling the production of precise and uniform films. It is mainly applied in the advanced manufacturing and research fields of industries such as perovskite solar cell film preparation, OLED/QLED, and fuel cells.
Product images (refer to actual product for accuracy)
Coating Advantages
1. Capable of forming a continuous and uniform film over a large area;
2. Automatic liquid supply and automatic cleaning;
3. Wind knife / heating platform, in-situ film formation;
4. Saves solution, saving over 90% compared to spin coating;
5. Product yield rate reaches over 95%;
6. Wide application range, including perovskite batteries, OLED, fuel cells and other fields.
Main technical parameters
1.Basic parameters of the substrate |
|
Type |
Flexible conductive PET/PEN, conductive FTO/ITO, etc. |
Thickness |
1–5 mm |
Coating Size |
150mm × 150mm; coating width compatible from 50–150mm (determined by gasket) |
2. Coating Film Parameters |
|
Coating Viscosity |
<1–100 cps |
Wet Film Thickness |
1–100 μm |
Dry Film Thickness |
50–1000 nm |
3. Equipment Basic Parameters |
|
Item |
Specification |
Worktable |
Heated table / Marble table / Aluminum alloy platform |
Liquid Supply |
High-precision supply pump (0.1–2000 μl/s) |
Coating Speed |
0–100 mm/s, freely selectable, programmable segment speeds |
Control System |
Siemens PLC control system |
Repeatability Accuracy |
±0.01 mm |
Power Supply |
220V, 2.5 kW |
4. Die Head Parameters |
|
Machining Precision |
Die flatness/straightness ≤ 1.5 μm |
Effective Die Width |
150 mm |
Die Cavity Volume |
Approx. 4 mL |
Die Material |
German imported stainless steel 17-4, offering excellent corrosion resistance and stability; machined on Japanese high-precision CNC machines in a temperature-controlled workshop. |
5. Equipment Operating Environment |
|
Ambient Temperature |
25℃ ± 2℃ |
Relative Humidity |
< 70%, no condensation |
Pollution Degree |
Class 2; shall not be installed in dusty areas or places with corrosive gases |
6. Equipment Configuration |
|
Air Knife |
Adjustable height and angle; three-side air intake with high air distribution uniformity |
Control |
Servo motor |
Gaskets |
Several gaskets of different thicknesses and widths |
Dimensions |
650×450×730 mm (reference) |
Weight |
Approx. 80 kg |
