High-precision Ultraviolet Laser Marking Machine for Perovskite Batteries

Product Name: Visual Positioning Laser Marking Machine

Model: KT-PZ Series

Features: Fast etching speed, high precision, equipped with high-precision CCD for Mark capture positioning, reducing human error and time in alignment, improving accuracy and saving processing time, no consumables, low energy consumption, wide applicability, stable beam quality.

Applications: Laser etching and marking processing for materials such as perovskite batteries and germanium gallium arsenide, capable of completing the P1 to P4 operations (gold, silver, ITO, FTO electrodes) of perovskite batteries.

Visual positioning scheme description:

1. Glass size: Max 150*150mm, position accuracy tolerance ±0.05mm

3. Positioning and grasping method: Using the servo module to move the Mark position to the field of view of the CCD camera, position and grasp the Mark, then through software algorithms, correct the positioning and depict the corresponding graphic.

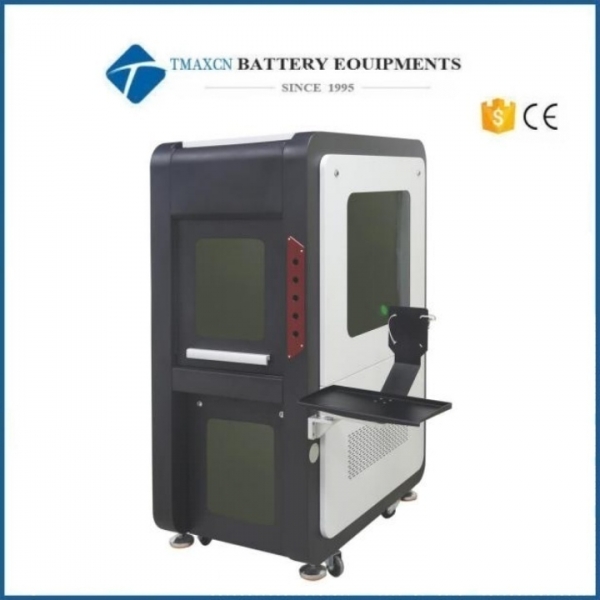

Equipment appearance (subject to actual product)

Technical Specifications:

1) Laser power: 5W @ 30KHz

2) Wavelength: 355nm (ns)

3) Lifespan: 20,000 hours

4) Frequency range: 10 - 100kHz, pulse width < 15ns @ 30KHz

5) Etching size range: ≤ 150mm

6) Minimum line width: ≤ 0.03mm

7) Laser repetition accuracy: ±0.01mm

8) CCD positioning accuracy ±5μm.

9) Module positioning accuracy: ±10μm

10) Maximum speed: 10,000mm/s

11) Equipment size: Length * Width * Height = 1100mm * 790mm * 1730mm

Equipment configuration:

1) Fully enclosed cabinet 1 set

2) Ultraviolet laser 1 set

3) German SCANLAB mirror 1 set

4) XY-axis moving module 1 set

5) High-precision industrial camera 1 set

6) Water cooling machine 1 unit

7) Dust removal device 1 set

8) Industrial control computer 1 unit
