Laboratory Small-scale Perovskite Laser Line Marking Machine

Product Name: Miniature Perovskite Laser Line Marking Machine

Model: KT-PT100

Features: Fast etching speed, high precision, compact design, can be used in glove boxes, no consumables, low energy consumption, wide applicability, stable beam quality, capable of completing all processes of P1-P4 for perovskite battery modules.

Applications: Laser etching and marking processing of perovskite batteries, germanium gallium arsenide and other materials, as well as metals, non-metals, metal oxides, plastic product peeling and marking.

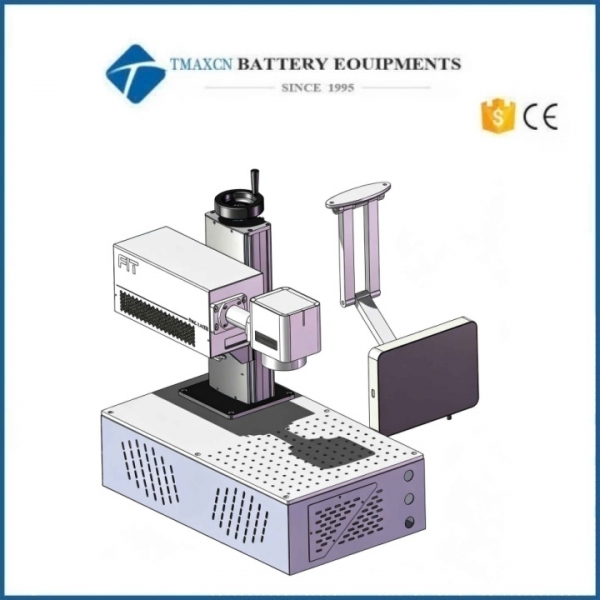

Design drawing (refer to the actual object)

Technical parameters:

1) Laser power: 5W @ 30KHz

2) Wavelength: 355nm (nanoseconds)

3) Lifespan: 20,000 hours

4) Frequency range: 10 - 300kHz, pulse width < 15ns

5) Etching size range: ≤ 110mm

6) Minimum line width: ≤ 0.03mm

7) Laser repetition accuracy: ±0.01mm

10) Processing speed: 1 - 12,000mm/s

11) Equipment size: Length * Width * Height = 650mm * 350mm * 630mm

Equipment configuration:

9) Ultraviolet laser 1 set

10) High-precision galvanometer 1 set

11) Industrial control computer 1 unit
