Planetary Ball Mill

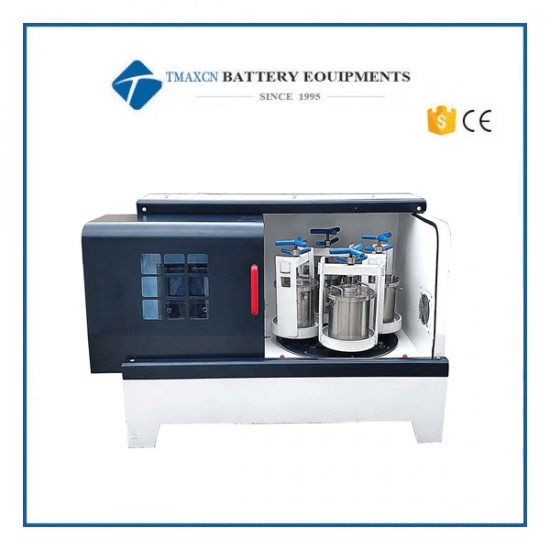

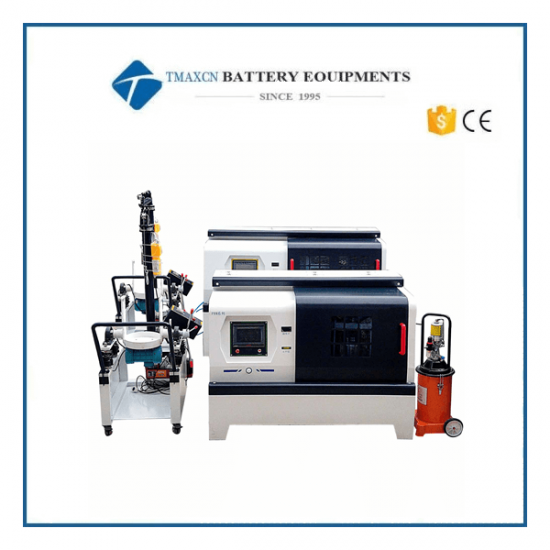

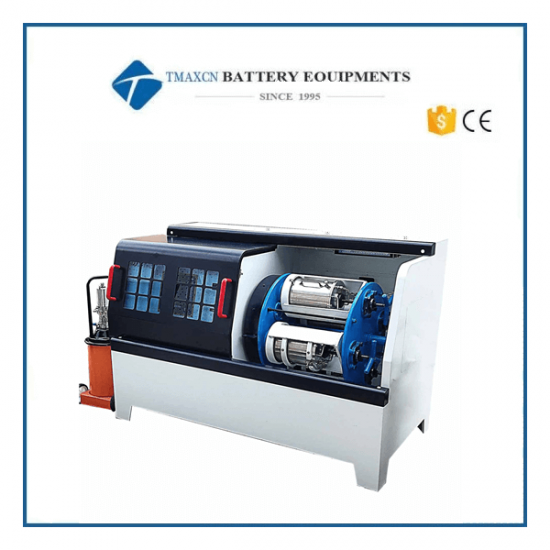

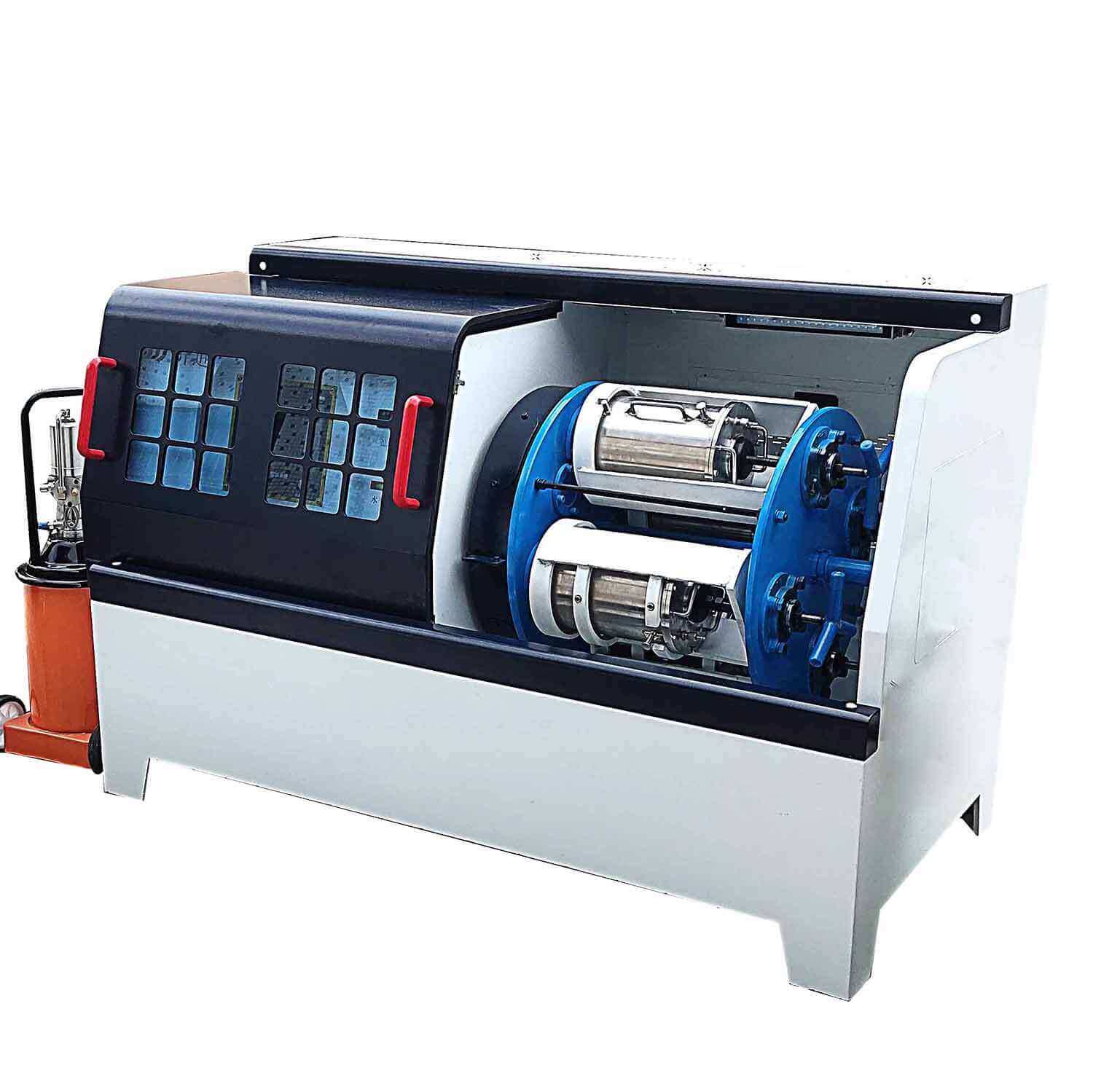

High Productivity Horizontal Planetary Ball mill

  • Model Number:

    TMAX-HPBM-6

  • Input Power:

    1.1KW

  • Dimension(L*W*H):

    1120×600x710

  • Net Weight:

    90KG

  • Compliance:

    CE Certified

  • Warranty:

    One years limited warranty with lifetime technical

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

High Productivity Horizontal Planetary Ball mill



Introduction:

The heavy horizontal planetary ball mill is mainly customized for the large proportion of materials and easy to sink and agglomerate. The support bracket structure at both ends of the double row star disk is adopted to ensure the concentric operation of the main disc shaft, improve the stability of the equipment, solve the problems of partial sinking of materials, caking and plate formation, and solve the limitation of mass grinding production of light horizontal planetary ball mill, It is mainly suitable for large and medium scale grinding production.



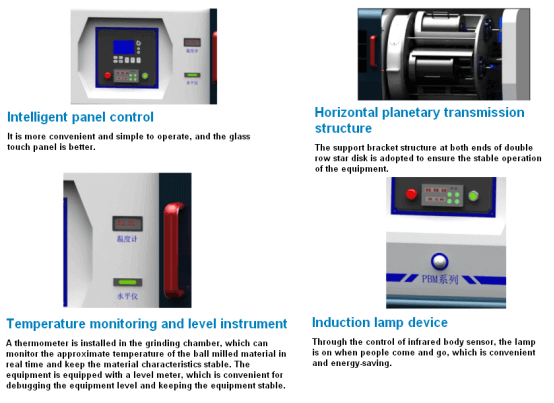

Features

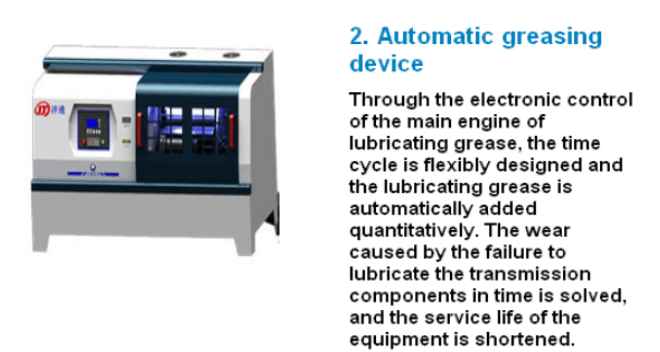

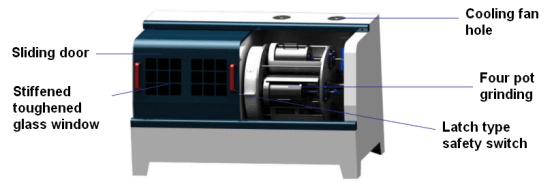

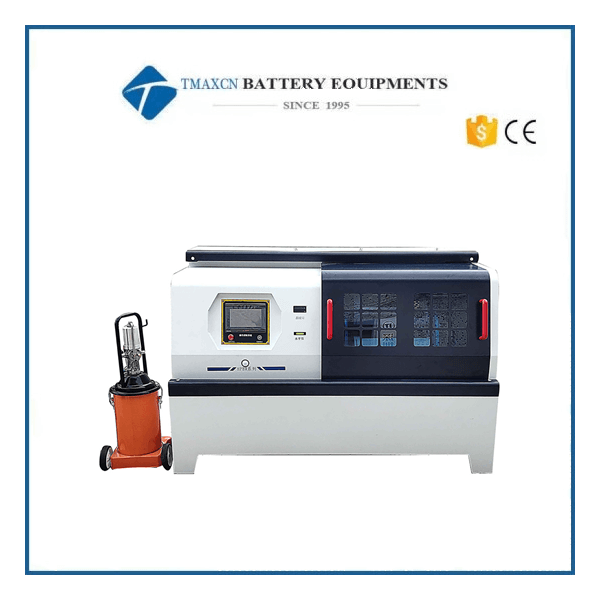

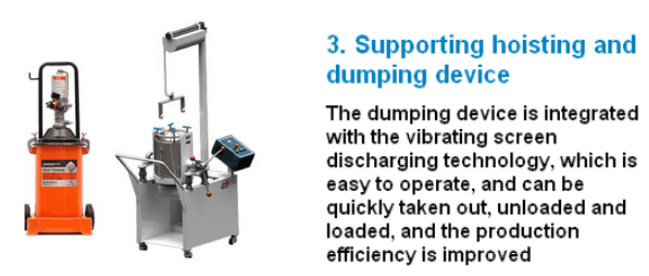

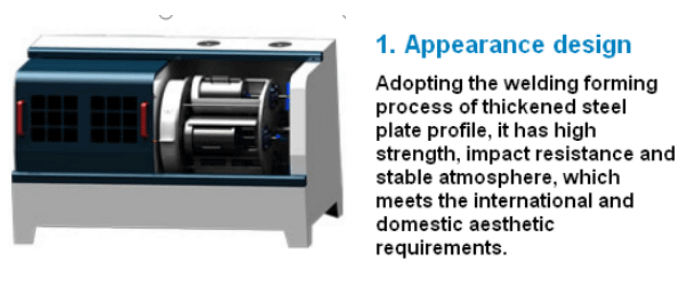

Through professional appearance design, the shell adopts high-precision laser cutting, numerical control bending forming, elegant and exquisite, high-end and stable. Planetary disc and structural components are processed by numerical control processing technology. Nitriding metal heat treatment process ensures wear resistance of rotating shaft and parts and prevents shaft breakage. Transmission gear adopts high-temperature wear-resistant non-metal and metal combined precision gear, It adopts grease lubrication, and can be equipped with our company's automatic grease adding device. The positioning of ball mill pot taking and discharging can be separated and automatic on the equipment, which can position the corresponding positions of taking and discharging cans, and improve the production efficiency.


Specifications:

Transmission mode

gear drive

operation mode

Two or four ball mills work at the same time

Maximum sample size

Two thirds of the volume of ball mill pot

Volume of ball mill pot

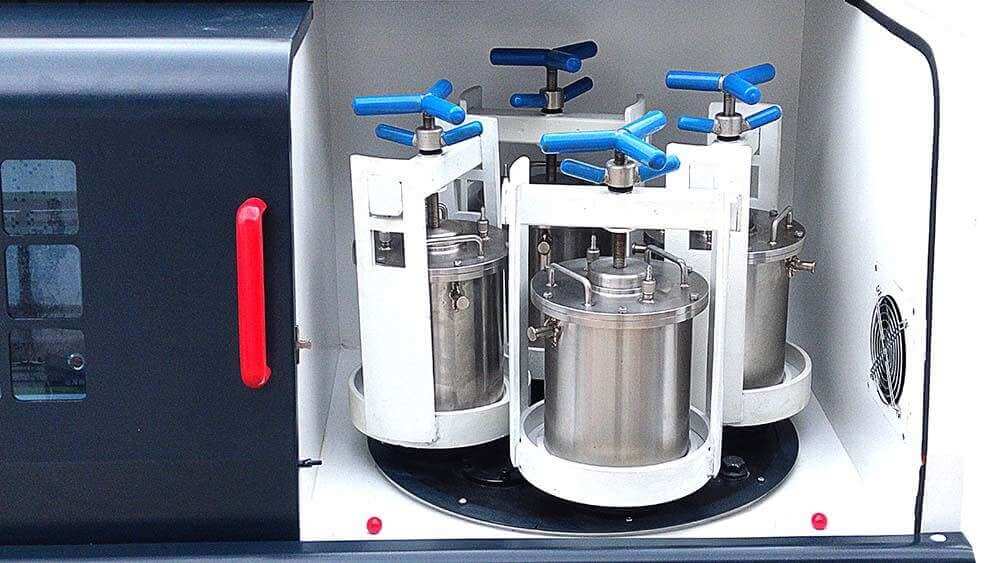

Each tank is 1.5l-25l, and the total volume is 0.2l-100l

Feed size

Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge particle size

The minimum is 0.1 um

Speed ratio (Revolution: rotation)

See the main parameters of planetary mill for details

Speed (rotation)

See the main parameters of planetary mill for details

Speed control mode

Frequency converter brand


Technical parameters of heavy horizontal planetary mill (1)

Model

Specifications

(L)

Specification of ball mill can be matched

Number

Matching ball mill pot

Standard ball mill tank locking device

Standard manual positioning tank taking and discharging (automatic positioning device can be selected)

HPBM-6

6

1-1.5L

4

It can be equipped with 50-1000m vacuum ball milling tank

Manual

Manual

HPBM-8

8

1-2L

4

It can be equipped with 50-1500m empty ball mill pot

Manual

Manual

HPBM-10

10

1-2.5L

4

It can be equipped with 1-2l vacuum ball mill

Manual

Manual

HPBM-12

12

1-3L

4

It can be equipped with 1-2l vacuum ball mill

Manual

Manual

HPBM-16

16

2-4L

4

It can be equipped with 1-3l vacuum ball mill

Manual

Manual

HPBM-20

20

2-5L

4

It can be equipped with 2-4l vacuum ball mill

Manual

Manual

HPBM-40

40

5-10L

4

It can be equipped with 5-10l vacuum ball mill

Manual

Manual

HPBM-60

60

10-15L

4

It can be equipped with 10-15l vacuum ball mill

Manual

Manual

HPBM-80

80

15-20L

4

It can be equipped with 15-20L vacuum ball mill

Manual

Manual

HPBM-100

100

20-25L

4

It can be equipped with 15-20L vacuum ball mill

Manual

Manual


Technical parameters of heavy horizontal planetary mill (2)

Model

Equipment power supply

Motor power kw

Total operation setting time (min)

Alternate operation time (min)

Adjustable speed revolution (RPM)  self rotation (RPM)

HPBM-6

Single phase 220 V-50 Hz

1.1

1-9999

1-999

35-370

70-740

HPBM-8

Three phase 380V-50Hz

1.5

1-9999

1-999

35-320

70-640

HPBM-10

Three phase 380V-50Hz

1.5

1-9999

1-999

35-320

70-640

HPBM-12

Three phase 380-50 Hz

1.5

1-9999

1-999

35-320

70-640

HPBM-16

Three phase 380V-50Hz

3

1-9999

1-999

30-240

60-480

HPBM-20

Three phase 380V-50Hz

4

1-9999

1-999

25-215

50-430

HPBM-40

Three phase 380V-50Hz

5.5

1-9999

1-999

25-215

50-430

HPBM-60

Three phase 380-50 Hz

7.5

1-9999

1-999

25-170

50-340

HPBM-80

Three phase 380V-50Hz

11

1-9999

1-999

25-155

50-310

HPBM-100

Three phase 380V-50Hz

11

1-9999

1-999

25-155

50-310


Technical parameters of heavy horizontal planetary mill (3)

Model

Standard panel with optional touch screen

Lubrication mode (optional automatic greasing device)

Speed control mode

Equipment reference weight (kg)

Equipment reference dimension length x number height (mm)

Noise dB

HPBM-6

intelligence

grease

frequency control

90

1120×600x710

60±5

HPBM-8

intelligence

grease

frequency control

375

1300×620x870

60±5

HPBM-10

intelligence

grease

frequency control

375

1300x620x870

60±5

HPBM-12

intelligence

grease

frequency control

375

1300x620x870

60±5

HPBM-16

intelligence

grease

frequency control

450

1480x700x900

60±5

HPBM-20

intelligence

grease

frequency control

710

1600x820x1000

65±5

HPBM-40

intelligence

grease

frequency control

770

1700×810x1000

65±5

HPBM-60

intelligence

grease

frequency control

1040

1800x1050×1180

65±5

HPBM-80

intelligence

grease

frequency control

1180

1995×1110×1260

68±5

HPBM-100

intelligence

grease

frequency control

1180

1995×1110×1260

68±5
