HighTemperature  Microwave Bell Type Furnace

Lab 1600C Operating HighTemperature Microwave Bell Type Furnace under Vacuum and Puirty Atmosphere

  • Model Number:

    TMAX-HAMiLab-VS4500
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

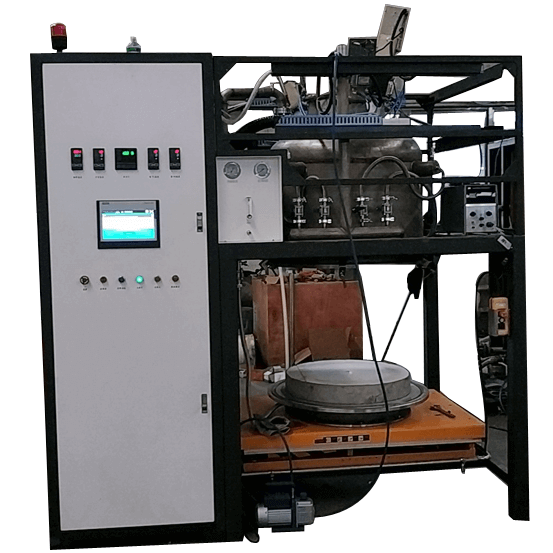

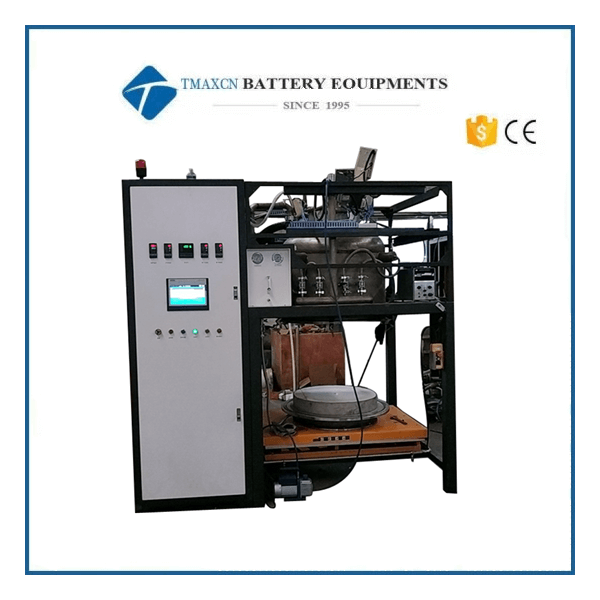

Lab 1600C Operating HighTemperature  Microwave Bell Type Furnace under Vacuum and Puirty Atmosphere


Specifiacations

1. Microwave rated power 0.25~3.96KW Continuous stepless adjustable 380/50Hz

2. Distribution power 5KW

3. Loading space 100×100×50mm

4. Operating temperature ≤1600°C

5. Moff material 304 stainless steel

6. Temperature measurement method Infrared temperature measurement 300°C~1850°C

7. Temperature control mode Touch screen, set curve, automatic control

8. Atmosphere control Nitrogen protection

9. Microwave leakage strength <1mW/cm2

10. Magnetron cooling method

11. Magnetron function Operation indication, over temperature alarm, etc.

12. Normal average life of magnetron ≥5000h

13. Equipment size 1 × 1 × 2.5m (length × width × height)

14. Special switching power supply, with strong air cooling, stable performance, ensuring continuous and stable use for a long time, long service life.

15. The control system is PLC system + touch screen, providing manual and automatic constant temperature control mode, real-time display of curves, and self-contained air-conditioning atmosphere system.


Microwave Sintering Furnace
