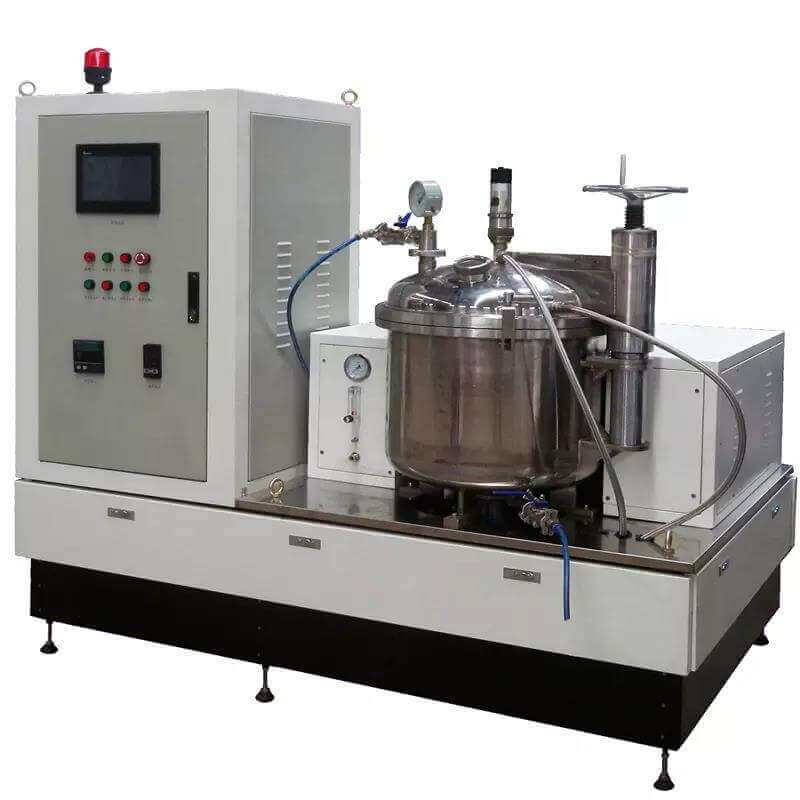

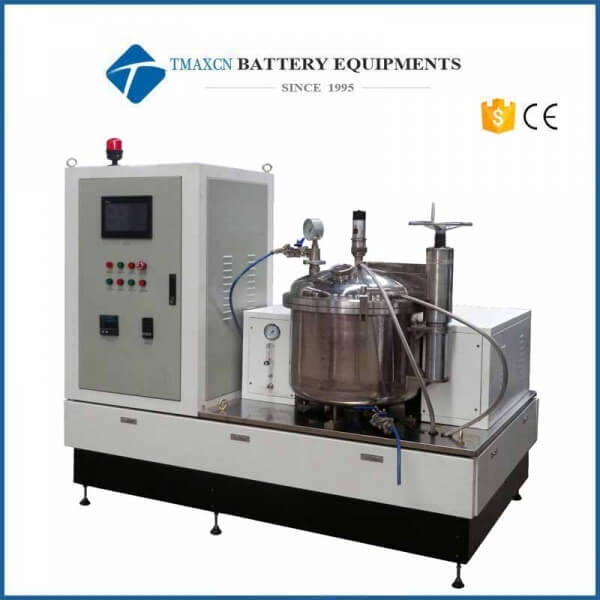

TMAX-HAMiLab-V4500 microwave high temperature atmosphere experimental furnace is used for high temperature synthesis, calcination, sintering, melting and heat treatment of various solid materials under protective or weak reducing atmosphere conditions.

Technical Parameters

1. Power supply: 380±10V/50Hz;

2. Rated power: 8 KW;

3. Microwave output power: 0.25~3.96KW continuously adjustable;

4. Microwave frequency: 2.45GHz ± 25MHz

5. Maximum use temperature: 1600 ° C;

6. Temperature measurement method: infrared thermometer;

7. Temperature measurement range: 300 ° C ~ 1800 ° C;

8. System accuracy: ± (0.1% +1 °C of measurement reading);

9. Static ultimate vacuum: 50Pa;

10. Temperature field space: φ110×110 mm;

11. Circulating cooling water flow rate: ≥1.5m3/h;

12. Circulating cooling water pressure: ≥ 0.15MPa;

13. Circulating cooling water inlet water temperature: 5~30 °C;

14. The total hardness of circulating cooling water: <60mg / L (can be replaced by daily tap water);

15. Control system: embedded system control mode, can be connected to PC, can realize data storage and printing function; can set multiple process curves, each curve can set 40 process parameters; with automatic / manual operation dual function ;

16. Bring your own atmosphere system;

17. Microwave leakage: <1Mw/cm2;

18. Equipment dimensions: 2200 × 800 × 1800 mm (length × width × height)

19. Sample stage: φ340mm

20. Cavity: φ500×560mm

21. Furnace frame (width × height × depth): 1250 × 900 × 780
