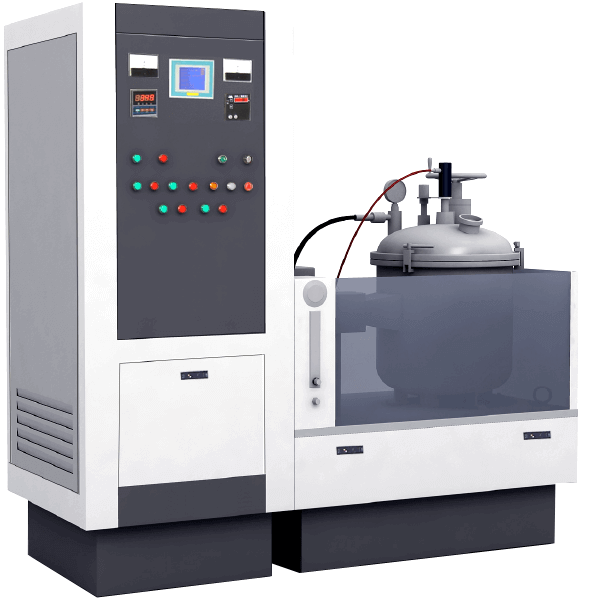

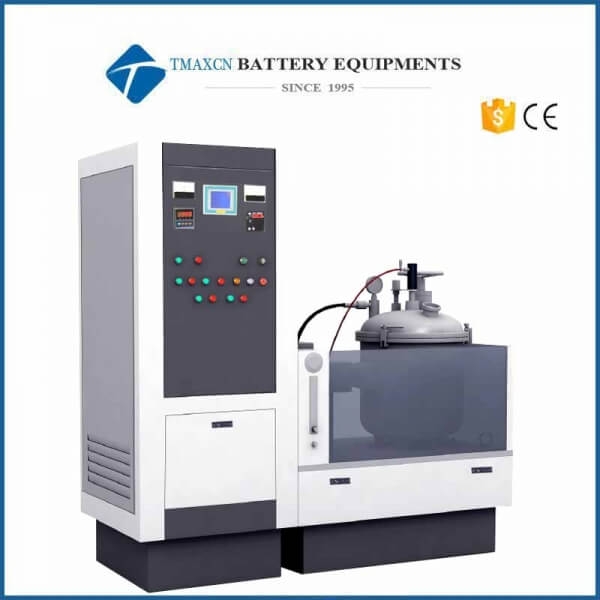

State-of-the-art High Temperature & Low Vacuum Microwave Sintering Furnace

State-of-the-art High Temperature & Low Vacuum Microwave Sintering Furnace Laboratory System

  • Model Number:

    TMAX-HAMiLab-V
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    30 day
  • contact now
Product Details


State-of-the-art High Temperature & Low Vacuum Microwave Sintering Furnace Laboratory System




Brief Introduction:


HAMiLab-V is the 3rd generation of SYNOTHERM high temperature microwave laboratory system. It's eloquent and sophisticated design accents this system's advanced state-of-the-art technology. It is composed of 4 sub-systems that are integrated to create a truly hands-off experience of processing materials and metals, chemical and biological samples. The only standard in manufactured high-temperature, high-power research furnaces, HAMiLab-V is composed of a double-layer, water-cooled, vacuum sealed, stainless steel heating chamber that is attached to vacuum and gas-infiltration systems that provides a highly controlled environment for processing samples. Energy is delivered to the sample loads by direct energy transfer from a high precision micro head, capable of delivering up to 6 kW of microwave power to heat samples to temperatures only limited by the state-of-the-art in insulation materials. This amount of energy delivered at the high efficiency inherent in microwave processing easily heats samples to temperatures above 1600oC in minutes, not hours. And our energy delivery systems are made, assembled and individually tested with care, and have unrivalled durability. They are rated for 5,000 hours of operation. HAMiLab's control system is equally as sophisticated, giving users complete control over all operational parameters. Samples are heated and cooled on a precise heating schedule that is programmed and stored into the system with a touch of button on the liquid crystal touch display. Each system comes standard with a high-precision optical pyrometer for accurate temperature measurement over a broad range of temperatures up to 2250oC. Metals, technical ceramics, glasses, PM parts, virtually any system that is studied in a laboratory can be processed in the HAMiLab-V to yield end-products of the finest quality.



Specification:

Model

HAMiLab-V3000

HAMiLab-V6000

Output Power

0.5 – 2.85kW variable

0.6 - 6.0kW variable

Microwave Frequency

2450 ± 25MHz

Overall Dimensions (mm)

800 × 2200 × 1800 (W×L×H)

Cavity Dimensions (mm)

Φ500 × 560 (Dia. × H)

Effective Heating Zone (mm)

Φ150 × 160 (Dia. × H)

Maximum Temperature

1600oC

Temperature Measurement

Raytek IR pyrometer, 450 - 2250oC

Control System







PLC (18 sections of temperature control),

embedded system connected to laptop via USB,

with data storage and printing functions.

Control Panel Display

8” touch-pad LCD or laptop

Temperature Control Precision

0.3% ± 1oC

Power Control Precision

< ± 2%

Vacuum Limit

< 100 Pa

Atmosphere Control

2 channels (optional)

Process Atmosphere



Air, oxygen, nitrogen, argon and weak

reductive atmosphere, etc.

Protection and Safety





Anode over voltage, anode over current,

anode power surpass, electromagnet watchdog,

magnetron temperature, external interlock.

Microwave Leakage

< 1mW/cm2 (Safety standard < 5mW/cm2)

Cooling

Water, 0.8 - 2m3/h at pressure > 0.15MPa


Microwave Sintering Furnace






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
