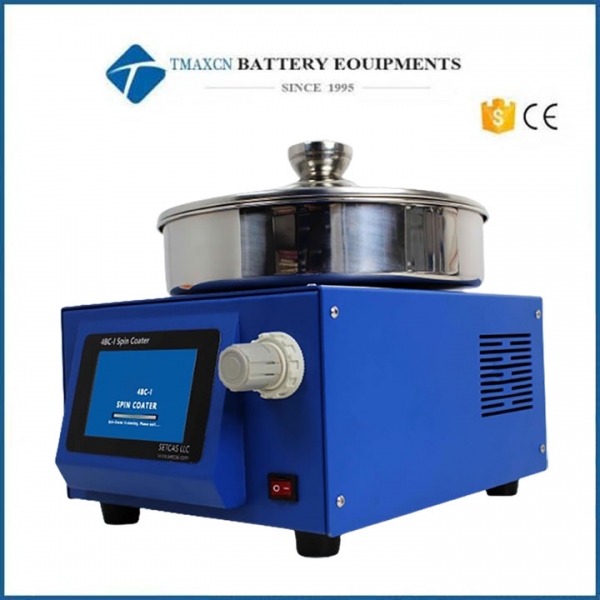

Lab High-speed Spin Coater Equipped with Anti-glue Intrusion Module
Model Number:
TMAX-4BC-IDimension(L*W*H):
1000mm(W)X1000mm(D)X1650mm(H)Net Weight:
200KGCompliance:
CE CertifiedWarranty:
Two Years limited warranty with lifetime supportShipping Port:
XiamenPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab Manual Spin Coater Equipped with Countdown Display FunctionNext:
Programmable Control Spin Coater with Optional Disposable Pot Lining

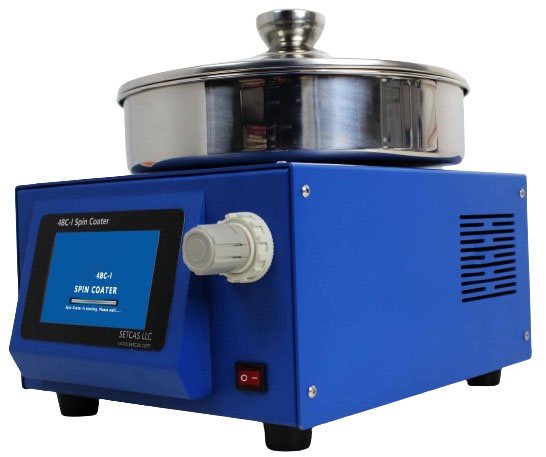

Lab High-speed Spin Coater Equipped with Anti-glue Intrusion Module
Key Features：
1. Adjustable acceleration, adjustable adsorption, real-time display (acceleration range: 10- 10000RPM/S, speed: 50- 10000RPM with anti-fly protection and alarm.)
2. Equipped with an anti-glue intrusion module to effectively solve the problem of glue intrusion during spin coating and extend the service life of the motor with an automatic film removal prompt function.
3. Optional two-way automatic glue coating and development modules are available to facilitate glue dispensing and development.
4. Optional disposable pot lining: convenient for cleaning up waste liquid after spin coating.
Spin Coater Specifications
Vacuum adsorption force |
Adjustable, real-time display |
Substrate size |
5mm to 120mm（ 5 inches） |
Speed range |
50- 10000RPM |
Acceleration range |
10- 10000RPM/S, adjustable |
Human machine interface |
4.3 inch touch screen |
Motor speed stability |
±1RPM |
Spin coating uniformity |
±1% |
Stylus |
Stylus BAMBOO resistance pen (standard) |
Set data |
Unlimited group data, each group of 10 speeds (standard) |
Seconds per period |
0- 10000s |
Storage data |
Unlimited data |
Data protection |
With power-down protection function by default |
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
Pumping speed |
≥60L/MIN |
Max vacuum |
-85KPA |
Sound Level |
≤55db |
Spin coater power |
200W |
Pump power |
350W |
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
Weight(Spin Coater) |
10KG |
Weight(Pump) |
9KG |
Relative humidity |
< 85% |
Ambient temperature |
0-40℃ |
Warranty |
1 year |
