Rotary Tube Furnace

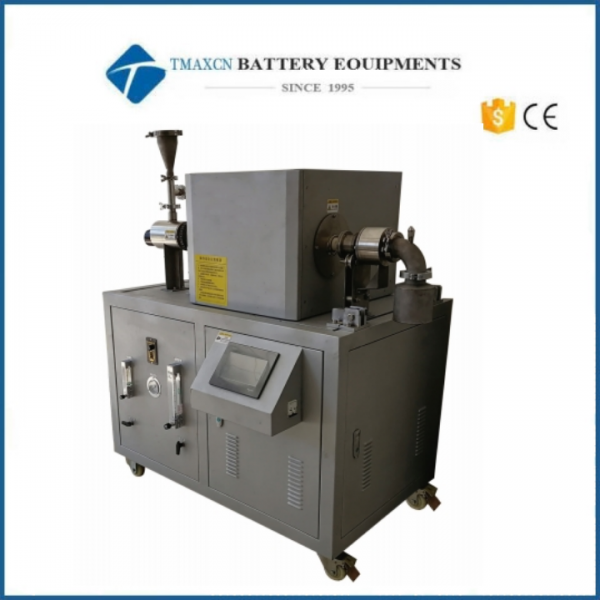

Lab Hybrid Heating Mode Double Heat Source Rotary Tube Furnace

  • Model Number:

    TMAX-HY-XZ-E

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited warranty with lifetime technical support

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

Lab Hybrid Heating Mode Double Heat Source Rotary Tube Furnace


Summarize

The double heat source rotary tube furnace is a standard multi-heat source rotary tube furnace. Resistive, microwave, or hybrid heating modes can be set. It is suitable for the preparation of new materials and the synthesis, burning and reduction of other particles and powders.



Main feature

1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;

2) The material is dynamically turned in the furnace, and the heat is uniform, and the reaction is fast and sufficient;

3) Adopt a variety of heating methods, suitable for a wider range of materials;

4) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved



Technical parameter

       Model

Parameter

HY-XZ1510E

HY-XZ3010E

Voltage

220±10V，50Hz

380±10V，50Hz

Microwave output power

0.01~1.40kW, continuously adjustable (Panasonic)

0.01~2.80kW, continuously adjustable (Panasonic)

Electric power

3kw

4kw

Heating space (diameter x length)

φ40x130mm

Φ80x250mm

Microwave frequency

2.45GHz

Tilt Angle

-5~+35°

Rotational speed

5~30 RPM

Operating temperature

≤1100℃

Temperature measurement method

Thermocouple/infrared

Static limit vacuum

≤100Pa

Atmosphere system

Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc

Control mode

Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)

Control program

Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven

Anti-microwave leakage

Microwave leakage level <1mW/cm2

Safety protection

Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm

Main body (L x W x H)

About 650x700x1200mm

About 850x850x1300mm



Consumables and optional accessories
