Microwave Tube Furnace

Microwave Tube Type Pyrolysis Furnace with Ф40×130mm Heating space

  • Model Number:

    TMAX-HY-RZG1510

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited warranty with lifetime technical support

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details


Microwave Tube Type Pyrolysis Furnace with Ф40×130mm Heating space

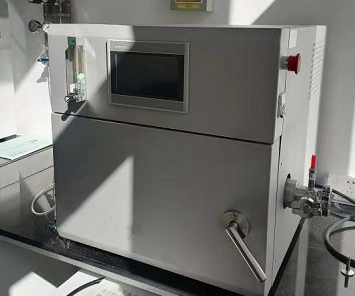

(The following pictures are for reference only)



I. Overview:

The HY-RZG type bench-top microwave tube type pyrolysis furnace is a new generation of microwave rapid pyrolysis/cracking experimental platform, suitable for microwave pyrolysis experiments on materials such as plastics, organic waste salts, waste activated carbon, biomass, coal quality and garbage.

Main features:

Ø Industrial-grade brand microwave source, with adjustable microwave output power to ensure continuous and stable operation of the equipment for a long time;

Ø Compact structure, overall design, safe and reliable;

Ø Various unique crucibles and insulation structures are available for selection, without causing pollution to the materials;

Ø Fast pyrolysis speed, mild reaction.

II. Main Technical Parameters:



HY-RZG1510

Voltage

220±10V   50Hz

Rated power

3kW

Microwave output power

0.01 to 1.40 kW, adjustable continuously

Microwave frequency

2.45GHz

Working temperature

≤1100℃

Heating rate

≤100℃/min

Heating space

Ф40×130mm (Diameter × Length)

Temperature measurement method

Thermocouple

Temperature measurement range and accuracy

0 - 1300℃; Reading ±0.1%

Control method

PLC + Touch Screen

Control program

40 configurable process parameters, with data storage, export of experimental data; manual, automatic, and constant temperature control modes, real-time display of curves; dynamic data screen saver

Atmosphere requirements

Protective atmosphere, controllable flow rate

Anti-microwave leakage protection

Microwave leakage level < 0.5 mW/cm2

Magnetron alarm

Over-temperature alarm

Furnace door protection alarm

Lid closure switch




III. Product Configuration Table:

NO.

Name

Specification or Component Part

Quantity

Quantity

1

Power cord



1 set

16A/3 Socket plug, 3-meter power cord

2

Microwave source

Industrial-grade 1.5KW microwave system 1 set (including air-cooled magnetron and switching power supply)

1 set

1X1.5KW installed in the furnace body

3

Tube-type insulation system



1 set

1400℃ tube-type insulation structure

4

Quartz tube

Outer diameter: Φ40mm

2 pieces



5

Quartz boat



4 sets



6

Special heating material for microwave



1 set

With atmosphere protection, it can withstand temperatures up to 1800℃.

7

Thermocouple

RT-1300℃

1 pieces



8

Clamp connector

Φ40mm

1 set



9

PLC



1unit



10

Touchscreen

7 inches

1 set



11

Contactor



1 set



12

Circuit breaker



1 set



13

Relay



1 set



14

Switching power supply



1 set



15

Heater body

304 SS

1 set

Carbon steel powder-coated outer cover

16

Furnace door

304 SS

1 set

High-precision flange door, carbon steel powder-coated cover

17

Microwave shield



1 set



18

Handheld microwave leak detector



1 unit



19

Other accessories



1 set

Including heat-resistant gloves and material hooks
