Lab Multi-Sample Spin Coater Machine With 3 Vacuum Chucks for 4 Inch Max

Model Number:
TMAX-KJ4V
Dimension(L*W*H):
1000mm(W)X1000mm(D)X1650mm(H)
Net Weight:
200KG
Compliance:
CE Certified
Warranty:
Two Years limited warranty with lifetime support
Shipping Port:
Xiamen
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 18659217588
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

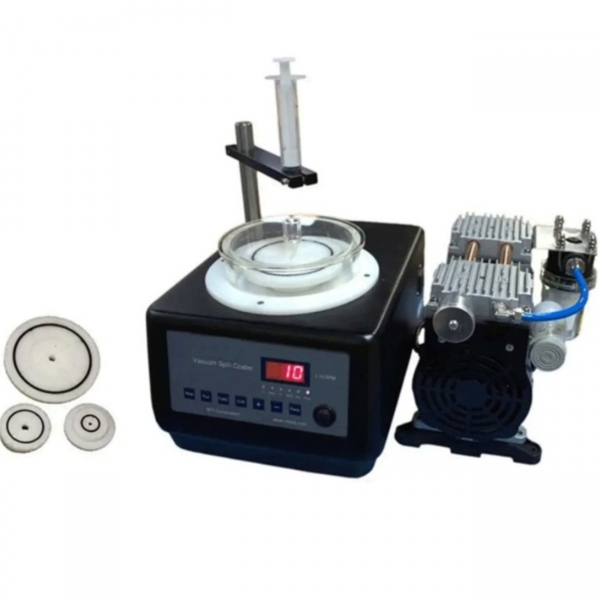

Lab Multi-Sample Spin Coater Machine With 3 Vacuum Chucks for 4 Inch Max

1. Core Structure

Parameter	Description
Housing	Aluminum cast casing for rotational stability
Liquid Disk	Corrosion-resistant design compatible with most chemical solutions
Included Accessories	1x in-line filter (prevents backflow) + 1x oil-free vacuum pump

2. Chamber & Vacuum Chucks

Parameter	Description
Chamber Diameter	145 mm
Chuck Options	3x PP anti-corrosive chucks with O-rings (1", 2", 4")
Irregular Substrates	Includes 6"×24" adhesive tape for non-flat samples
Mini Substrates	Mini suction cups for <1" wafers or 5×5mm/10×10mm samples

3. Spin Parameters

Parameter	Description
Control Panel	Digital interface with 2-segment programmable control
Speed Range	500–8,000 RPM
Time Range	1–60 seconds

4. Liquid Dispensing System

Configuration

Description

Standard

20 mL syringe with adjustable height/angle holder

Optional

- Precision electronic pipette (20–200 μL)

- Heatable syringe (prevents solution solidification)

5. Power & Dimensions

Parameter	Description
Input Power	110VAC or 220VAC selectable (10A fuse)
Motor	24V DC, 150W max output
Dimensions	330×254×216 mm (L×W×H)
Net Weight	15 kg

6. Compliance & Warranty

Parameter	Description
Certifications	CE certified
Warranty	1-year limited warranty with lifetime support

7. Optional Upgrades

· Plasma Cleaner: Improves film adhesion

· Vacuum Flash Assembly (VASP): Supports 5 mTorr vacuum environment

8. Shipping Information

Parameter	Description
Packaging Dimensions	1016×711×610 mm (L×W×H)
Gross Weight	46 kg

9. Key Features

· Anti-corrosion: PP chucks + aluminum housing for chemical resistance

· Versatility: Adhesive tape/suction cups support irregular/mini substrates

· Research-grade: Optional VASP and heatable syringe for advanced applications
