Lab Vacuum Centrifugal Stirring Mixer for Mixing And Defoaming High Viscosity Glues

Lab Vacuum Centrifugal Stirring Mixer for Mixing And Defoaming High Viscosity Glues

Summarize

Technical specification

The working principle of the equipment is introduced

Non-contact mixing working principle diagram

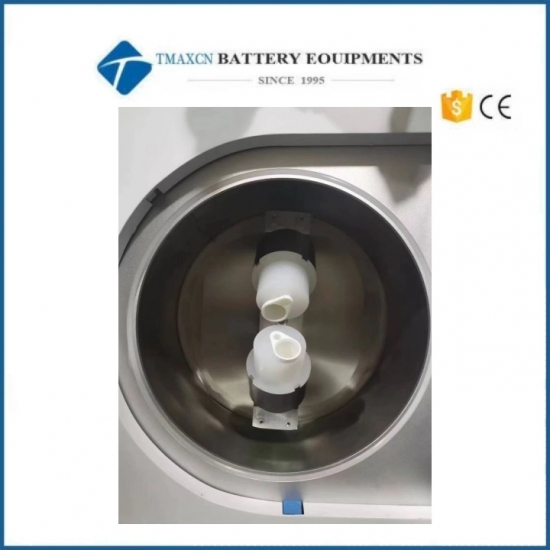

The outer ring arrow is the direction of the equipment revolution, the material cup is placed in the cup holder at a 45 degree Angle, the small ring arrow is the direction of the material cup rotation, by the centrifugal gravity generated by two different sizes and directions of the same high-speed rotation to mix the slurry in the cup.

Our method of mixing: no mixing rod, mixing different materials is only to change the container. Easy to clean, just clean the container. Some customers directly use disposable containers, we provide customers with disposable cup fixtures within the scope of size tolerance.

The characteristics of stirring defoaming machine are introduced

a. Spindle: The use of Swiss S136 mirror die steel, after multiple heat treatment, the overall hardness of HRC62 degrees. Shaft whole grinding, full runout not more than 1 wire. After mirror grinding, the sealing surface achieves the surface roughness of 0.02um mirror effect, the friction coefficient is very low, the wear of the sealing ring is very small, and the high sealing performance of ultra-long life is achieved. This is one of the magic weapons that many of our customers maintain negative pressure above -98Kpa after several years of use.

b. Sealing ring: The use of Germany Bayer company ultra-wear-resistant sealing ring, wear resistance can reach 40M/S line speed, our equipment at 2000 RPM line speed of 4M/S. The pressure can withstand 20KG/c㎡. This is the second magic weapon for many of our customers to maintain negative pressure above -98Kpa after several years of use.

c. Vacuum pump: German technology Small Diamon vacuum pump, equipped with forced lubrication oil pump, sufficient lubrication, reliable performance, low noise, with our company's unique 4-stage filtration, to meet the requirements of the purification room.

d. Gear: Adopts the helical bevel gear type structure of the car, stable operation, low noise, long life.

e. Swivel arm: The use of integral swivel arm, all imported from the United States of aviation magnesium aluminum 7075 integral processing, to ensure the accuracy and later stability of the product, the center error is not more than ±0.02. High interchangeability, the same type of machine arm into arbitrary interchangeability, easy maintenance.

f. Vacuum stirring defoam machine: high vacuum, long life (on time oil change maintenance and maintenance of the machine 10 years vacuum degree will not be less than 3%, the vacuum degree is maintained below -98Kpa, the more negative vacuum degree is higher), easy maintenance: the overall material processing of the rotor arm is strong interchangeability, customers can easily change their own parts, you can also send back to our company to change parts. After replacing the parts, the effect is like a new machine.

Including the packing box: the length is 80CM, the width is 65CM, the height is 87CM, the weight is about 150kg.

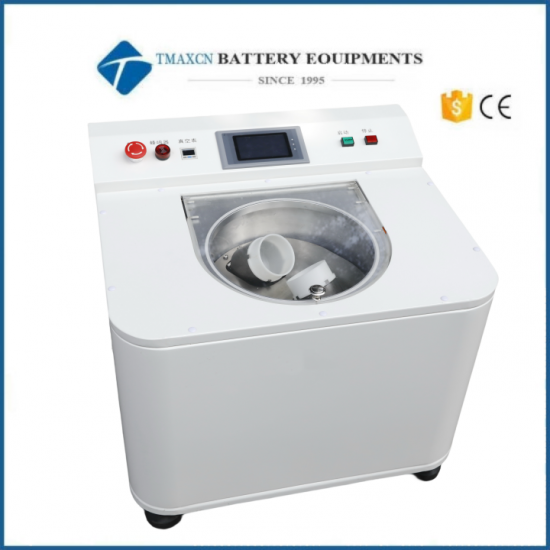

Machine appearance: length is 76CM, width is 56CM, height is 69CM, weight is about 120 kg.

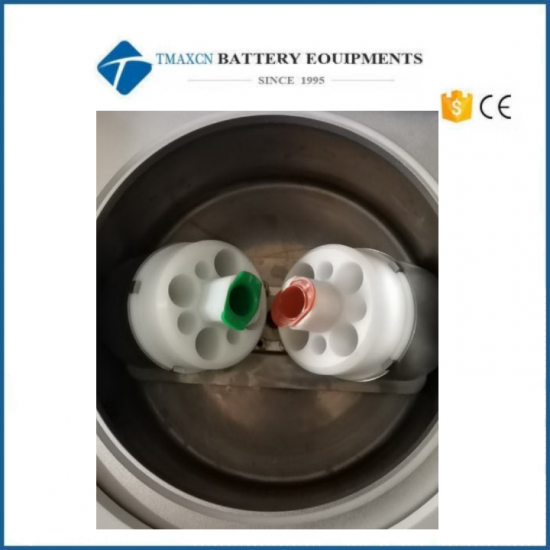

Optional tooling: 1*2 30CC syringes in the center (10CC, 5CC, 3CC syringes through the transfer sleeve), 4*2 10CC, 5CC syringes can be placed around.

List of machines and mixing cups

Mixing material PE+PP

Teflon cups purchased separately

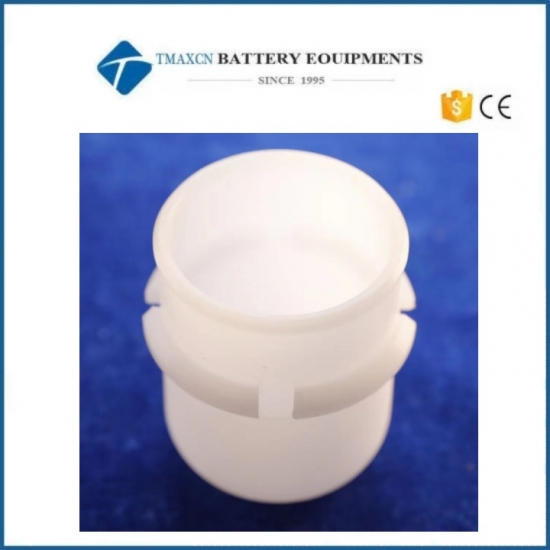

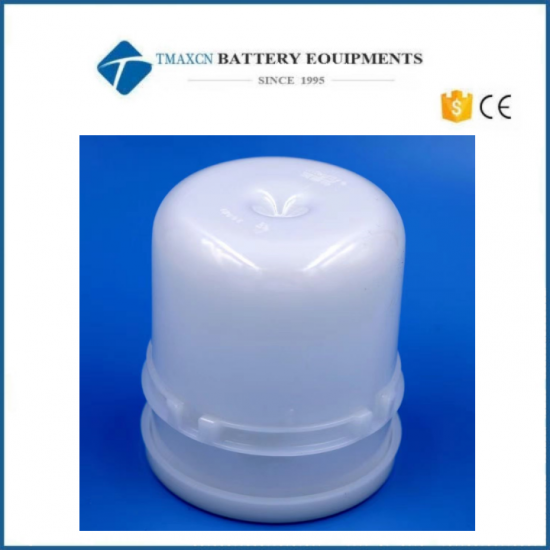

Standard: 300ML cone bottom mixing cup

300ML to 150ML transition sleeve and mixing cup

 300ML to 40ML transition sleeve and mixing cup

Optional accessories

        300ML to 10ML                                    300ML to 5ML

300ML syringe 30CC10CC5CC3CC syringe

 Custom glass beaker or teflon beaker fixture

According to the characteristics of the glass, we have designed safety protection, but the glass is still at risk of cracking.

Disposable plastic cups and fixtures

It can configure 1000 disposable cups and provide purchase website at the same time.

High viscosity 10ML transfer tool

                         50ML10:1                                                    50ML2:1
