Battery Burning Test Machine

Laboratory Battery Burning Tester Machine for Lithium-ion Battery R&D

  • Model Number:

    TMAX-RSSY
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

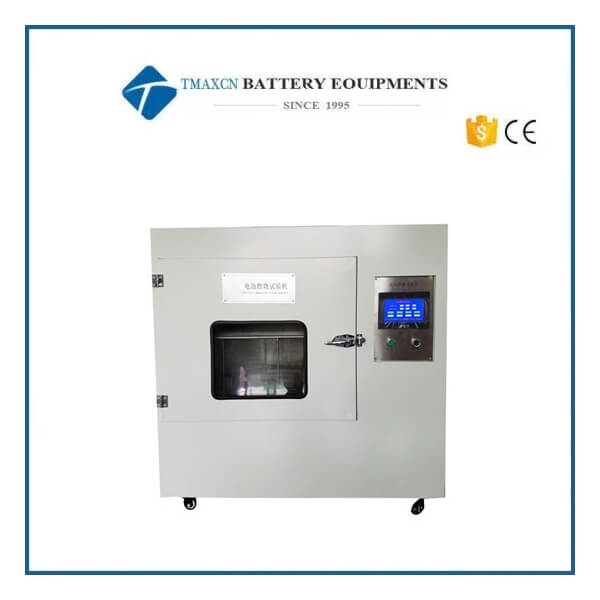

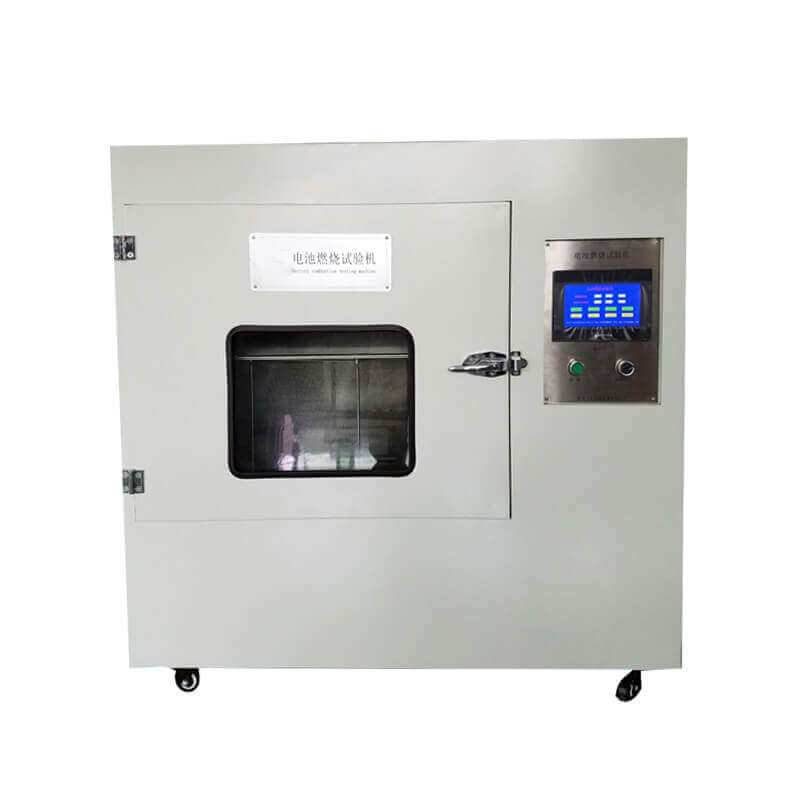

Laboratory Battery Burning Test Machine for Lithium-ion Battery R&D


Introduction

This machine is suitable for battery flame resistance test and is manufactured according to UL2054 and other test standards.



Specification

Burner

Bunsen burner, the inner diameter of the tube mouth is 9.5mm and the length is about 100 mm

Flame application time

0~ 999.9 seconds ± 0.1 seconds

Test hole surface diameter

102mm

Test cover width

24 "(610mm), octagonal

Test cover height

12 "(305mm)

Accessories

Including burner and support frame, test table, standard metal mesh cover, standard metal mesh

Equipment power supply

1φ220V, 50/60HZ, 10A

Other

Automatic ignition, automatic control of the test process.

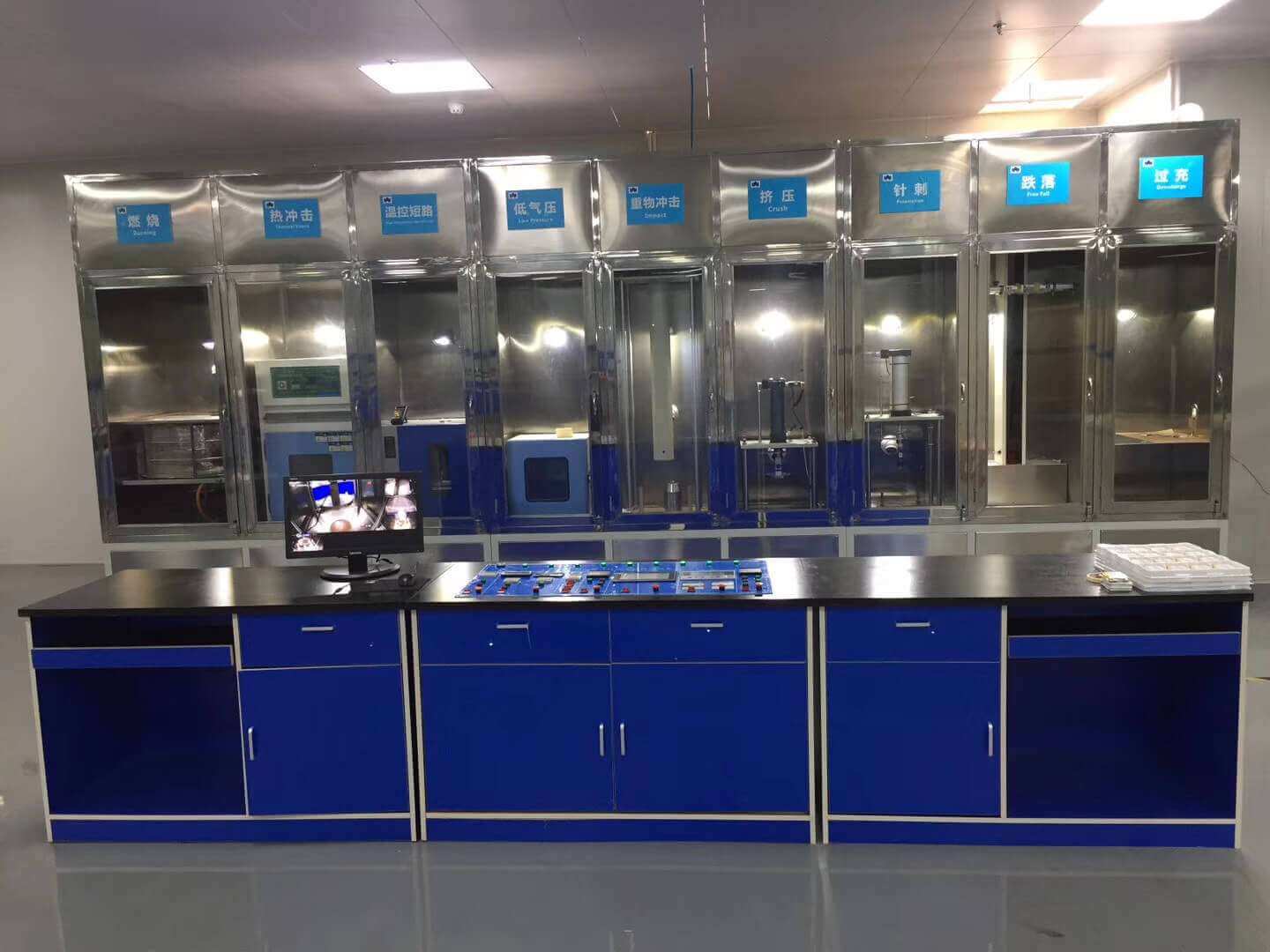

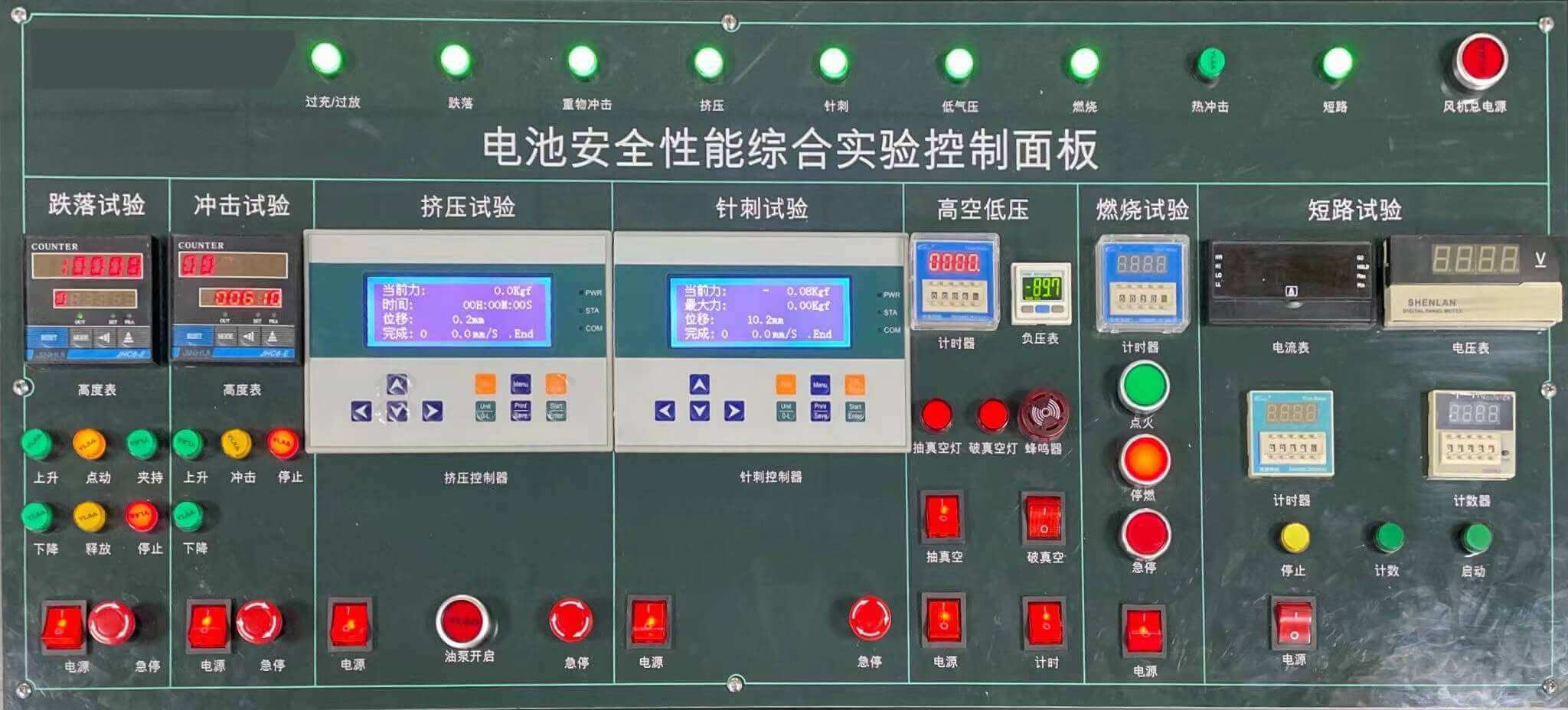

If you customize more than six machines, you can integrate the machines into a comprehensive console
