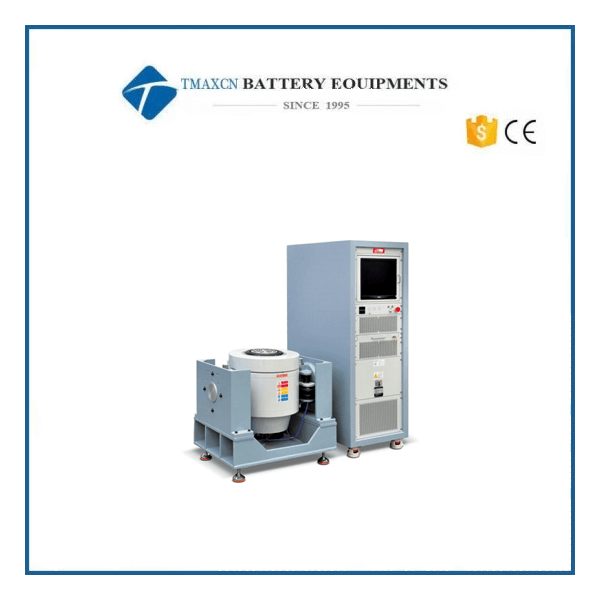

Laboratory Battery Electromagnetic Vibration Tester Machine for Lithium Battery R&D

VG600-51 electromagnetic excitation generator parameters

Maximum sinusoidal excitation force

600Kg.f peak

Maximum random excitation force

600Kg.f r.ms

Maximum shock excitation force

1200Kg.f peak

Frequency Range

1～3000 Hz

Maximum displacement

51 mm p-p

Maximum speed

2m/s

Maximum acceleration

100G(1000 m/s2)

Relationship between maximum load and maximum acceleration: F=M.A sine

5G(50 m/s2)

10G(100 m/s2)

20G(200 m/s2)

30G(300 m/s2)

114Kg

54Kg

24Kg

14Kg

First-order resonant frequency

3200 Hz±5%

Effective load (M1+M2)

300 kg

Vibration isolation frequency

2.5 Hz

Diameter of moving coil

Ф200 mm

Dynamic quality

6kg

Countertop screws

16×M8

Magnetic flux leakage

＜10gauss

Dimension

800mm×600mm×710mm(Vertical stage)

Weight

About 720Kg

SA-6K Digital Switching Power Amplifier

Output Power

6KVA

The output voltage

100V

Output current

60A

Amplifier size

720mm×550mm×1680mm

Amplifier weight

430KG

Servo protection system

Function

Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input missing and equal

Temperature Digital Vibration Controller VCSusb-2

Warm hardware configuration

2 channel input, 1 output channel

Sine, random

Control computer

Original brand computer with 17" LCD monitor, keyboard/optical mouse

Software

Chinese/English operation, time domain and frequency domain analysis, signal source, sine sweep frequency analysis, etc. can be performed. It can automatically generate WORD test report, display, store, set test parameters and analysis functions of signals and data.

Operating system

Win7/8/10

Acceleration sensor LAB

Frequency range: 1—12000Hz

Sensitivity: 30pC/g

Input method: charge type

Acceleration range: ±1500g

Working temperature: -40 – 160℃

VT650 vertical expansion table

Material quality

Aluminum-magnesium alloy, hard anodized surface

Table size

500 mm×500 mm

Fixed hole position

M8 stainless steel threaded sleeve, durable and wear-resistant

Upper limit frequency

Sine 1000 Hz, random 2000 Hz

Weight

25KG

BL-600 cooling fan (including silencer)

Fan power

4 KW

Air volume

1400m3/h

Air duct

φ120mm

Weight

55KG

Electrical requirements

Humidity

0～85% RH (no condensation)

Power supply

3-phase 380V/50Hz 20 KVA

Compressed air

0.6Mpa

Ground resistance

≤4Ω
