Laboratory coater

Laboratory Electric Heat Film Coating Machine for Electrode Coater with Dryer

  • Model Number:

    TMAX-TMH
  • Dimension(L*W*H):

    10 - 250 mm adjustable
  • Net Weight:

    60-80kg
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • Delivery Time:

    5 days
Product Details

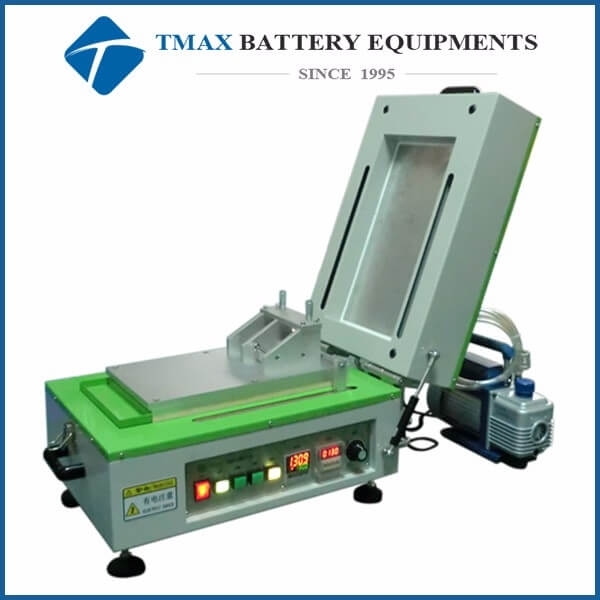

Laboratory Electric Heat Film Coating Machine for Electrode Coater with Dryer

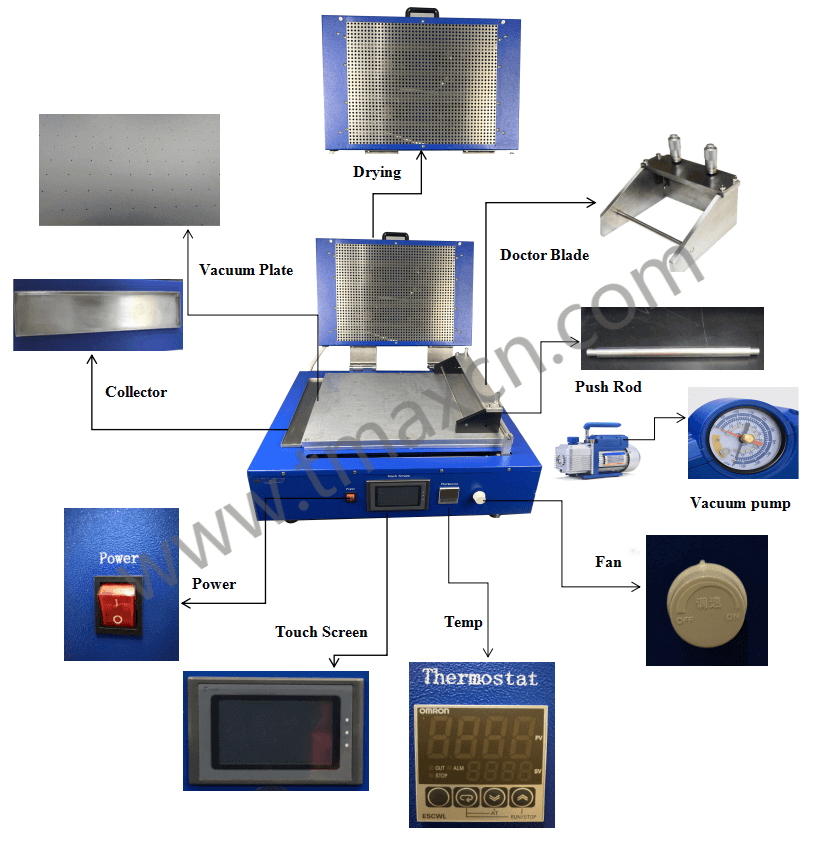

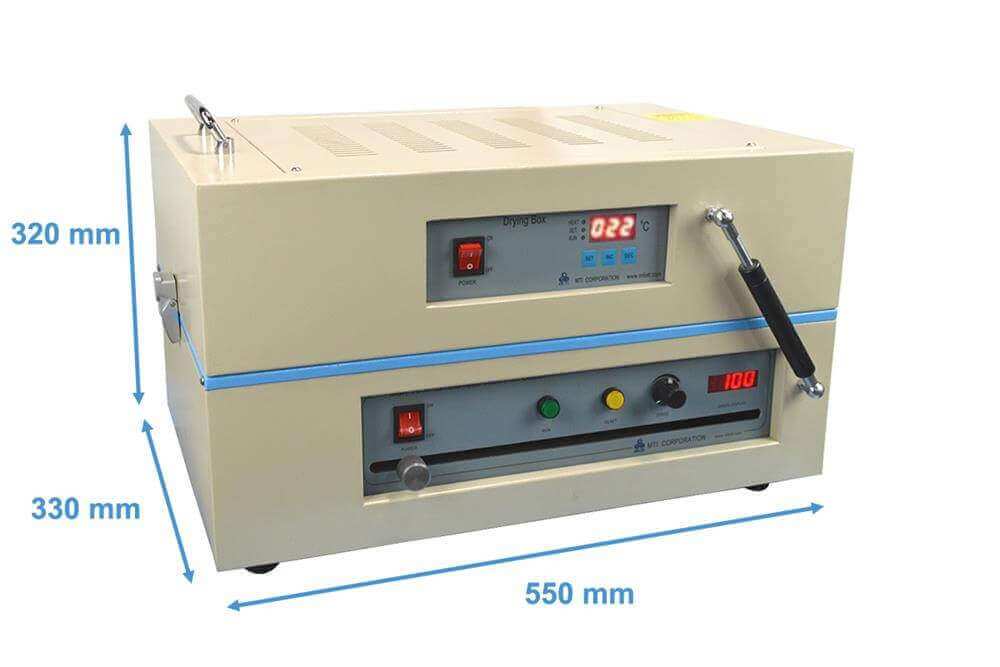

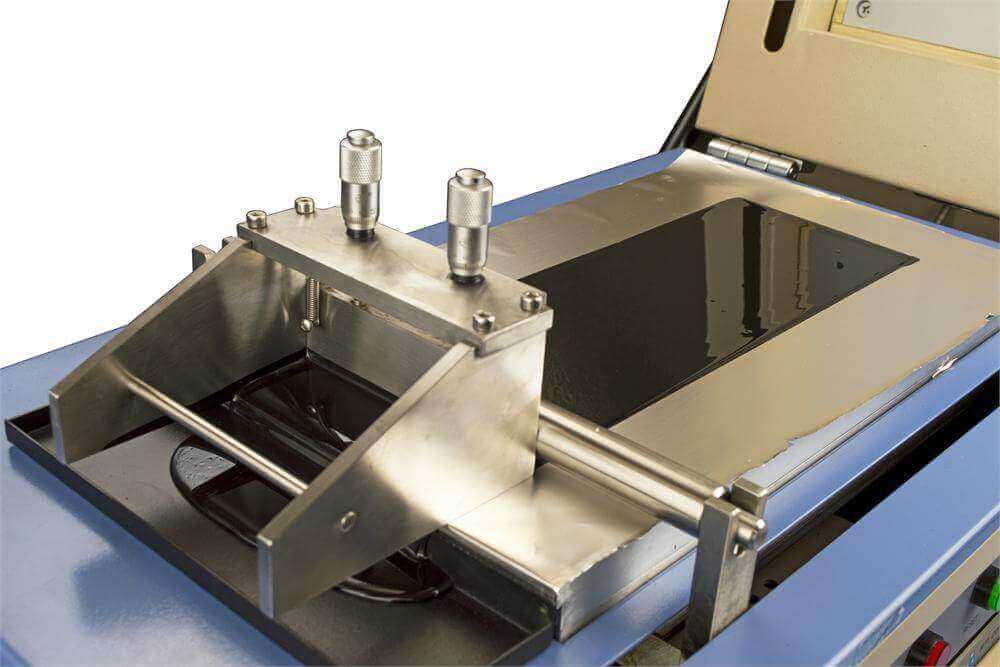

TMAX-TMH250 is a CE Certified compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when making thin coatings. One 100 mm width adjustable micrometer applicator (doctor-blade) and an oilless vacuum pump are included for immediate use.

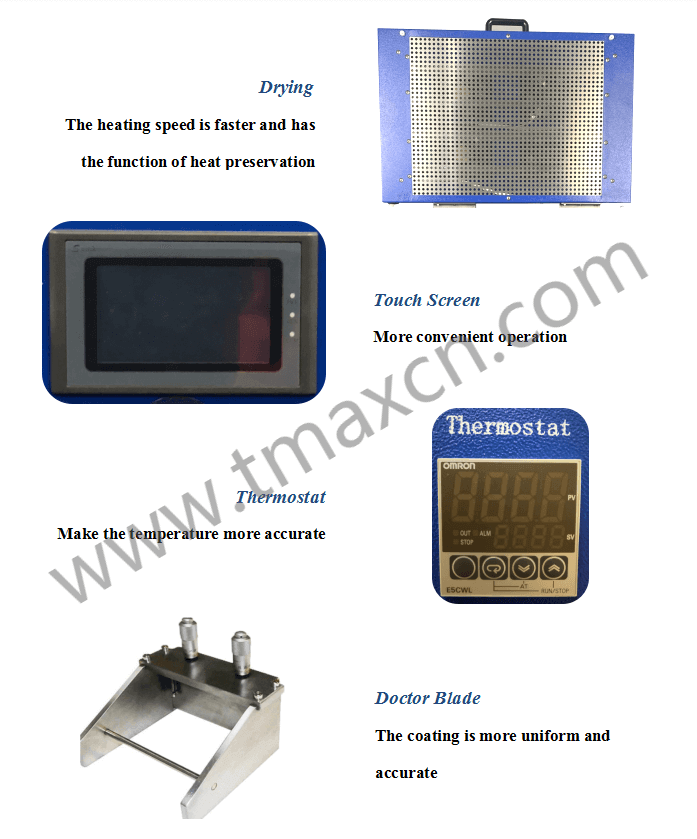

Heating cover with digital temperature controller, can be chosen, it can dry films after coating up to 200°C with a temperature accuracy of +/-1°C.



This equipment can be used for researches on ceramic tape castings and Li-Ion battery electrode coating.

Related products:

UV Curing Machine


SPECIFICATIONS:

Model

TMH800-250

TMH250-100

TMH250-150

TMH250-200

TMH300-250

TMH350-250

TMH550-250

Stroke Length

10 - 800 mm adjustable by using Adjustable Position Switch

10 - 250 mm adjustable by using Adjustable Position Switch

10 - 250 mm adjustable by using Adjustable Position Switch

10 - 250 mm adjustable by using Adjustable Position Switch

10 - 300 mm adjustable by using Adjustable Position Switch

10 - 350 mm adjustable by using Adjustable Position Switch

10 - 550 mm adjustable by using Adjustable Position Switch

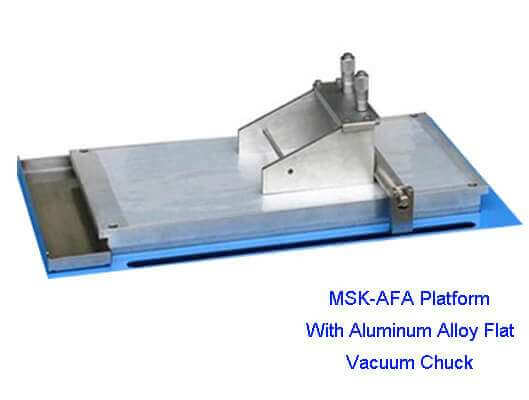

Platform

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 900mm(L) x 250mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 365mm(L) x 100mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 365mm(L) x 150mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 365mm(L) x 200mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 400mm(L) x 250mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 450mm(L) x 250mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 650mm(L) x 250mm(W)

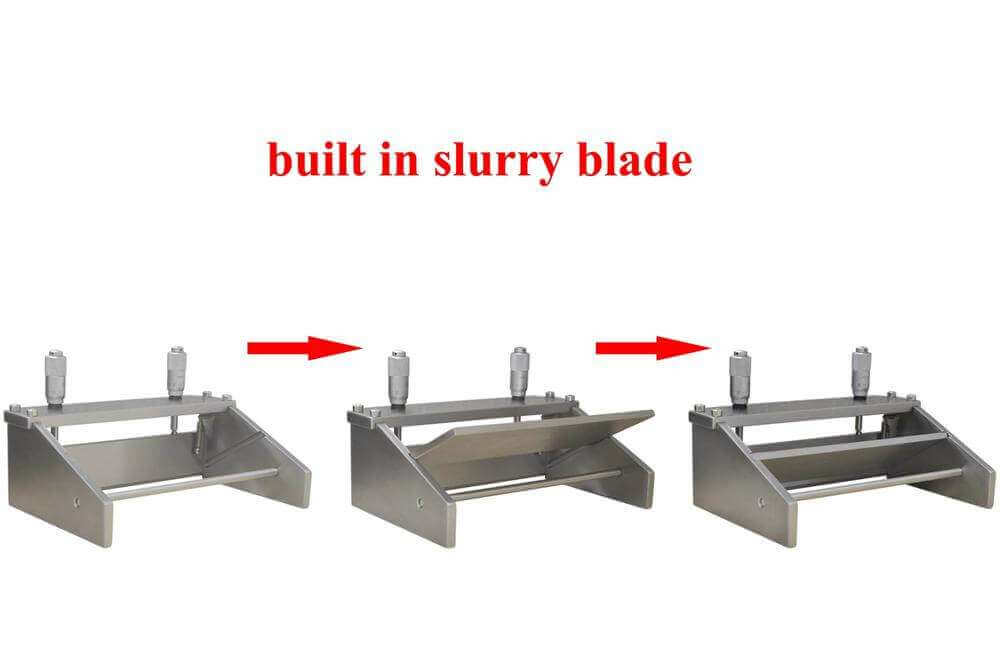

Accessories: Film Applicator

Optional 50 upto 250 mm width micrometer adjustable film applicator is included

Optional Heating Cover Voltage and Power

110VAC or 220VAC

Traverse Speed

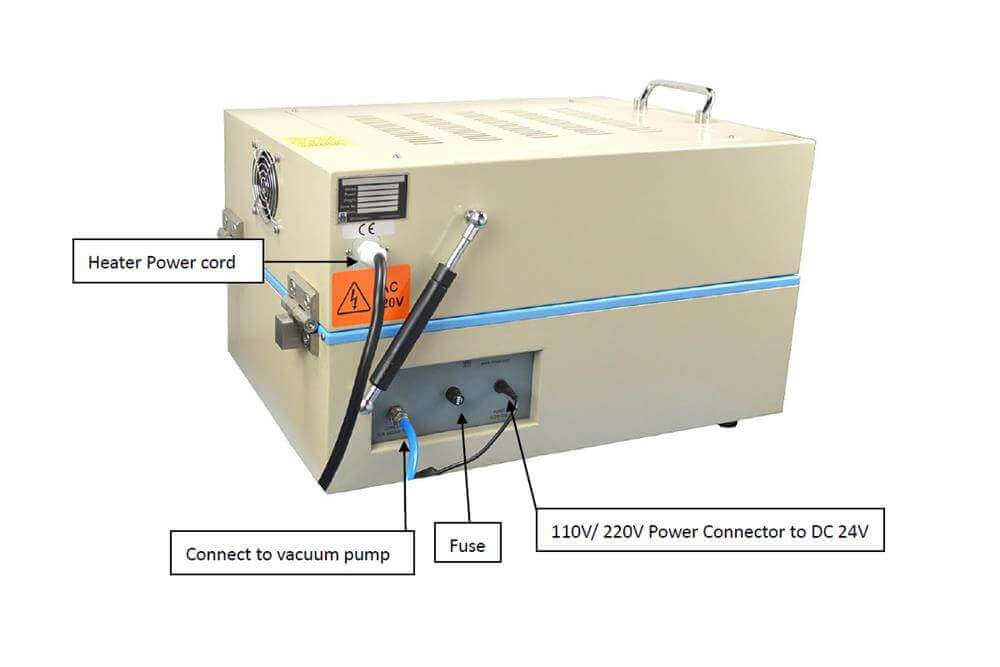

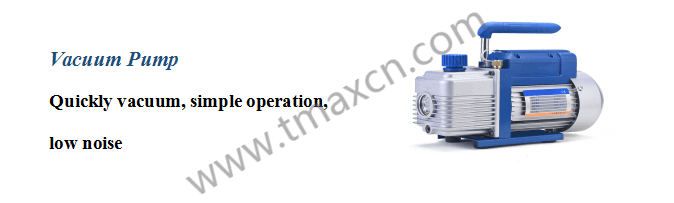

Vacuum Pump

Vacuum pump is included

Heating Cover

1. Pre-installed on the top cover
2. Built in digital temperature controller with accuracy of +/-1°C
3. Suspension support helps open cover easily and safely
4. Max. Heating Temp.: 200°C

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

battery coater

battery coater

Electrode Coater

Electrode Coater

Electrode Coater

 Electrode Coater

Electrode Coater

Electrode Coater

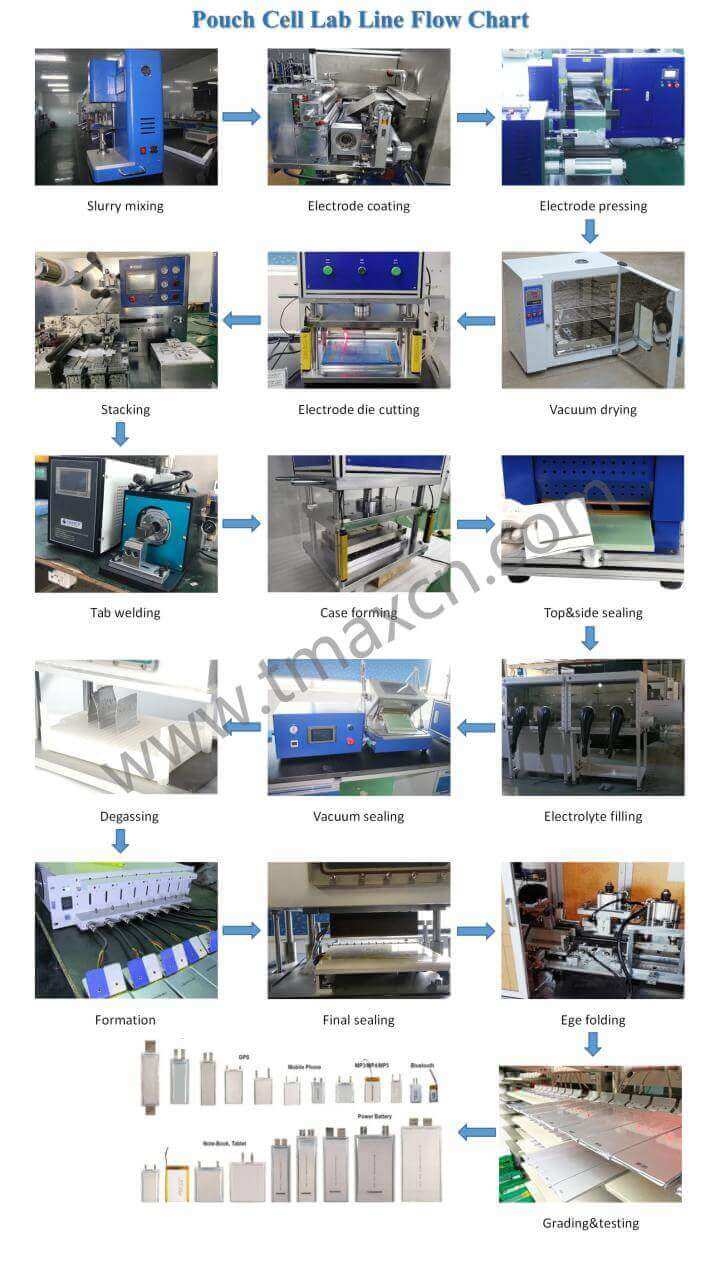

 Pouch Cell Assembly
