Electrode Stacking Machine

Laboratory Solid State Battery Semi-Auto Stacking Machine

  • Model Number:

    TMAX-BDP200-C

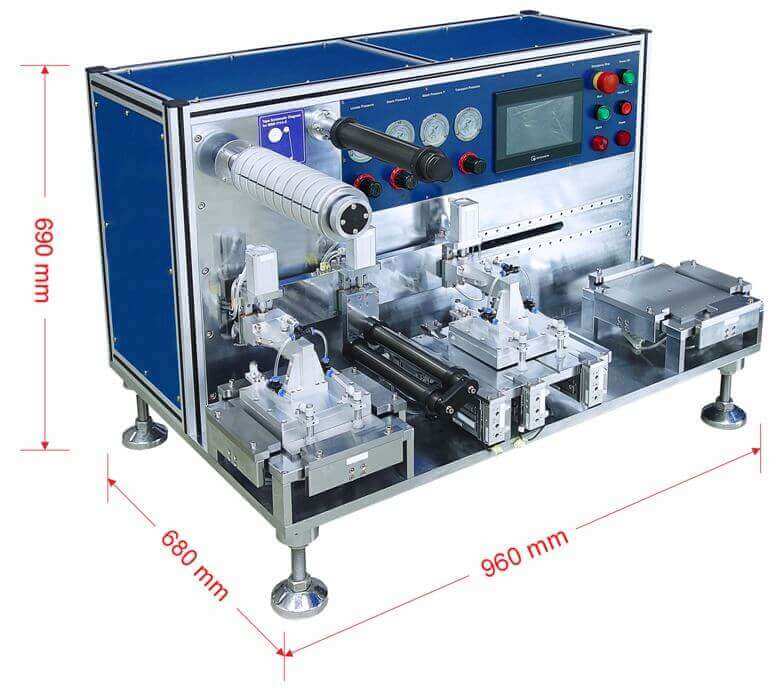

  • Dimension(L*W*H):

    L960mm*W680mm*H690mm
  • Net Weight:

    400 kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty with lifetime support
  • Delivery Time:

    45 days
Product Details

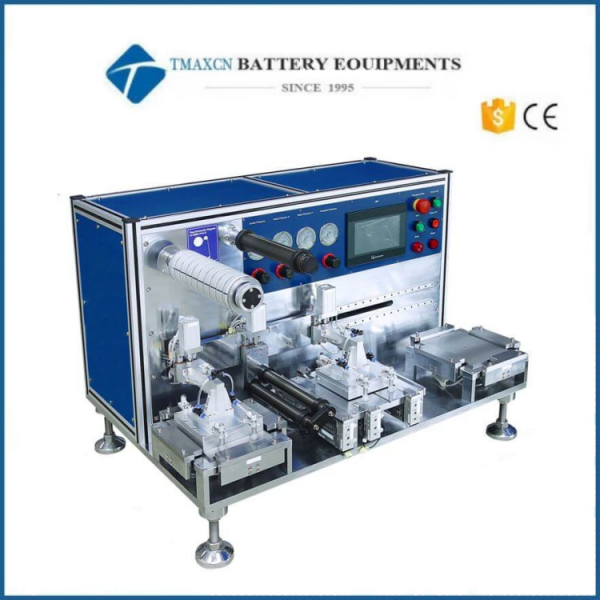

Laboratory Solid State Battery Semi-Auto Stacking Machine


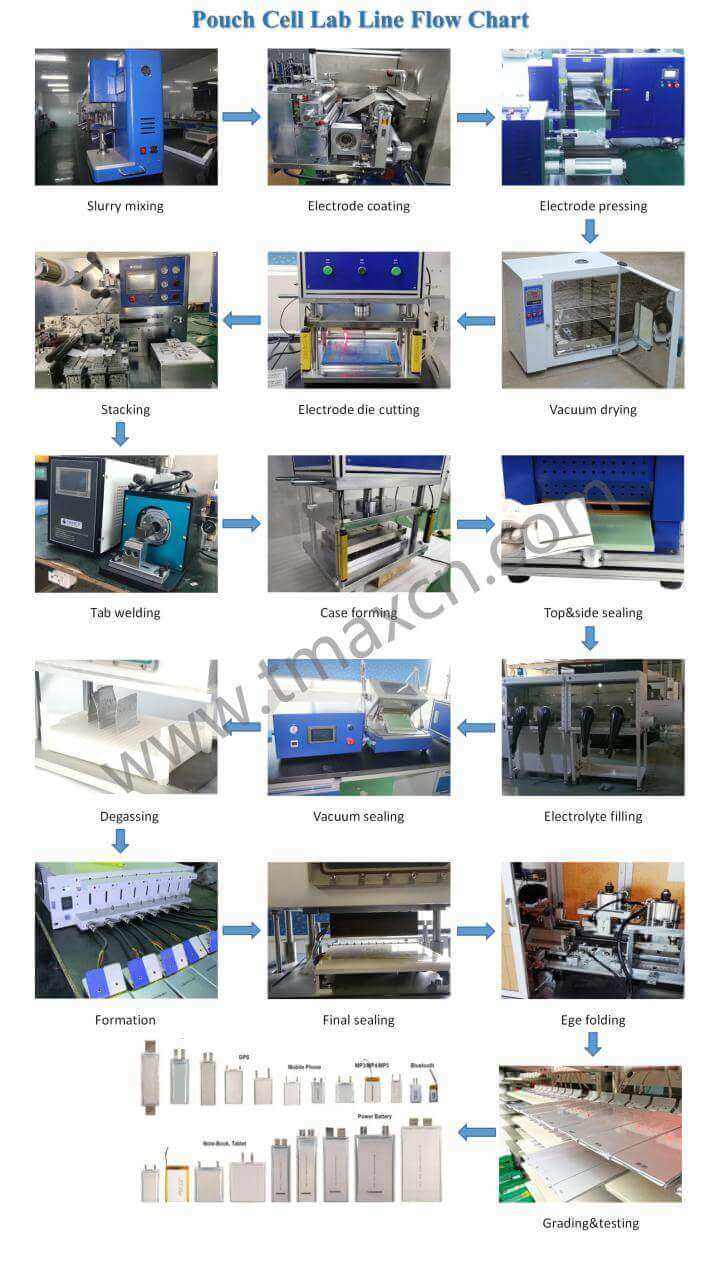

Ⅰ、Introduction:

The Solid State Battery Stacking Machine is suitable for Solid State Battery electrode stacking process.

The equipment realizes manual loading, subsequent electrode position correction and lamination. The stacking process is completed automatically. It has the characteristics of high stacking efficiency and high precision. Different electrode sizes can be realized by adjusting the fixture. It is very suitable for the R&D and sample production of stacking type lithium-ion battery. The equipment adopts single cantilever structure design, separator automatic constant tension control and automatic correction control.



Ⅱ、Main Features:

*The number of stacking layer can be automatically controlled according to the preset;

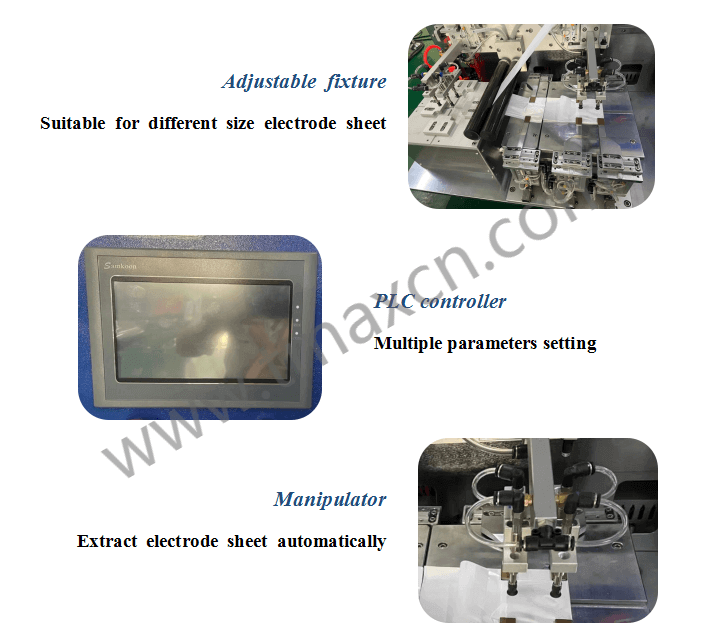

*The compatibility design is adopted, and the change of battery size can be realized by adjusting the positioning fixture, with a large adjustment range;

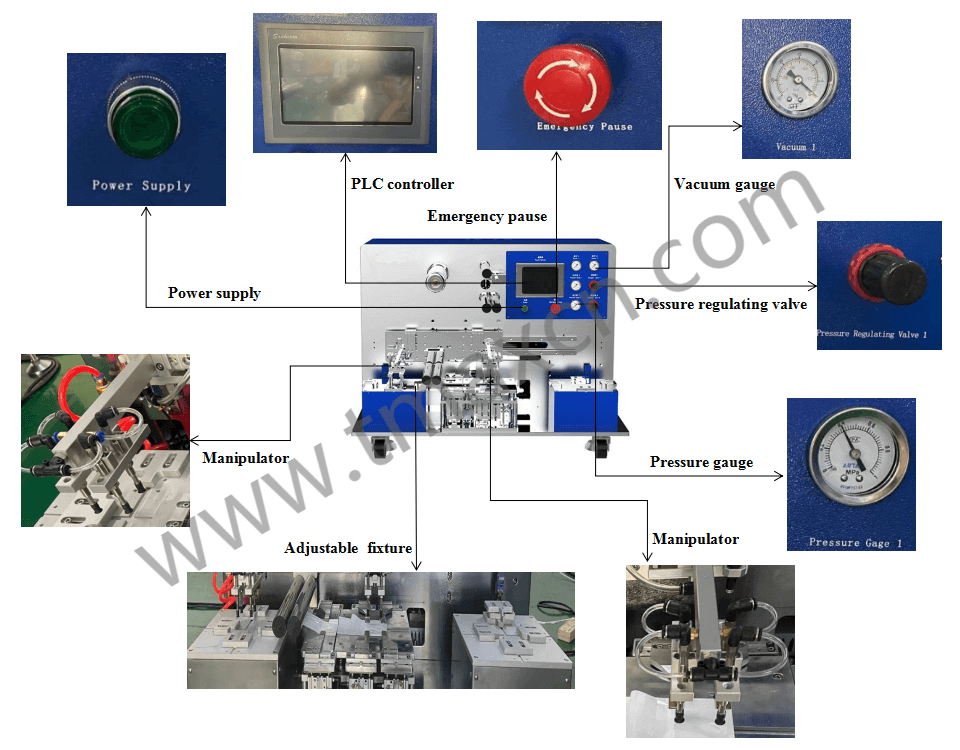

*PLC control, HMI operation, easy to use and maintain;

*Electrode manual loading, automatic positioning, manipulator automatic suction and automatic stacking;

*Separator automatic servo constant tension control.

*Separator automatic photoelectric correction control.


Ⅲ、Technical parameters

Working Voltage

AC220V/110V, 50/60Hz

Power

0.6kw

Stacking mode

Z fashion

Operation mode

Manual feeding, manipulator picking up electrodes automatically, automatic separator pulling

Stacking accuracy

≤±0.3mm

Stacking size range

Min.L40mm *W40mm, Max. L200mm*W200mm(standard)

Larger compatible size is available upon request at extra cost

Stacking thickness

Max.30mm

Number of stacking

Max. 100 layers adjustable

Separator coil diameter

Max. 500mm

Separator core

3-inch roll core, air expansion shaft clamping

Tension control

Automatic servo constant tension control

Separator correction

Automatic photoelectric correction control

Machine dimensions

L960mm*W680mm*H690mm

weight

About 400Kg

Gas source

0.5~0.8MPa compressed air
