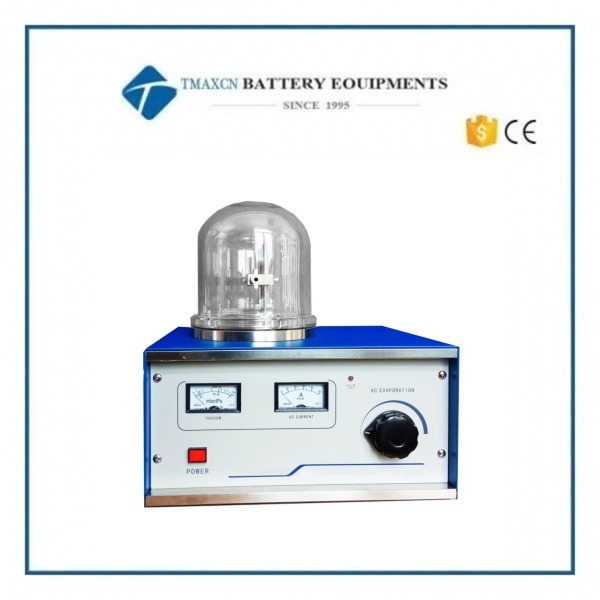

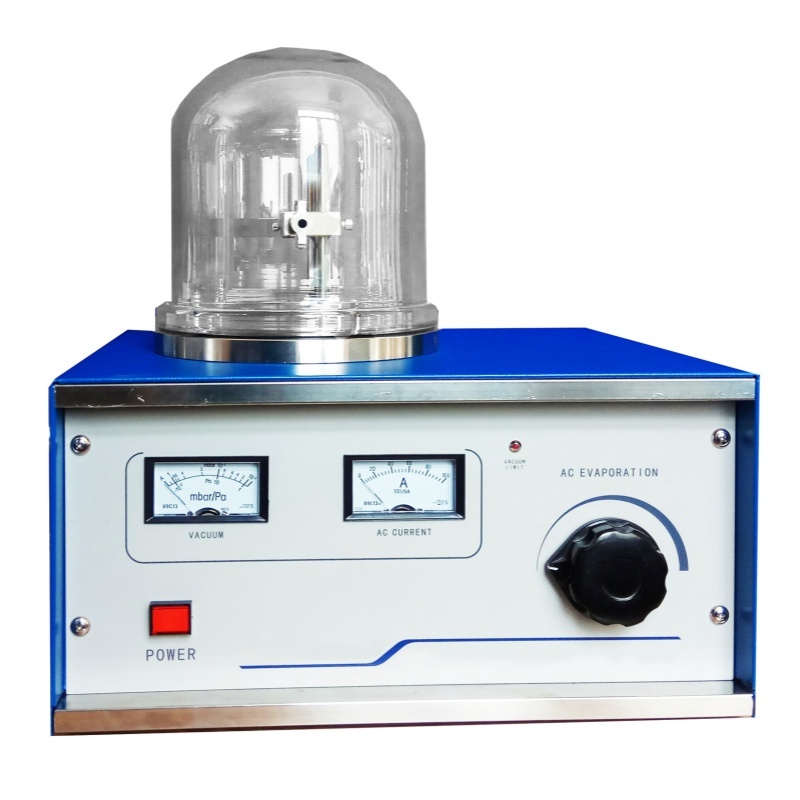

Manual Thermal Evaporation Evaporator Machine For Carbon, Ag, Cu Deposition



 TMAX-BY-ZD07-Manual Thermal Evaporation For TEM&SEM

---

Key Features & Applications

The TMAX-BY-ZD07 Thermal Evaporation Coater employs a heating process to evaporate coating materials, which then deposit onto substrates to form thin films. Designed for electron-beam-sensitive and non-conductive samples, it is ideal for protective coating and SEM sample preparation to enhance imaging quality and mitigate charging effects.

---

Technical Parameters

Parameter	Specification
Target Material	Carbon Rod
Control Mode	Manual
Chamber Dimensions (D×H)	170 mm × 200 mm
Sample Stage Diameter	170 mm
Sputtering Gas	Vacuum
Evaporation Current	Max: 100 A; Operating: 0–80 A
Operating Vacuum	2×10⁻² mbar
Working Voltage	220 V, 50 Hz
Pump	High-performance Leap Pump (2 L)

---

Core Advantages

1. Efficient Deposition – Rapid thermal evaporation process ensures quick film formation.

2. Versatile Applications – Compatible with:

·Electron-beam-sensitive samples (e.g., biological, polymeric materials) to prevent structural damage.

·Non-conductive samples – Eliminates charging effects in SEM by providing a conductive metal layer.

·New materials research – Facilitates electrode fabrication for conductivity studies.

3. Compact & Reliable – Features a high-quality vacuum pump and user-friendly manual operation.

Ideal For

· SEM sample preparation (metal coating for improved signal-to-noise ratio).

· Protective coating for delicate materials.

· Experimental studies on conductive properties of novel materials.
